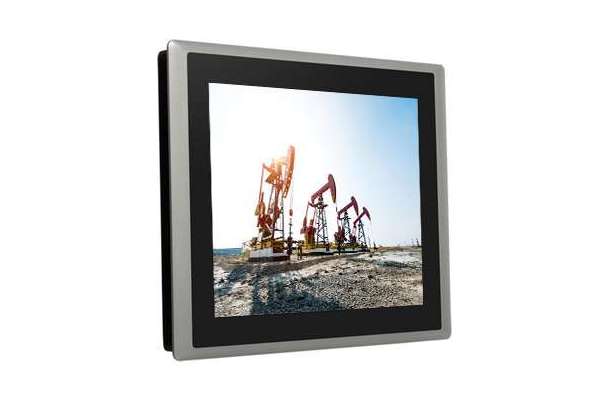

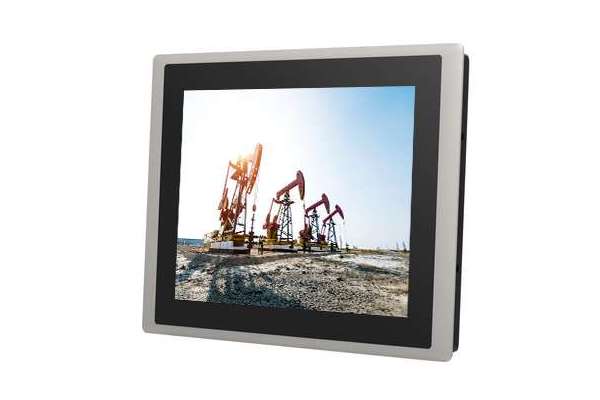

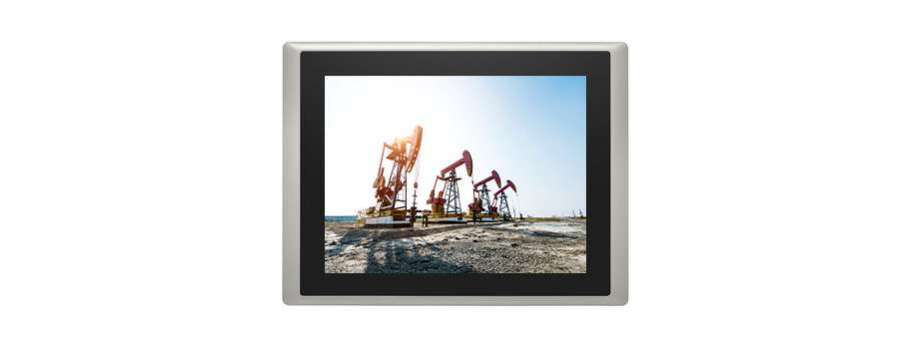

Sunlight Readable Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Cincoze CS-112H/M1101
The Cincoze CS-100/M1101 series sunlight-readable industrial touch monitors are specifically designed for outdoor applications. The highest brightness is 1,800 nits and there is a selection of screen sizes, ratios, and brightnesses. The CS-100/M1101 is the best choice for outdoor kiosk displays and HMI applications because it is rugged and enables easy on-site maintenance. A variety of input interfaces are supported, including HDMI and DisplayPort digital inputs, and VGA analog input. The monitor has a multi-language OSD and supports multiple installation methods, including panel, VESA, and rack mount, to cater to the varied deployment requirements of different outdoor application scenarios.
- 12.1” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
- Designed with Aluminum Die-Casting Front Frame
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Convertible Display System (CDS) Supported
- True Flat IP65 Front Panel Protection
- Support Panel / VESA / Rack Mount
Additional information
Display |
|
| LCD Size |
12.1" (4:3)
|
| Max. Resolution |
1024 x 768 (XGA)
|
| Brightness (cd/m2) |
1500
|
| Contrast Ratio |
700 : 1
|
| LCD Color |
16.7M
|
| Pixel Pitch (mm) |
0.24 (H) x 0.24 (V)
|
| Viewing Angle (H-V) |
160 / 140
|
| Backlight LED Life Time |
50,000 hrs (LED Backlight)
|
Touch Screen |
|
| Touch Type |
Projected Capacitive
|
| Wet Touch Tracking |
v
|
Physical |
|
| Dimension ( W x D x H ) |
345 x 265.3 x 57 mm
|
| Weight Information |
3.16 kg
|
| Mechanical Construction |
Flat Rugged Aluminum Die-casting Bezel
|
Power |
|
| Power Consumption |
16.22W (Typ.)
|
Environment |
|
| Front Panel Protection |
IP 65 Compliant
|
| Operating Temperature |
-20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow)
|
| Storage Temperature |
-30°C to 80°C (-22°F to 176°F)
|
| Relative Humidity |
90% RH @ 40°C (Non-condensing)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
Graphics |
|
| HDMI-in |
1x HDMI Connector (1920 x 1080 @60Hz)
|
| DP-in |
1x DisplayPort Connector (1920 x 1080 @60Hz)
|
| VGA-in |
1x VGA Connector (1920 x 1080 @60Hz)
|
Audio |
|
| Audio input |
1x Audio Line in, Phone Jack 3.5mm
|
I/O |
|
| COM |
1x RS-232, DB9
|
| USB |
1x 480Mbps USB 2.0, Type A
|
Other Function |
|
| OSD Button |
Menu, Auto, LCD On/Off, Brightness Up, Brightness Down
|
| Internal Speaker |
AMP 2W + 2W
|
| Status LED Indicator |
Power LED, Standby LED
|
Power |
|
| Power Input |
9 - 48VDC, 3-pin Terminal Block
|
Physical |
|
| Dimension ( W x D x H ) |
204.5 x 149 x 38.5 mm
|
| Weight Information |
1.2 kg
|
| Mechanical Construction |

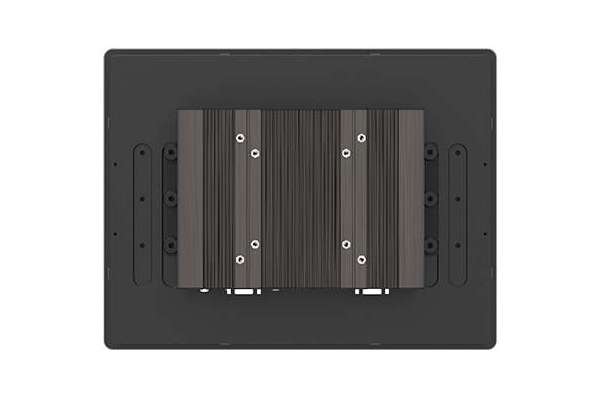

Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
VESA / CDS Mounting
|
| Physical Design |
|
Environment |
|
| Operating Temperature |
20°C to 70°C
* Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
|
| Storage Temperature |
-20°C to 75°C
|
| Relative Humidity |
95%RH @ 70°C (non-Condensing)
|
| Shock |
Operating, 15 Grms (according to IEC60068-2-27)
|
| Vibration |
|
| EMC |
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
