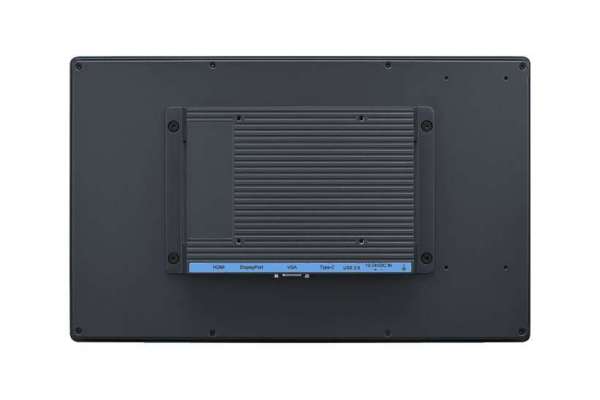

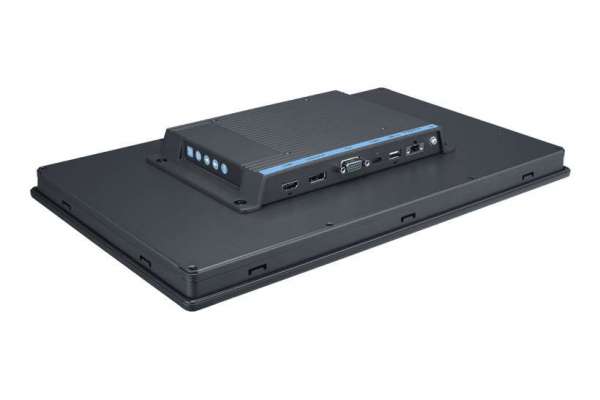

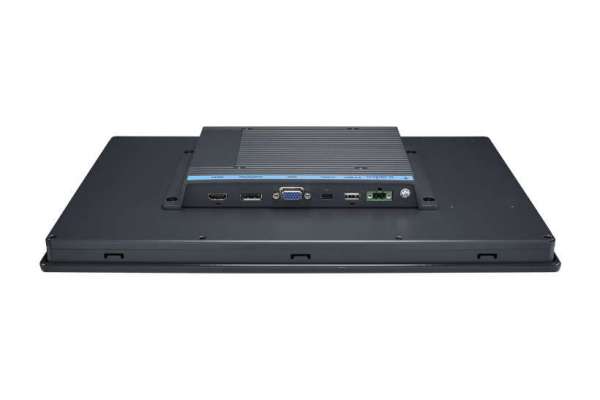

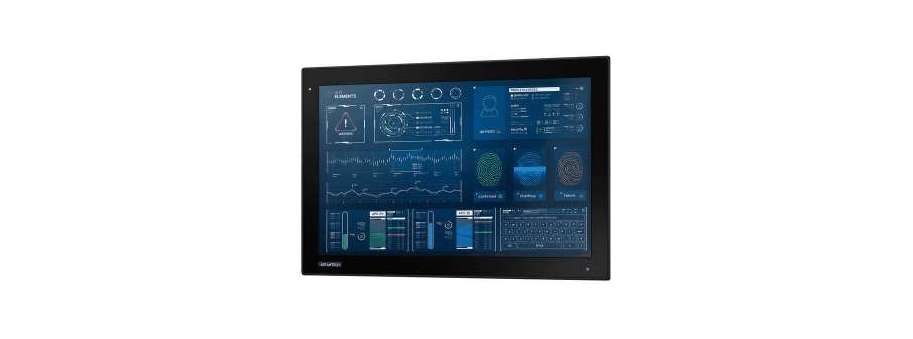

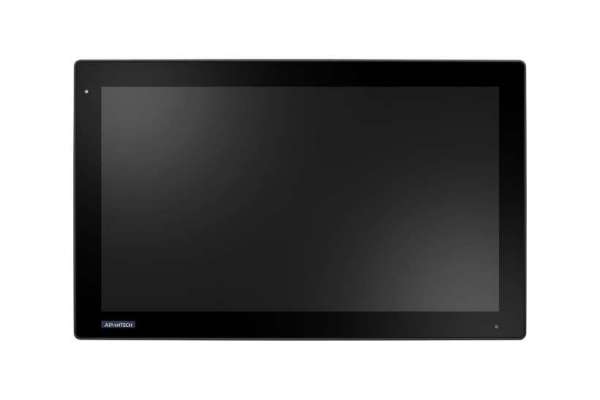

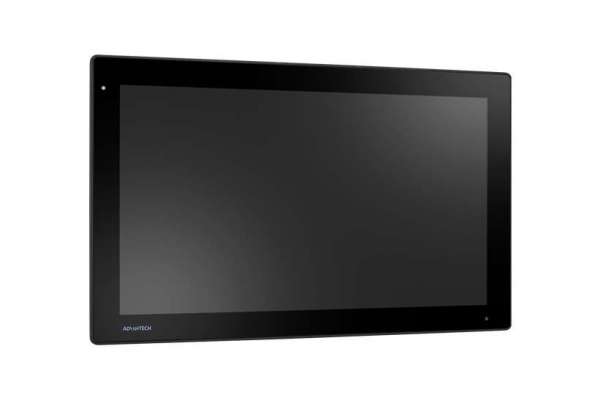

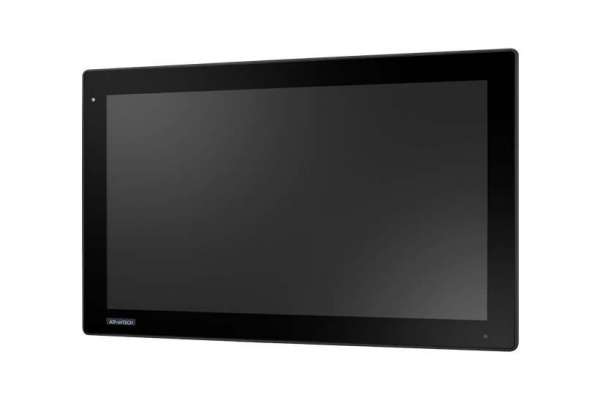

Display with P-CAP touchscreen, IP66-rated aluminum bezel, 1,200 cd/m² high brightness, and auto-dimming mode Advantech FPM-315SW
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| FPM-315SW-P5AE | Промисловий дисплей Advantech FPM-315SW, 15.6" WXGA (1920 x 1080) Ind. Monitor, 1200nit, w/ PCAP touch, HDMI, DP, VGA, and Type-C, 12-24VDC, -20~70°C | 88 970,1 |
- 15.6"/21.5" Full HD Anti-UV featured high brightness monitor
- 16:9 wide screen aspect ratio, increases viewing area by 40%
- Supports multi-touch control in Windows 7/8/10/11 OS
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Supports various mount options: panel, desktop, and VESA mounting
- First single cable Ind. Touch Monitor with high brightness
- Innovative auto-dimming mode that automatically adjusts brightness based on ambient light detection.
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The PM-315SW/FPM-321SW are industrial-grade, widescreen monitor with sleek, simple lines anti-UV coating touchscreen. Equipped with P-CAP multi-touch control and an IP66-rated front bezel, PM-315SW/FPM-321SW series is specifically designed for industrial applications. FPM-315SW is first use type-C one single cable Ind. high brightness Touch Monitor. Moreover, PM-315SW/FPM-321SW support various mount options to make these monitors ideal for factory and machine automation display applications.
Additional information
General |
|
| Certification | BSMI, CCC, CE, FCC Class A, UL, CB |
| Dimensions (W x H x D) |
|
| Enclosure |
|
| Mount | Options Stand, Wall, Panel and VESA arm (100 x 100mm) |
| Power Input | Terminal Block: 12-24VDC, 5-2.5A input |
| Video Port | HDMI, DP, VGA, and Type-C |
| USB | Rear I/O USB2.0 |
| Weight (Net) |
|
LCD Display |
|
| Display Type | Full HD TFT LED LCD |
| Display Size |
|
| Max. Resolution | 1920 x 1080 |
| Max. Color | 16.7M |
| Viewing Angle (H/V)° | 178/178 |
| Luminance (cd/m2 ) |
|
| Backlight Life (hrs) | 50,000 |
| Contrast Ratio |
|
Touchscreen |
|
| Type | P-CAP |
| Interface | USB Type C |
| OS Support | Windows® 7, 8, 10,11, Linux (kernel after 3.13) |
| Hardness | >6 Mohs |
| Multi Touch | 10 points, USB interface in Win7/8/10/11, Linux (kernel after 3.13) |
Environment |
|
| Operating Temperature | -20~70°C (-4 ~ 158 °F) |
| Storage Temperature | -30 ~ 80 °C ( -22 ~ 176 °F) |
| Relative Humidity | Operating, 95% RH @ 40 °C, Non-Condensing Non-Operating, 95% RH @ 60 °C, Non-Condensing |
| Waterproof | Front Panel IP66 Compliant |
| Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) |
| Impact Resistance | IK08 |
| Power Consumption |
|
