Capacity Touch
IP65
Screen Size 15"
Standard T range

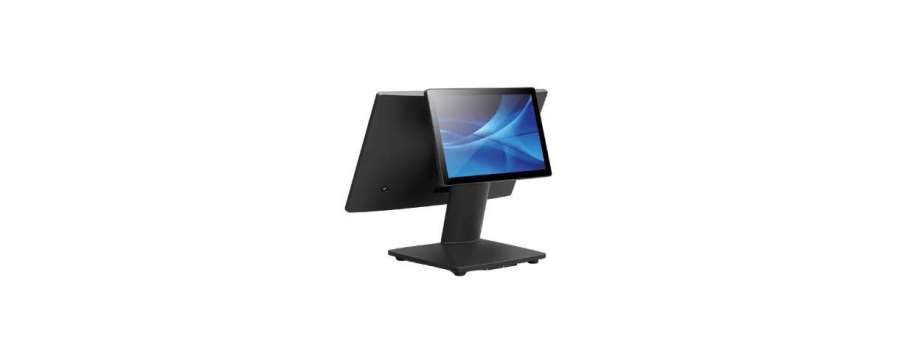

Ultra-slim PC featuring Intel® Core™ N-Series performance with efficient power consumption for modern POS applications Advantech USC-360
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| USC-360NP-BN155 | 15.6",N150,8G,128G,WIFI,W/Stand,Black | 81 116,2 | |
| USC-360NP-BI355 | 15.6",N355,8G,128G,WIFI,W/Stand,Black | 93 288,3 |
- 15.6" FHD LCD (LED backlight) with PCAP Touch
- Sleek modern designed with compact single hinge stand
- Built-in Intel Twin Lake N series processor
- Rich peripherals for diverse applications
- Flexible installation for 2nd display
- Integrate multifunction via USB-C (video, audio, etc.)

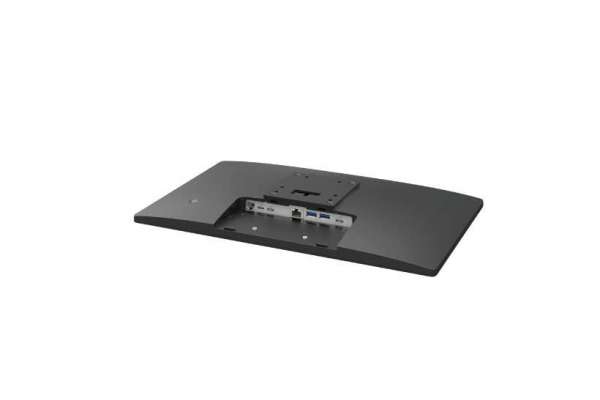

- Support 75x75mm VESA

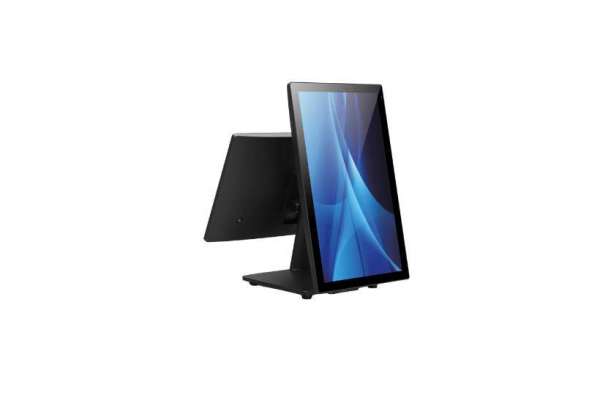

- Supports both landscape and portrait screen orientations
- Equipped with DeviceOn / iService software for remote device management
Additional information
| Model | USC-360N |
| Processor | Intel Twin lake N155/Core 3 N355 |
| Memory | 1 x 260-pin SODIMM DDR5-4800 (Up to 16GB) |
| Storage | 1 x M.2 M-Key 2280 SSD |
| Display | 15.6" TFT LCD (1920*1080), 220nits (350nits optional) |
| Touch screen | Projected capacitive (P-CAP) touch control (Flat glass) |
| USB | 3 x USB-C, 2 x USB 3.0, 4 x USB 2.0 (2*side) |
| Audio | 2 x 2W speaker installed |
| Power supply | 65W via power adaptor |
| Bus Expansion | 1 x M.2 2230 E-Key for Wi-Fi&BT combo |
| Ethernet | 1 x RJ-45 2.5G LAN Ethernet |
| Operation System | Windows 10/11, Linux |
| Cash Drawer | 1 x Cash drawer port, 12V |
| USB-C Input | 20 VDC |
| IP rating | IP65 for front panel |
| Dimensions(WxHxD) | 381 x 230.4 x 31.5 mm |
| Weight | 4.2Kg (Net); 4.8Kg (Gross) |
| Color | Black (White optional) |
| TPM | Support TPM 2.0 |
| Operating Temperature | 0~40°C/32~104°F |
| Storage Temperature | -40°C, 60°C @95% humidity |
| Relative Humidity | 95% RH Max @40°C non-condensing |
| Shock | 10G peak acceleration (11 ms duration) |
| Vibration | 5~500 Hz 0.5 Grms, random |
| Certification | FCC, CE, CE RED, CCC, BSMI, UL, CB |
