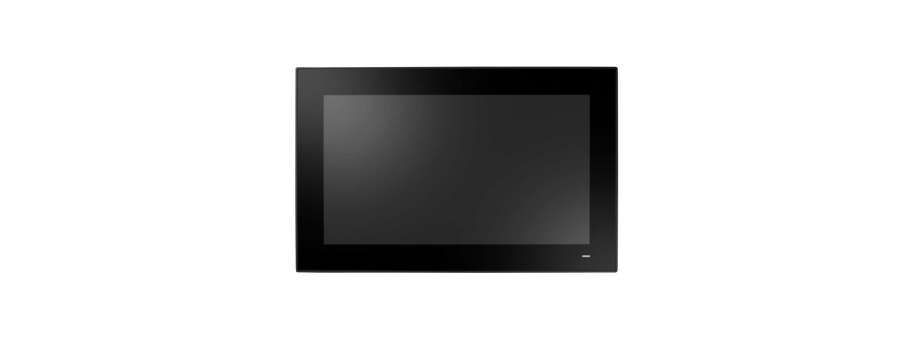

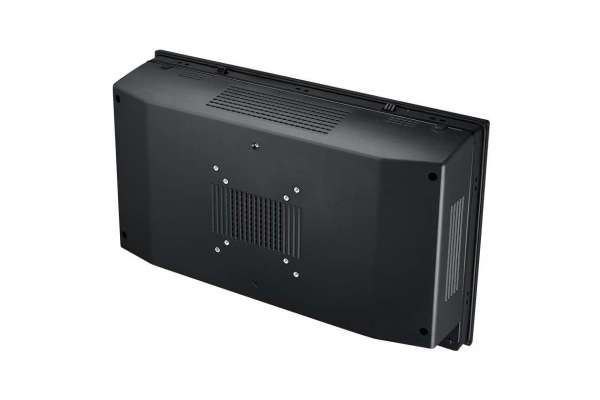

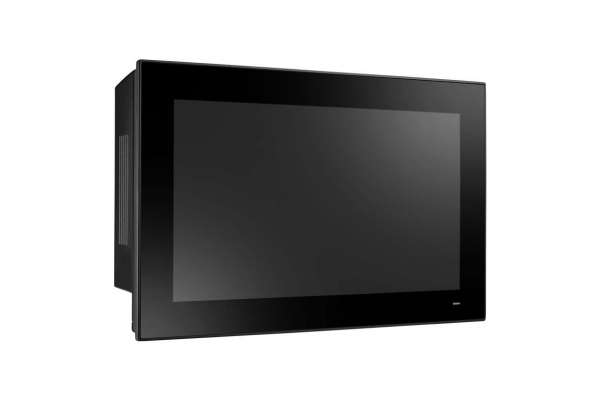

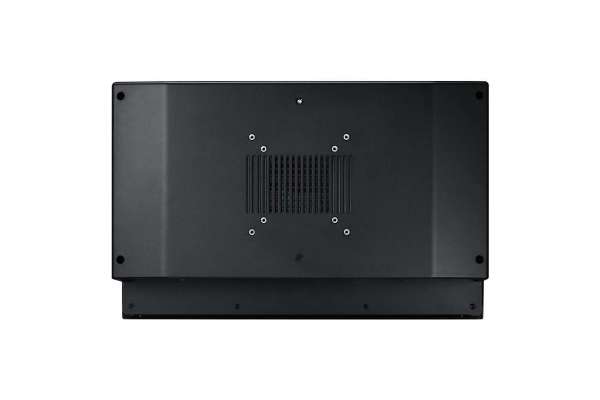

15.6" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards Advantech PPC-615W

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

The PPC-615W, a panel PC chassis with a 15.6" TFT full HD LCD 1920 x 1080 resolution, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern.

  • 15.6" true-flat panel PC with multi-touch projected capacitive
  • Supports certified mini-ITX motherboards (up to 65W TDP processor)
  • PCI or PCIe expansion slots
  • Front-facing power status LED indicators
  • IP66-rated front pane

Additional information

Supported Motherboard

 PPC-MB series

Chassis
Storage 1 x 2.5" SATA HDD bay /2 x 2.5" SATA HDD bay (optional)

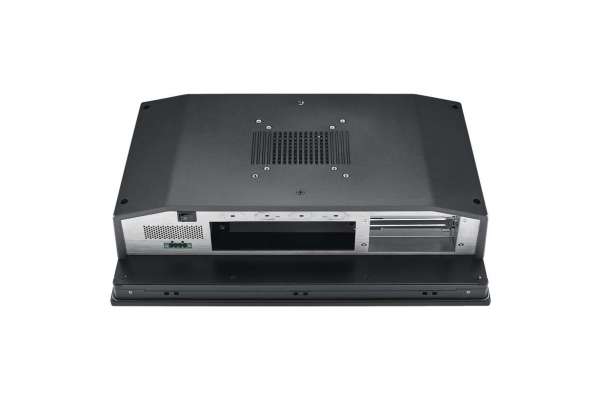

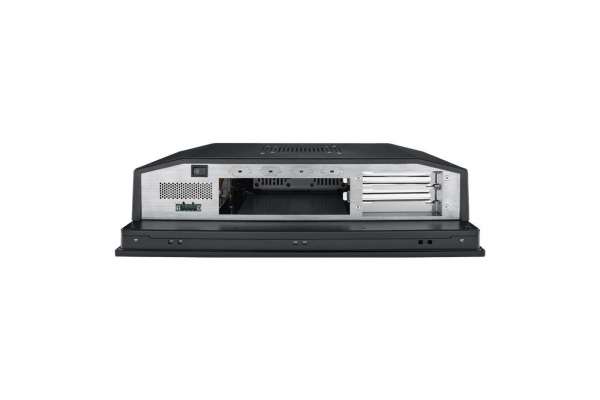

I/O
  • 4 x Reserved ports (DB9)
  • 2 x WLAN antenna holes
  • 1 x DC-In
  • 1 x Power switch
  • Reserved opening: According to the PPC-MB series motherboard specifications
Expansion
  • 1 x PCIe x4 or 2 x PCI (in the accessory box),
  • 2 x PCIe x1 (optional),
  • 1 x PCIe x1 + 1 x PCI (optional)
  • 2 x PCIe x8 (optional, only for PPC-MB-6X0)
  • 1 x PCIe x16 (optional,only for PPC-MB-6X0)
Speaker 2 x 1 W
Fan 2 x 12V; 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in)

Physical Characteristics
Dimensions (W x H x D) 419 x 269 x 108.2 mm (16.5" x 10.6" x 4.2")
Weight 6.1kg (13.45Ib)

OS Support
OS Support According to motherboard specifications

Power Consumption
Input Voltage 24VDC ±20%, 12A
Power Consumption
  • 124W with PPC-MB-8260
  • 166W with PPC-MB-610
  • 140W with PPC-MB-620

LCD
Display Type 15.6" TFT LED panel
Max. Resolution 1920 x 1080
Viewing Angle 85 (left), 85 (right), 85 (up), 85 (down)
Luminance (cd/m2 ) 450
Contrast Ratio 1000
Backlight Lifetime 50,000 hr

Touchscreen
Touch Type 10-point multi-touch projected capacitive
Light Transmission ≥ 88%
Controller USB interface

Environment

Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU)
  • 0 ~ 45 °C (32 ~ 113 °F)(With 65W CPU)
  • *** please refer to the PPC-MB series CPU list

Storage Temperature

 -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with SSD, IEC 60068-2-64 compliant
EMC CE,FCC,Class A, UKCA, VCCI
Safety CB,CCC,UL, UKCA
Front Panel Protection
