All-Round Capacity Touch HDMI Input 12V DC Input 24V DC Input Wide range Intel Core i3 Intel Core i5 Intel Core i7 IP66 LAN RS232 RS485 Screen Size 15" Stainless Steel

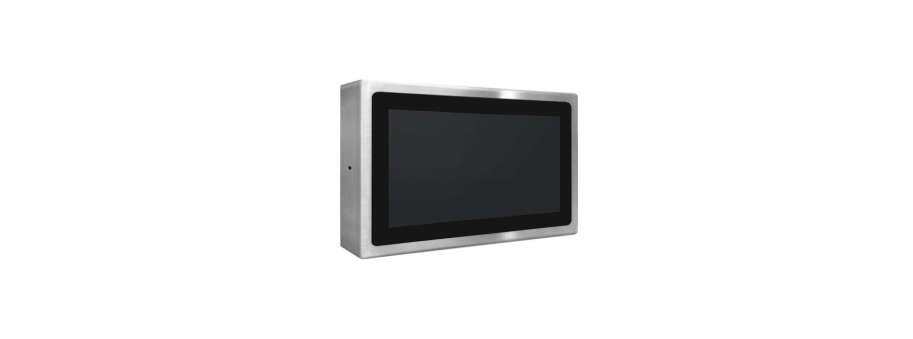

15.6" Stainless Steel P-cap Panel PC ELGENS with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3 Wide Range Power Input/ LPC-P156W-LPx

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P156W-LPK3 Промисловий панельний комп'ютер Elgens LPC-P156W-LPK3 15.6, Stainless Steel P-cap Panel PC with Intel KabyLake-U i3-7100U, 6 sides IP66, and Waterproof M12 Plastic Connector  138 709,0
LPC-P156W-LPK5 Панельний комп'ютер Eldgens 15.6" Stainless P-cap Touch Panel PC, Kabylake-U i5-7300U, with -20 ~60 degrees operating temp, 6 si  159 471,0

15.6" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, 6 sides IP66 Waterproof Feature and Wide Range Power Input

  • York / Desk / Vesa Mounting
  • 15.6" P-cap Flat Bezel
  • DC 12~24V Wide Range Power Input
  • 1920*1280 Resolution
  • Bottom Side M12 Plastic Connector
  • M12 Plastic Waterproof Connectors
  • Stainless Steel 316 Food Grade

Additional information

System

Processor 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3
System Memory DDR4 2133MHz SO-DIMM, up to 16 GB
External I/O Port
  • 1 x GIGA LAN External Waterproof cables by 1.5 meters (the end side is male RJ45)
  • 1 x USB 2.0 External Waterproof cables by 1.5 meters (the end side is female USB 2.0)
  • 1 x Power External Waterproof cables by 1.5 meters (the end side is 2 wire : ground & + )
  • 1 x COM (1 x RS-232/422/485) External Waterproof cables by 1.5 meters
  • 1 x HDMI (w/o Audio)
Storage
  • 2 x SATA3 (6.0Gb/s)
  • 1 x mSATA (full size mini-PCIe)
Operating System Windows 7 (32/64bit) (Sky Lake-ULT Only)Windows 8.1 (64bit) Windows 10 (64bit)
Expansion 2 x MiniPCIe Slot

LCD

Display Type 15.6" TFT LCD
Max. Resolution 1920*1280
Max. Color 16.2M
Luminance 450nits
View Angle 85/85/85/85
Backlight Lifetime 30,000 hours

Power Requirement

Power Input

M12 Power Input

DC 12~24V Wide Range Power Input

Touch Screen

Type 15.6" P-cap USB interface

Environment

Operating Temp -20~60 °C,IEC-60068-2-1/2/14
Storage Temp -20~60 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64

Mechanical

Construction Stainless Steel case
IP Rating IP66 with 6 sides
Mounting VESA
Dimension TBC
