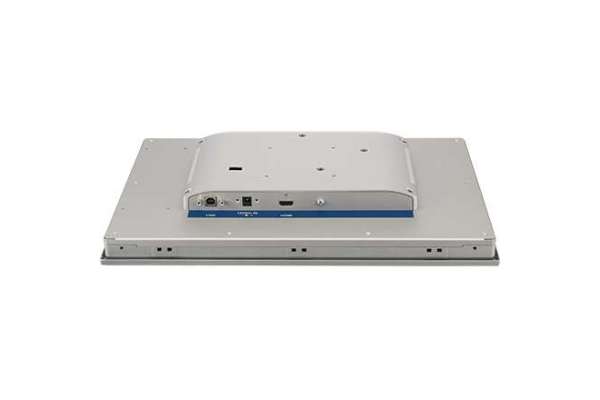

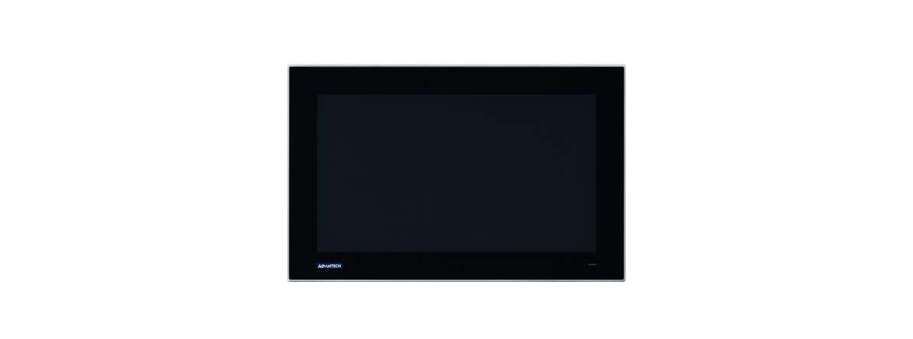

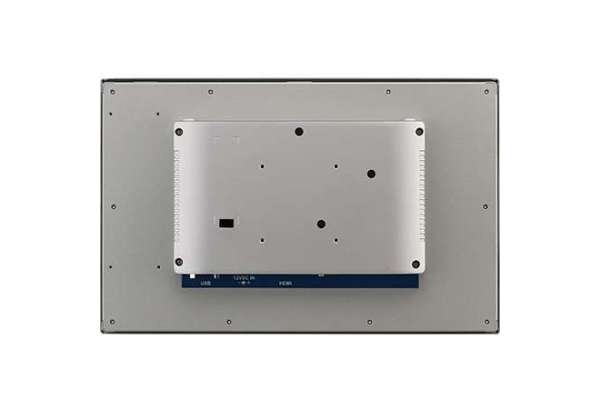

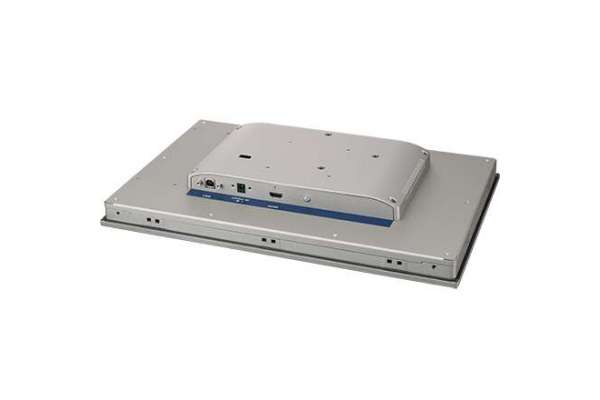

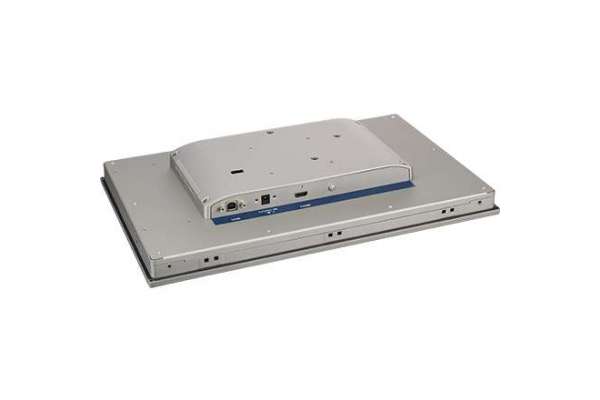

15.6" WXGA Monitor FPM-215W

15.6" WXGA Industrial Monitor with P-CAP Touch Control, Direct HDMI Port

System Components >> Industrial LCD monitors and kits

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The FPM-215W is an industrial-grade, widescreen monitor with a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel, FPM-215W is designed for intuitive operation in industrial environments such as smart factory and machine auto automation applications.

  • 15.6" WXGA TFT LED LCD with true-flat touchscreen
  • 16:9 wide screen aspect ratio, increases viewing area by 40%
  • Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
  • Slim design enables easy installation
  • Supports various mount options: panel, wall, desktop, and VESA arm
  • Touchscreen with reliable glass surface and P-CAP touch control
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  • Lockable I/O connectors

Price and avalability

Partnumber Description Price VAT incl Avalability
FPM-215W-P4AE Промисловий РК монітор 15.6" WXGA Ind. Monitor, w/ PCAP touch (HDMI)  34 361,0

Additional information

Part Number FPM-215W-P4AE

Display


Viewing Angle (H/V°) 178/178
Backlight MTBF(hrs) 50,000
Luminance (cd/m2) 250
Max. Resolution 1366 x 768
Max. Colors 16.7M
Contrast Ratio 500 : 1
Display Type WXGA TFT LED LCD
Display Size 15.6"

General


Power Input External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Mounting Panel, wall, desktop, VESA arm
Certifications BSMI, CCC, CE, FCC Class A, UL, CB
Dimensions (W x H x D) 419.7 x 269 x 56.2 mm (16.52" x 10.59" x 2.21")
Enclosure Front panel: Die-casting aluminium,Rear cover: Die-casting aluminium
Weight (Net) 4 kg
Video Port HDMI

Environment


Humidity (Storage) 10 ~ 95% non-condensing
Waterproof Front Panel IP66 Compliant
Operating Temperature 0 ~ 50° C (32 ~ 122° F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Vibration 5 ~ 500 Hz, 1 Grms (Operating, Random)

Touchscreen


OS Support Windows® 7, 8, 10, XPe, CE and Linux
Touch Type Projected capacitive
Hardness 7H
Multi Touch 4 points, USB interface in Win 7/8/10, Linux
