15" Display System Advantech IDS-3315

15" Industrial Display System Advantech IDS-3315 VGA/DVI/HDMI interface

System Components >> Industrial LCD monitors and kits

 Price and avalability

Manufacturer: Advantech Co., Ltd.

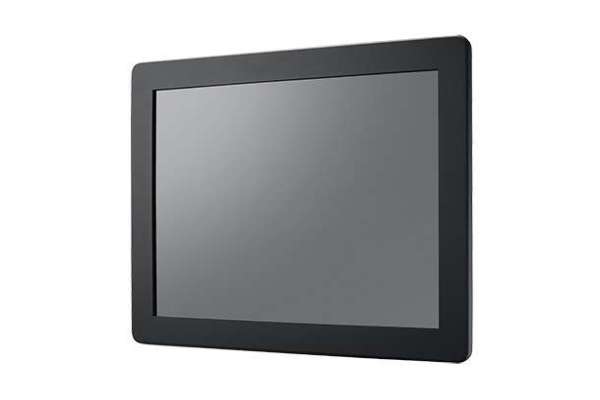

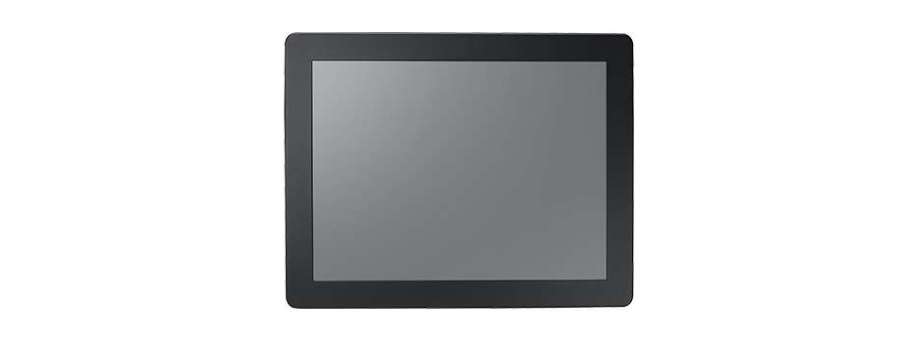

The Advantech IDS-3315 Front IP65 Monitor Series offer waterproof and dustproof design supporting a 15" 1024 x 768 pixels TFT LCD screen, with -20 ~ 60℃ wide operating temperature, and optional touch touchscreens. The series supports rear and VESA mounting and is ideal for different embedded applications in different environments.

  • Front IP65 for waterproof and dustproof
  • 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20 ~ +60 °C wide range operating temperature
  • 5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass
  • Multiple signal interfaces with HDMI, VGA & DVI
  • Standard integrated frame

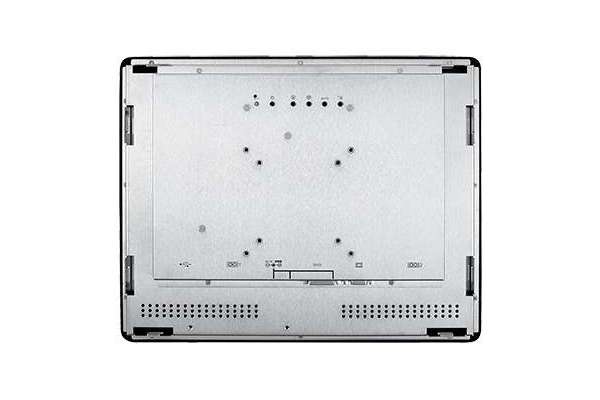

  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

Price and avalability

Partnumber Description Price VAT incl Avalability
IDS-3315G-1KXGA1 Промисловий РК монітор Advantech IDS 15" XGA Front IP65 Monitor, 1200 nits, w/ glass  23 769,3
IDS-3315G-50XGA1 Промисловий ЖК монітор 15" XGA Front IP65 Monitor, 500 nits, w/ glass  21 089,9
IDS-3315P-1KXGA1 Промисловий РК монітор Advantech IDS-3315P, 15" XGA Front IP65 Monitor, 1200 nits, w / P-cap  31 808,1
IDS-3315P-50XGA1 Промисловий РК монітор Advantech IDS-3315P, 15" XGA Front IP65 Monitor, 500 nits, w/ P-Cap TS  29 128,2
IDS-3315R-1KXGA1 Промисловий РК монітор Advantech IDS-3315R, 15" XGA Front IP65 Monitor, 1200 nits, w/Res. TS  27 119,0
IDS-3315R-50XGA1 Промисловий РК монітор Advantech IDS-3315R, 15" XGA Front IP65 Monitor, 500 nits, w/ Res. TS  24 439,6

Additional information

Part Number

IDS-3315G-1KXGA1

IDS-3315G-50XGA1

IDS-3315P-1KXGA1

IDS-3315P-50XGA1

IDS-3315R-1KXGA1

IDS-3315R-50XGA1

LCD Display


Size 15" 15" 15" 15" 15" 15"
Resolution 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA
Viewing Angle (H/V°) 176/176 176/176 176/176 176/176 176/176 176/176
Brightness 1200 nits 500 nits 1200 nits 500 nits 1200 nits 500 nits
Colors 262K/16.2M 262K/16.7M 262K/16.2M 262K/16.7M 262K/16.2M 262K/16.7M
Contrast Ratio 2000 : 1 2500 : 1 2000 : 1 2500 : 1 2000 : 1 2500 : 1
Response Time (ms) 23 23 23 23 23 23
Backlight Type LED LED LED LED LED LED
Backlight Life (hrs)

50,000

50,000 50,000 50,000 50,000 50,000
Touch Screen Tempered Glass Tempered Glass Projective Capacitive Touch Projective Capacitive Touch 5-wire Resistive touch 5-wire Resistive touch

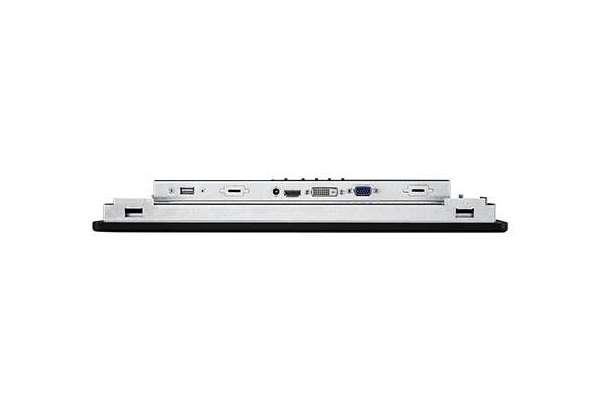

Signal Interface VGA x 1; DVI-D x 1; HDMI x 1; 12VDC Jack x 1; VGA x 1; DVI-D x 1; HDMI x 1; 12VDC Jack x 1; VGA x 1; DVI x 1; HDMI x1; 12V DC Jack x 1; USB x 1; ( USB is reserved for the connection to enable touch usage only) VGA x 1; DVI x 1; HDMI x1; 12V DC Jack x 1; USB x 1; ( USB is reserved for the connection to enable touch usage only) VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only) VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
Dimension 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm
Weight 4.5kg 4.5kg 4.5kg 4.5kg 4.5kg 4.5kg

Environment


Operational Temperature -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C
Storage Temperature -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C
Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing

Touchscreen


Surface Hardness - - Mohs 5 Mohs 5 3H 3H
Durability - - - - 10 million touches 10 million touches
Transparency - - 89% 89% 80% 80%
