Panel Mount Monitor IDS-3217

17" SXGA Industrial Panel Mount LCD Monitor

System Components >> Industrial LCD monitors and kits

 Price and avalability

Manufacturer: Advantech Co., Ltd.

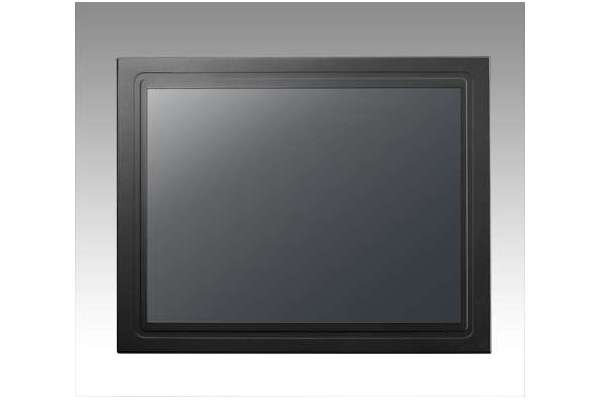

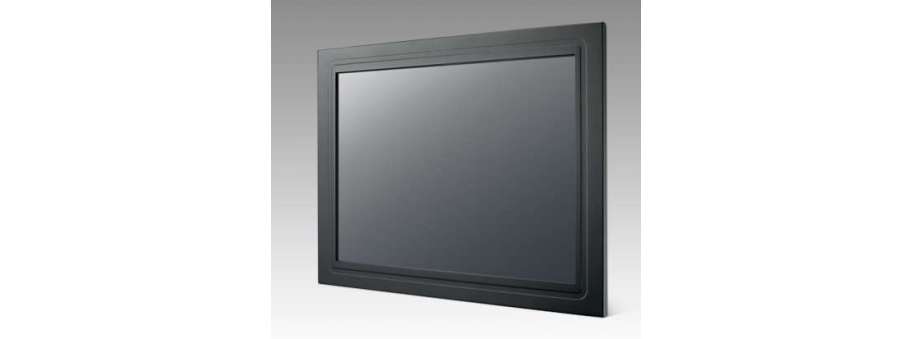

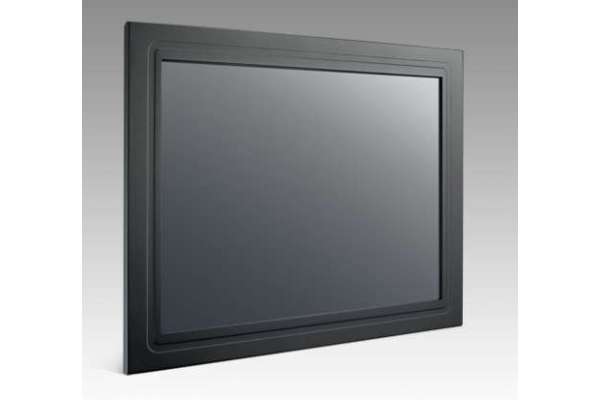

17" SXGA Industrial Panel Mount Monitor

  • 17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20 ~ +60° C wide range operating temperature
  • 5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass
  • Combo touch interface: RS-232 and USB
  • Dual signal interface with VGA & DVI (on selected models)
  • Standard integrated frame

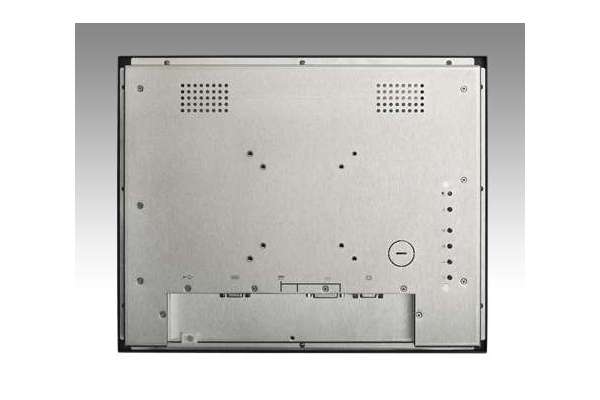

  • Versatile mounting methods for front mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

Price and avalability

Partnumber Description Price VAT incl Avalability
IDS-3217EG-25SXA1E Промисловий РК дісплей Advantech 17" SXGA Panel Mount Monitor, 250nits  21 148,5
IDS-3217ER-25SXA1E Промисловий РК дісплей Advantech 17" SXGA Panel Mount Monitor, 250nits, w/Res.TS  24 800,5
IDS-3217G-35SXA1E Промисловий РК монітор Advantech IDS-3217G 17" SXGA Panel Mount Monitor, 350nits, w/Glass, з розширеним температурним діапазоном (-20~70°С)  24 943,9
IDS-3217R-35SXA1E Промисловий РК дісплей Advantech 17" SXGA Panel Mount Monitor, 350nits, w/Res.TS  27 784,1

Additional information

Part Number

IDS-3217EG-25SXA1E

IDS-3217ER-25SXA1E

IDS-3217G-35SXA1E

IDS-3217R-35SXA1E

LCD Display


Size 17" 17" 17" 17"
Viewing Angle (H/V°) 170/160 170/160 170/160 170/160
Brightness 250nits 250nits 350nits 350nits
Colors 16.2M 16.2M 16.7M 16.7M
Backlight Life (hrs) 40,000 40,000 40,000 / 50,000 40,000 / 50,000
Contrast Ratio 1000 : 1 1000 : 1 800 : 1 800 : 1
Response Time (ms) 5 5 30 30
Touch Screen N/A 5-Wire Resistive N/A 5-Wire Resistive/ -
Backlight Type LED LED LED LED
Dimension 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm
Weight 4.5kg 4.7kg 4.5kg 4.7kg

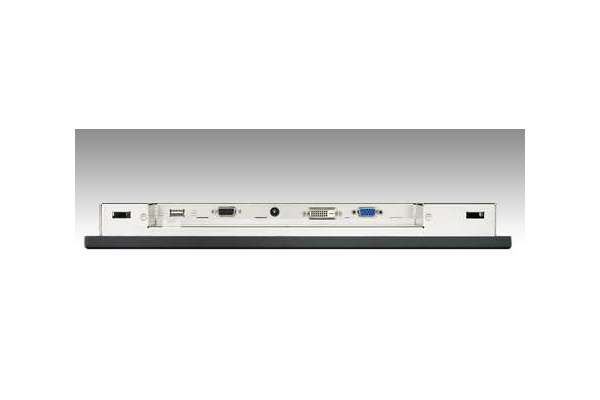

Signal Interface VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)

Environment


Operational Temperature 0 ~ 45° C 0 ~ 45° C -20 ~ 60° C -20 ~ 60° C
Storage Temperature -20 ~ 60° C -20 ~ 60° C -30 ~ 70° C -30 ~ 70° C
Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing

Touchscreen


Durability N/A 10 million touches N/A 10 million touches
Surface Hardness N/A 3H N/A 3H
Transparency N/A 80% N/A 80%
