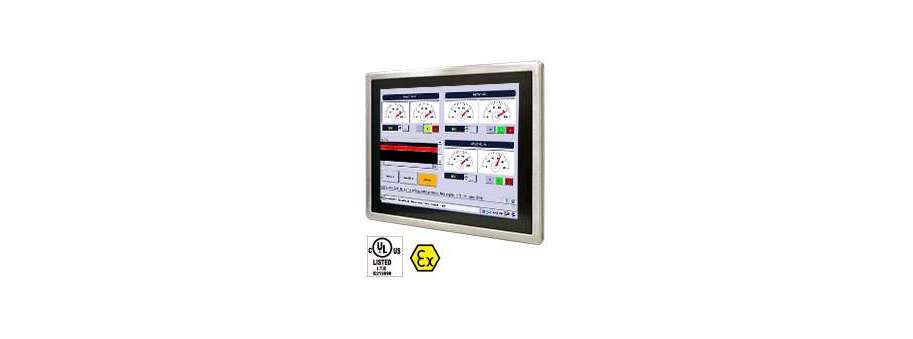

15" TFT XGA LCD explosion-proof stainless monitor R15L600-65EX, projected Capacitive Multitouch in a 1024 x 768 pixel resolution Winmate R15L600-65EX

Price and avalability

Partnumber Description Price VAT incl Avalability
R15L600-65EX Вибухозахищений промисловий монітор 15" в сталевому корпусі Winmate R15L600-65EX, ATEX Zone 2, IP 65, LCD TFT, 1024 x 768, 550 Cd/m2, VGA, резистівний сенсорний екран  159 444,0

R15L600-65EX is a stainless monitor with a set of features designed to withstand industrial use in hazardous locations and extreme temperatures while providing high-tech solutions that increase productivity, improve safety, and reduce operational costs. The monitor features a 15” flat panel with the option for either explosion-proof ELO 5-wire resistive touch or Projected Capacitive Multitouch in a 1024 x 768 pixel resolution. It is certified for use in UL Class 1, Division 2 & ATEX Zone 2 locations. The R15L600-65EX monitor delivers a rugged solution for harsh environments.

  • 15" TFT XGA LCD
  • True Flat Design
  • ELO 5W Resistive Touch/ Projected Capacitive Multitouch
  • Enclosure: Completely sealed, IP65 (NEMA 4X) grade
  • Widely used in chemical industry, food industry, medical devices,appliances etc. with good corrosion resistance
  • Stainless Material:
    CNS JIS ASTM AISI DIM
    304 SUS 304 S30400 304 1.4301

Additional information

Technical Description

Model Name R15L600-65EX
Panel Size 15"
Active Display Area (mm) 304.128(H) x 228.096(V)
Pixel Pitch (mm) 0.297 x 0.297
Resolution 1024x768
Brightness 8-550 nits, optional 1000 nits
Contrast Ratio 700:1
Viewing Angle -80~80 (H); -70~70 (V)
Number of Colors 16.2M,8-bits
Optional Touch Screen ELO 5 Wire resistive touch/Projected Capacitive Multitouch

Mechanical Description

Weight (kg) 11 kg (24.25 lbs)
Mounting VESA 100 x 100

Power Information

Power Consumption 20W (typ.)
Power Input 9-36V DC with isolation protection

Display Signals

OSD User Control Button: 1 x power, 2 x brightness/volume adjustment, 1 x ESC (Auto), 1 x OK (Menu)
LED Indicators: Power, Status

Environment & Certification

Operating Temperature (°C) -20˚ to 50˚C (-4° to 122° F)
Operating Humidity Range 10% to 95% RH, non-condensing
Certification
  • UL60950-1, CSA C22.2 No. 60950-1-07, EN60950-1, IEC60950-1
  • ATEX zone 2 EX II 3 G Ex ic nA IIC T4 Gc
  • UL Class I, Div.2, Groups ABCD T4 ANSI/ISA12.12.01 CAN/CSA C22.2 No. 213-M1987
Storage Temperature (°C) -20° to 60° C (-22° to 140° F)

I/O Specification

I/O Connectors Serial Interface: 1 x M12 Type RS232 (For remote control)
VGA: 1 x M21 Type VGA in
USB: 1 x M12 Type USB (For touch)
Optional RS232 :1 x M12 Type(For Touch)
Power Input: 1 x M21 type DC power input connector

Packing List

Accessories DC Power Cable
Power Adapter to IP65 Connector
RS232 Remote Control Cable (M12, rated IP65)
RS232 for Touch Cable (M12, rated IP65. Optional)
USB for Touch Cable (M12, rated IP65)
VGA Cable (M21, rated IP65)
VESA Mounting Screws
