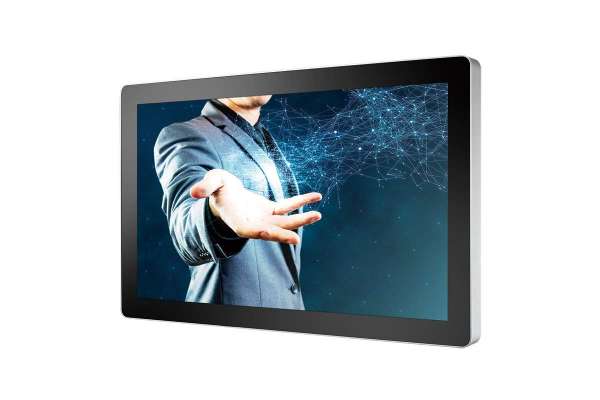

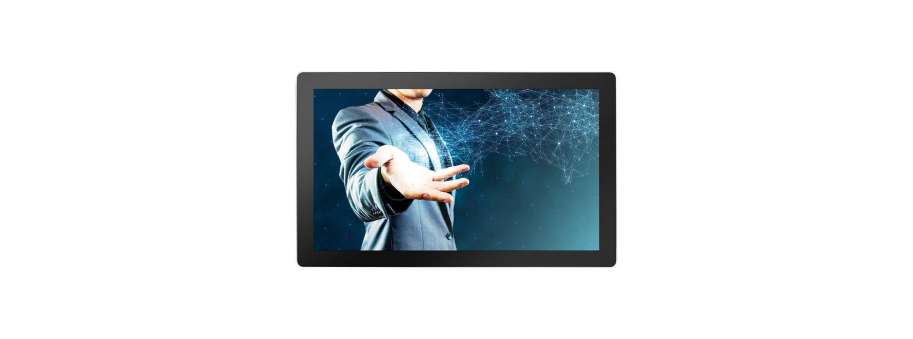

21.5” Multi-Touch TFT-LCD Capacitive Display

Multi-Touch TFT-LCD Projected Capacitive Industrial Display MTD-6021

System Components >> Industrial LCD monitors and kits

Manufacturer: Vecow

MTD-6000 series Multi-Touch TFT-LCD Projected Capacitive Industrial Display, with VGA, DVI and HDMI display interfaces where supports up to 16:9 Full HD resolution, featuring 10-point Multi-Touch projected capacitive screen dedicated to industrial use, IP65 waterproof compliant, supporting 0°C to 50°C operating temperature, supporting Panel and VESA mount for a wide range of applications, which is a smart choice for Smart Manufacturing, Gaming, Intelligent Surveillance, Infotainment System, Medical, and any industrial-grade IoT-oriented applications.

  • 21.5” LCD Display supports VGA, DVI-I and HDMI Interface, up to 16 : 9 Full HD 1920 x 1080 resolution
  • Industrial grade LCD Panel with high reliable LED Backlight, up to 50,000hrs
  • Projected Capacitive 10-point Multi-Touch Screen
  • 7H Hardness Anti-Scratch Surface
  • Touchscreen works with gloves
  • Landscape Mode and Portrait Mode supported
  • Mounting : VESA Mount, Panel Mount
  • IP65 Front Panel Protection
  • Sunlight Readable (Optional)

Additional information

Panel
Panel Type TFT LCD
Active Area 21.5" (16 : 9)
Max. Resolution 1920 x 1080 (Full HD)
Display Color 16.7M (RGB 8-bit)
Brightness (cd/m2) 250 (Optional, up to 1000)
Contrast Ratio 3000:1
Viewing Angle 89/89/89/89 (L/R/U/D)
Backlight LED Backlight
Touch Screen
Touch Screen Type 10-point Projected Capacitive
Transparency ≧ 85%
Surface Hardness 7H Surface Hardness
Control Interface USB Interface
System
Power Input  DC-in 12V
Power Interface 3-pin 5.0mm Terminal Block
Power Adapter AC to DC 60W Power Adapter
Video Interface

- 1 VGA : D-Sub, Analog

- 1 DVI-I : Digital

- 1 HDMI (Optional)

OSD Control OSD Keypad for Function Management
OSD Language Multi Language
Mechanical
Dimensions  538.4 x 329.4 x 54 mm (21.20" x 12.97" x 2.13")
Gross Weight 5.8 kg (12.79 lb)
Front Panel Protection IP65 Compliant
Mounting

- VESA Mount (75 x 75mm, 100 x 100mm)

- Panel Mount

Environment
Operating Temperature 0°C to 50°C  (32°F to 122°F)
Storage Temperature -20°C to 60°C  (-4°F to 140°F)
Humidity 5% to 90% Humidity, non-condensing
Shock

- IEC 60068-2-27

- 20G, Half-sine, 11ms

Vibration

- IEC 60068-2-64

- Non-operation : 10Hz to 200Hz, 1.5Grms, X, Y, Z, 30 mins each Axis

EMC CE, FCC
