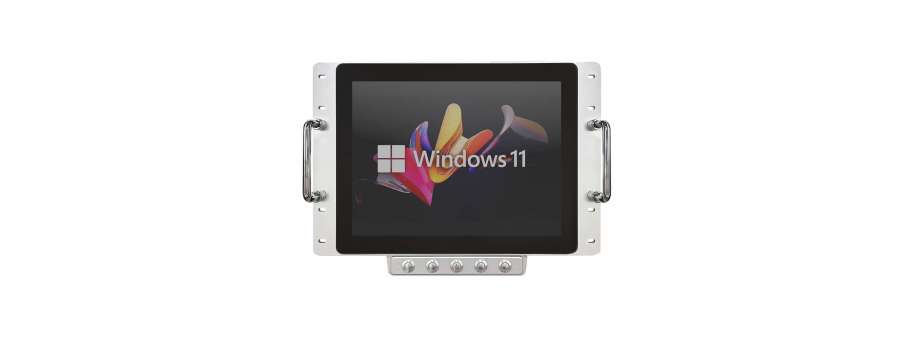

15" Defense Monitor ELGENS TDM-P150SH5TAGF-RND2

IP65 Industrial Monitor, 1500 nits, Aluminum Front Bezel, Mosmite Film, AG, VGA/DP/HDMI, 9~36VDC, MIL-STD-461G/1275E ELGENS TDM-P150SH5TAGF-RND2

• 15'' 1024*768 LCD and P-cap Touch
• IP65 and Rackmount Shape Front Bezel
• 1500 nits LED backlight
• Mosmite Film with AR feature
• Anti-Glare

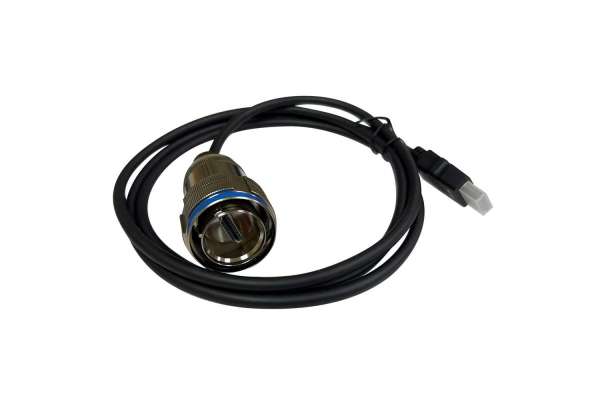

• HDMI by Metal Circular Connector

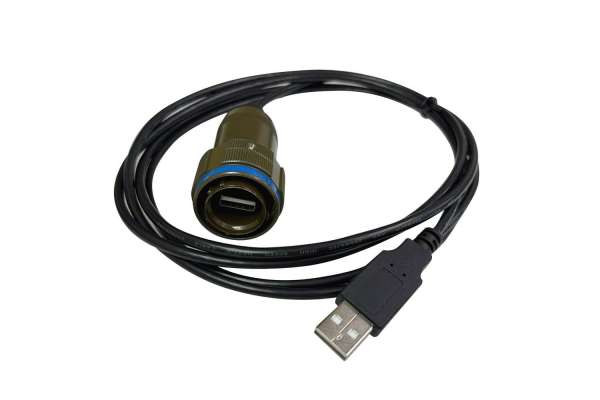

• USB fo Touch by Metal Circular Connector
• DC Power Input by MS3114E8 Circular Connector

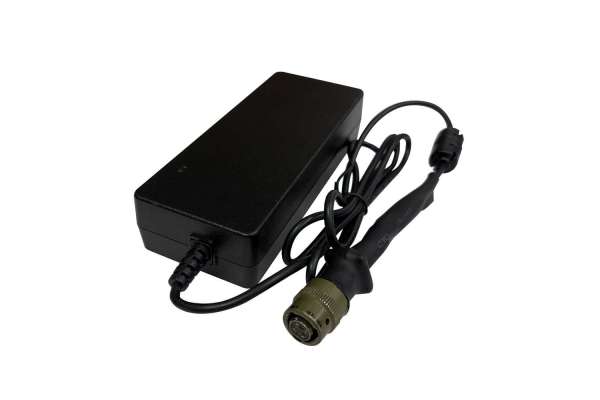

• DC 9~36V Power Input with 90W power adapter
• -40~70°C Operating Temperature

Additional information

I/O Connect
External I/O Port	HDMI by Metal Circular Connector (with 1.5 meter external cable) USB(for Touch) by Metal Circular Connector (with 1.5 meter external cable) Power Input by MS3114E8 Connector
LCD
Max. Resolution	1024*768
Contrast Ratio	700 : 1
Max. Color	16.2M
Luminance	1500 nits
View Angle	80/80/70/70
Power Requirement
Power Input	9~36VDC Power Input by MS3114E8 Connector
Touch Screen
Type	P-cap USB
Environment
Operating Temp	-40~70 °C，IEC-60068-2-1/2/14
Storage Temp	-40~70 °C
Humidity	10~90% @40 °C, non-condensing
EMC	MIL-STD-1275E Compliance MIL-STD-461G Compliance For CE101/102, RE101/102 FCC / CE Class A Certification
Vibration	MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz Certification
Mechanical
Construction	Aluminum Bezel and Metal case
IP Rating	IP65 Front Side
Mounting	Wall Mount , VESA Mount
Dimension	TBC
