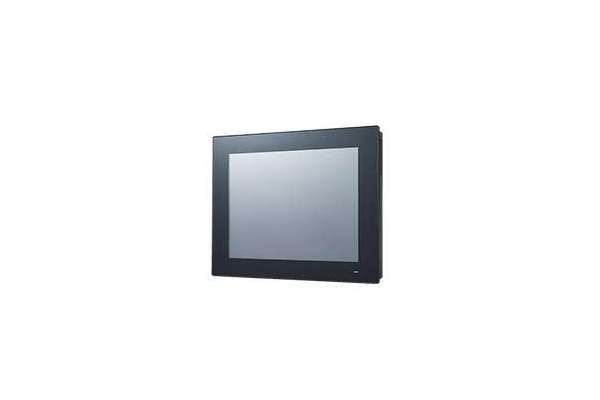

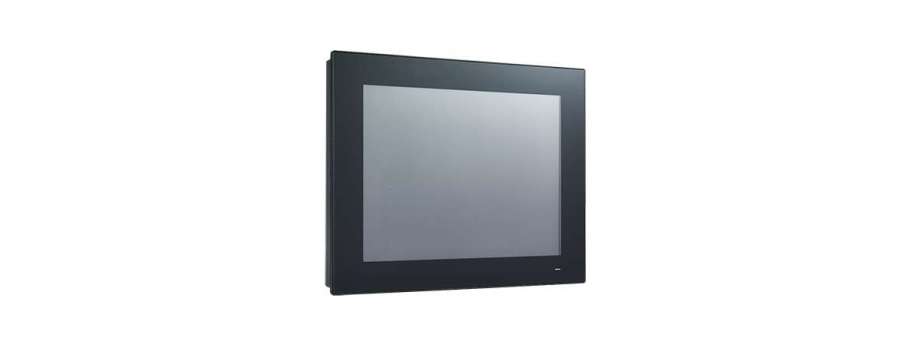

15" Fanless Panel PC 6th Gen. Intel® Core™ i5 IP65 Front Panel Protection Advantech PPC-3151
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-3151-650AE | Панельний комп'ютер Avantech PPC-3151 15" LED, PCT, Fanless, Intel Core i5-6300U | 125 567,0 |

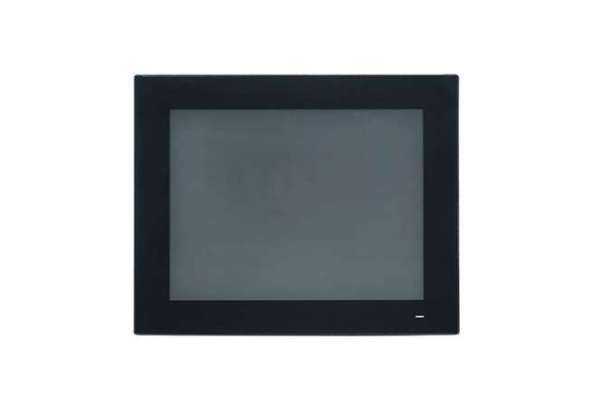

The PPC-3151 is a next-generation panel PC featuring a 15" TFT XGA display with 1024 x 768 resolution. Powered by a high-performance Intel® Core™ i5-6300U processor, the system’s high-efficiency fanless thermal design allows heat to dissipate rapidly. By combining high performance with reliability, PPC-3151 provides a superior human-machine interface. Rich I/O including 3 x COM, 4 x USB 3.0, and dual Gigabit Ethernet facilitate device connectivity and system integration. The inclusion of a PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s suitability for diverse applications. Finally, the 5-point multi-touch screen ensures convenient and intuitive operation for the optimal user experience.
- 15" TFT XGA LCD flat panel with projected capacitive (default) or resistive(optional) touchscreen
- Intel® Core™ i5-6300U (default)/i7/i3 (optional) processor with fanlesssystem design
- Supports either 1 x PCIe x4 or PCI
- 1 x M.2 bay (2242) for storage only
- 1 x isolated RS-422/485 with auto flow
- Wide DC input range (9 ~ 32V)
- Dual Gigabit Ethernet, IEEE1588 compliant
- 3 x Independent displays
- Supports VESA 75 mounting interface
Additional information
| Part Number | PPC-3151-650AE |
Processor System |
|
| CPU | Intel® Core™ i5-6300U (dual core) |
| Frequency | 2.4 GHz, turbo boost up to 3.0 GHz |
| L3 Cache | 3M |
| Memory | 1 x SODIMM, DDR4 1866/2133, max. 16 GB (1.2V) |
| Storage | 1 x 2.5" SATA bay;1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet |

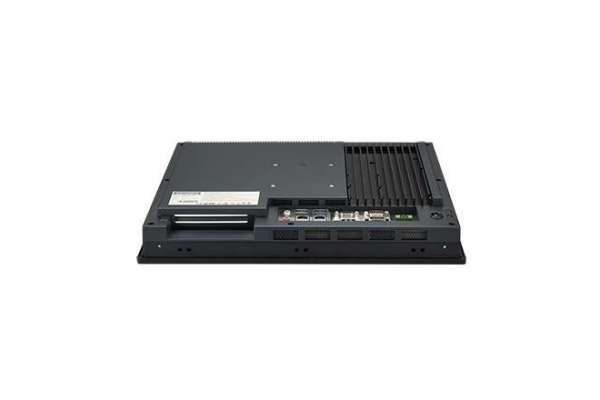

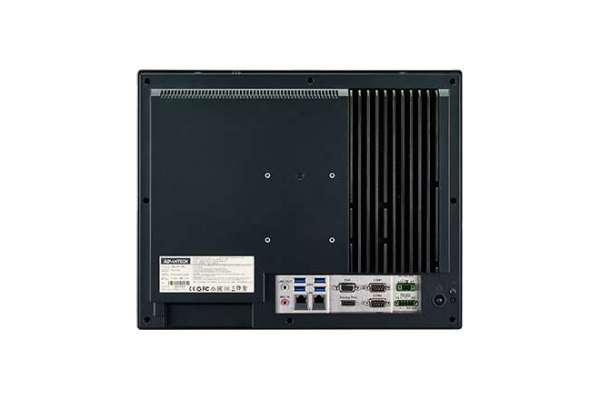

| I/O Ports | 3 x Serial ports (2 x RS-232, 1 x RS-422/485 with 1K VDC isolation);4 x USB 3.0 ports at rear;1 x Line-Out, 1 x Mic-In;1 x DB15 VGA;1 x DisplayPort (1.2) |
| Expansion Slots | 1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO |
| Watchdog Timer | 255 timer levels; setup by software |
| Speaker | 2 x 1W speakers |
Physical Characteristics |
|
| Dimensions | 391.4 x 312.5 x 55.35 mm (15.41 x 12.3 x 2.18") |
| Weight | 5.4 kg (11.90 lb) |
Power Supply |
|
| Input Voltage | 9-32 VDC |
| Power Consumption | i5-6300U: 60W (BurnIn test 7.0 in Windows 7, 64 bit) |
Display |
|
| Display Type | 15" TFT LED Panel |
| Max. Resolution | 1024 x 768 |
| Viewing Angle | 80°(left), 80°(right), 70°(up), 70°(down) |
| Luminance (cd/m2) | 400 |
| Backlight Life (hrs) | 50, 000 hrs |
LCD Display |
|
| Contrast Ratio | 700:1 |
Touchscreen |
|
| Touch Type | Projected capacitive 5-point multi-touch |
| Light Transmission | 88% ± 5% |
| Controller | USB interface |
Environment |
|
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
| Storage Temperature | -40 ~ 60°C (-40~140°F) |
| Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
| Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI |
| Safety | CE, UL,CCC, BSMI |
| Front Panel Protection | IP65 Compliant |
