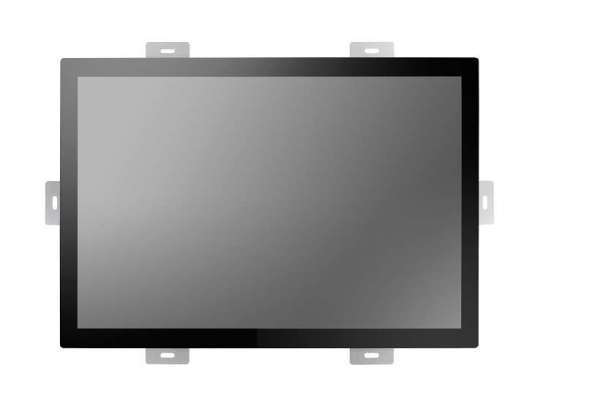

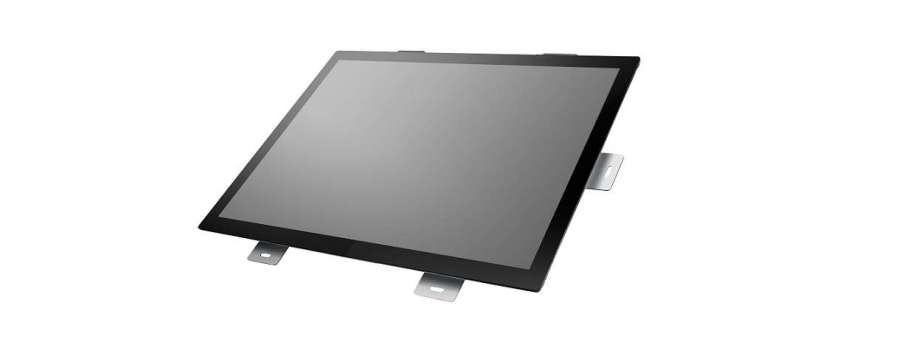

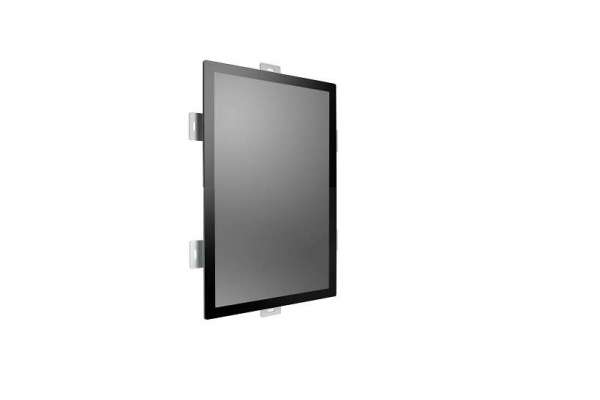

15" Open-frame panel PC UTC-215

15" (4:3) Open-frame panel PC Advantech with Intel® Core™ i5-6300U/Intel® Pentium® N4200 UTC-215

Industrial Computer >> Computers for retail

Manufacturer: Advantech Co., Ltd.

UTC-215 features one-piece solution and fan-less design that easy to embedded into kiosk chassis or wall mount type. Continuation of the advantage from UTC series, It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered.

  • Available for embedded into kiosk chassis and wall mount type
  • One-piece and fan-less design
  • Rich screen size and core from UTC series
  • Rich IO for extensional peripherals connection
  • Built-in Intel® Core™ i5-6300U (UTC-215F)
  • Built-in Intel® Pentium® N4200 (UTC-215G)
  • Providing Natural Viewing Experience with 15" 4:3 Display
  • Could be take as monitor only

Additional information

Processor System



CPU

Intel® Core™ i5-6300U (UTC-215F) Intel® Pentium® N4200 (default) (UTC-215G) Intel® Celeron® N3350 (Available)
Basic Frequency 2.4GHz (Duo Core) 1.10 GHz (Quad-Core)
L2 Cache MB L3 Cache 3MB L2 Cache 2MB
Memory 1 x SO-DIMM DDR4 2133 MHz up to 16 GB 1 x SO-DIMM DDR3L 1866 MHz up to 8GB
HDD 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network 2 x Gigabit Ethernet ports (RJ-45) 2 x Gigabit Ethernet ports (RJ-45)
I/O ports
  • 1 x RS-232 (Option)
  • 1 x RS-232/422/485 (Option)
  • 2 x USB 2.0 / 4 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x RJ-11
  • Audio Line-out x 1, Mic-in x 1
  • 1 x RS-232 (Option)
  • 1 x RS-232/422/485 (Option)
  • 2 x USB 2.0 / 4 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x RJ11
  • Audio Line-out x 1, Mic-in x 1
Stereo Speaker 1W x 2 (optional) 1W x 2 (optional)
Bus expansion Full-size MiniPCIe/mSATA M.2 2230/mSATA
Weight 2.7kg 2.7kg

OS Support

  • WES 7P 32bit
  • WES 7E 32bit
  • Windows Pro Embedded 7 SP1 64bit
  • WE8S 64bit Windows Embedded 8.1 Industry Pro 64bit
  • Win 10 IoT Enterprise 64bit
  • Linux Ubuntu 16.04
  • Win 10 IoT Enterprise 64bit
  • Android 6.0
  • Linux Ubuntu 18.04

Environmental Specifications


Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G
Shock 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC CE, FCC

Power Supply


Input Rating 12-30V/7A (84W ITE Adapter) 12 V/7 A (84W ITE Adapter)
Power consumption
  • Typical 35W
  • Max. 70W
  • Typical 35W
  • Max. 70W

LCD Display


Size/Type 15" (4:3) TFT LCD 15" (4:3) TFT LCD
Max.Resolution 1024 x 768 1024 x 768
Max. Color 16.2M 16.2M
Pixel Pitch (um) 297(H) x 297(V) 297(H) x 297(V)
Brightness (cd/m2 ) 300 300
View Angle 168°/168° 168°/168°

Touch Screen Option (PE/GE)


Type Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Light Transmission P-Cap Touch: 90% ± 2% P-Cap Touch: 90% ± 2%
Controller USB Interface USB Interface
