2xCOM 2xLAN HDMI Input 12V DC Input 24V DC IP65 LAN POE ports RS232 RS485 Screen 16:9 Screen Size 15" Standard T range

15.6" Ubiquitous Touch Computer with Intel® Pentium® N4200 Advantech UTC-115G

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-115GP-WWW0E 15.6" Pcap,N3450,4G RAM,128G SSD,Win10,Silver  81 697,3
UTC-115GP-WWW1E 15.6" Pcap,N3450,4G RAM,128G SSD,Win10,WF,Sil.  84 872,4
UTC-115GP-NWW0E 15.6" Pcap,N4200,4G RAM,128G SSD,Silver  74 552,3
UTC-115GP-WWW1F 15.6" Pcap,FHD,N3450,4G RAM,128G SSD,Win10,WF,Si  82 873,9
UTC-115GP-AWW1F 15.6" Pcap,FHD,N4200,4G RAM,128G SSD,WF,Android  78 761,0

UTC-115 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. Thanks for the slim and light looking with 3 way cable routing design, makes UTC-115 good fit to diverse scenarios and areas. The systems deliver updated information with well-designed interactive interfaces, with fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

  • Slimmer and Lighter design
  • Low power and fanless system design
  • Built-in Intel Pentium® N4200

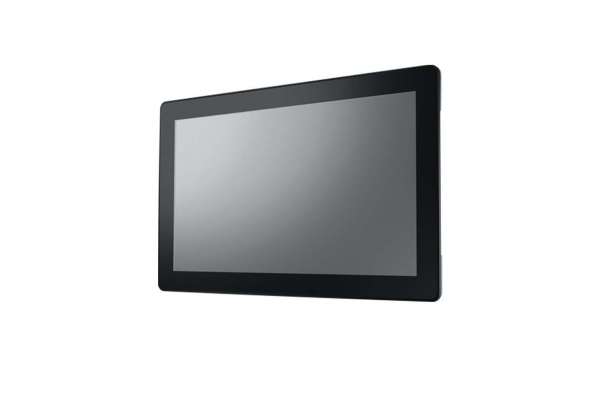

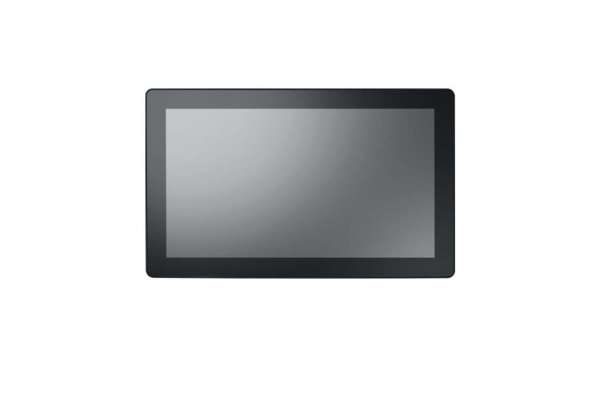

  • 15.6" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance

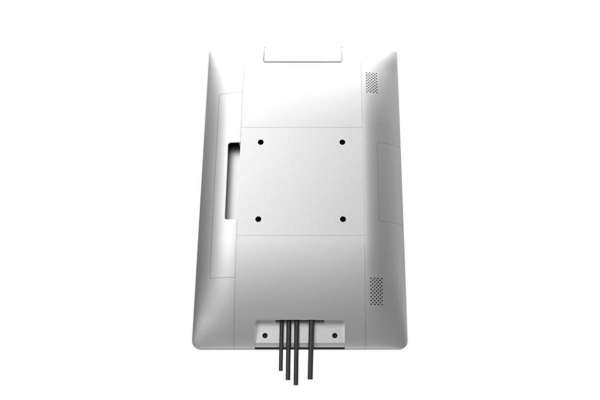

  • Clean back cover design with 3 Way IO cable routing
  • Supports both landscape and portrait screen orientations

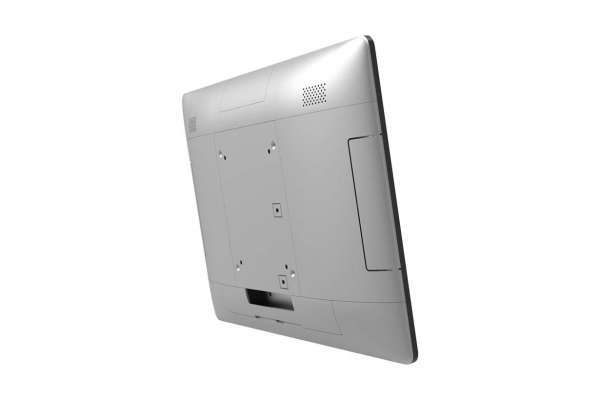

  • VESA 100 mm standard mounting holes for varied mounting demands
  • PoE supported on Pentium N4200 platform (with optional module)
  • Support DeviceOn/iService software for remote device management

Additional information

Process system

CPU Intel® Pentium® N4200 (UTC-115G)
Base/Burst Frequency 1.10Ghz/2.50Ghz (Quad-Core)
Memory 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB

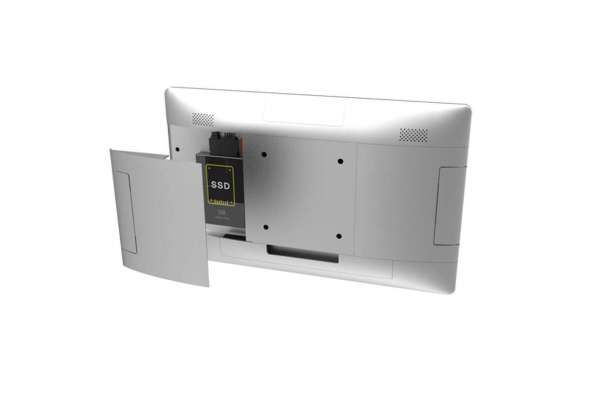

Storage 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage
Network 2 x Gigabit Ethernet ports (Supports Wake on LAN)

I/O Ports

  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 4 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports (1 with PoE)
  • 1 x HDMI 1.4 1 x Audio Phone Jack
Stereo Speaker 2 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242
Mounting VESA 100 x 100 mm (Screw Size, M4, 7mm)
Dimension (WxHxD) 398.8 x 248.2 x 29.5
Weight 2.4 Kg

OS Support

Win 10 IoT Enterprise 64bit Android 10.1 Linux

Environment Specification

Operating temperature 0 ~ 40 °C (32 ~ 104 °F)*
Relative Humidity 10 ~ 95% @ 40 °C non-condensing
Vibration 0.5G
Shock 10G peak acceleration (11 msec. duration)
Certification CE, FCC, CB, UL, CCC, BSMI
Front Panel Protection IP 65 Compliant

Power Supply

DC Input Rating 12V/5A~24V/2.5A, 60W ITE Adapter
PoE IEEE 802.3at/30W (Optional)
Power consumption 26W

LCD Display

Size/Type 15.6" HD / 15.6" FHD (Option)
Max.Resolution 1366 x 768 / 1920 x 1080
Max. Color 262K
Pixel Pitch (um) 252(H) x 252(V) / 179(H) x 179(V)
Brightness (cd/m2) 220 / 300
View Angle 90°/50° / 170°/170°

Touch Screen Option

Type Projected Capacitive
Light Transmission 80% ± 5% / 90%
Controller USB Interface
