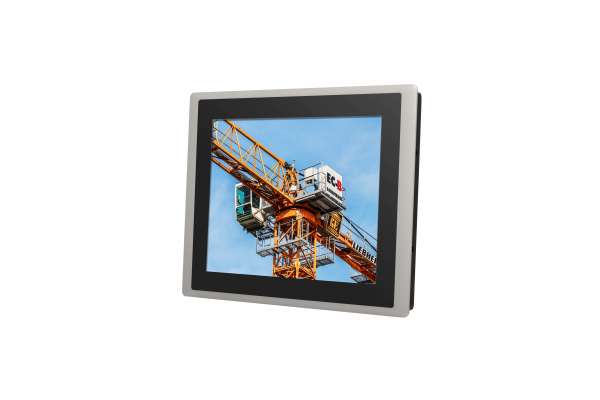

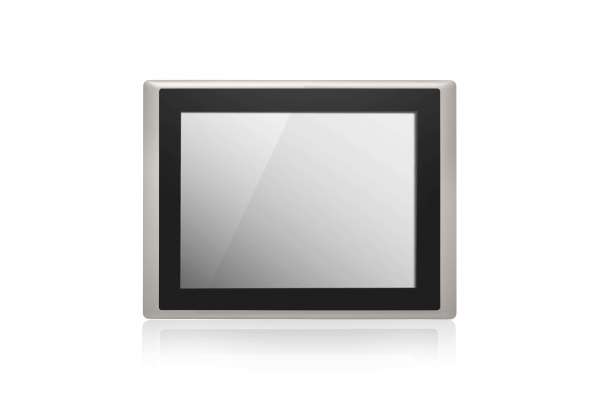

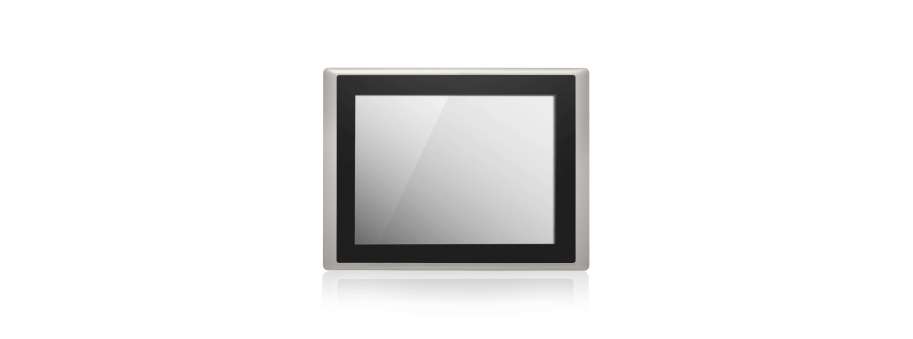

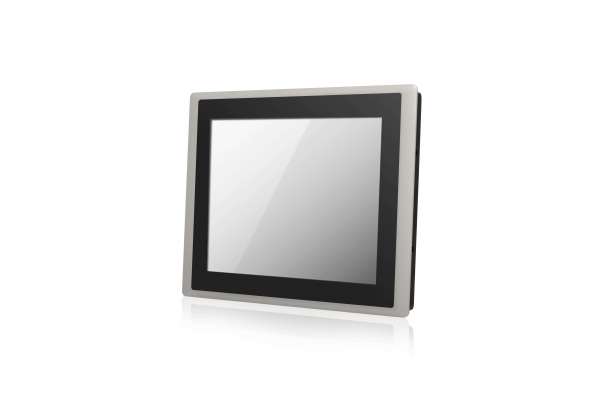

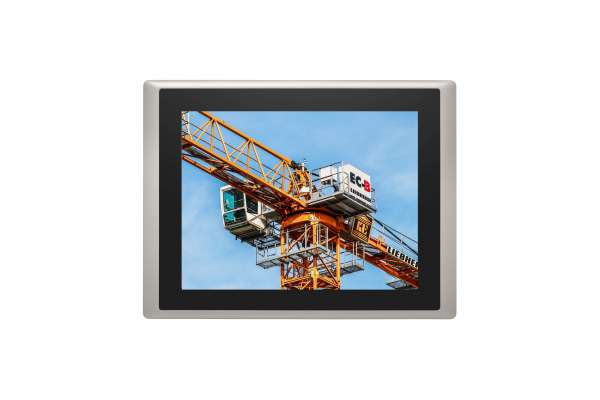

15" TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor Cincoze CS-115/P2102

The CS-115/P2102 is a 15" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-115/P2102 is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. With its slim design, the CS-115/P2102 offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-115/P2102 has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-115/P2102 supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-115/P2102 is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-115/P2102 supports Cincoze patented Convertible Display System (CDS)

  • 15” TFT-LCD with Ultra-high Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution
  • Onboard 8th Generation Intel® Core™ U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • True Flat IP65 Compliant Front Panel Protection
  • Supports Panel / VESA / Rack Mounting

Additional information

Specifications

Display

LCD Size 15" (4:3)
Max. Resolution 1024 x 768
Brightness (cd/m2) 1600
Contrast Ratio 800 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Viewing Angle (H-V) 160 / 150
Backlight MTBF 50000 hrs (LED Backlight)

Touch

Projected Capacitive Touch

Processor System

Onboard 8th Intel® Core™ U Processors (Whiskey Lake)

- Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz)

- Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz)

- TDP: 15 W

Memory

2x DDR4 2400 MHz 260-Pin SO-DIMM Socket

Supports up to 64 GB (un-buffered and non-ECC)

Graphics

- Integrated Intel® UHD Graphics 620

- Supports Triple Independent Display (via VGA and DisplayPort Outputs)

Audio Codec

Realtek ALC888-GR

External I/O Interface

  • 1x VGA (1920 x 1200 @60Hz)
  • 1x DisplayPort (4096 x 2304 @ 60Hz)
  • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210-IT
  • 3x USB 3.2 Gen2 (Type A)
  • 2x USB 2.0 (Type A)
  • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
  • 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x Reset Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/Off Connector, 2-pin Terminal Block
  • 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
  • 1x Ignition DIP Switch (12V/24V, need to work with CFM module)

Storage

2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1

Expansion

  • 2x Full-size Mini-PCIe Socket
  • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
  • 2x Control Function Module (CFM) Interface
  • 1x Front Accessible SIM Socket
  • 4x Antenna Hole

Other Functions

  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • Internal Speaker AMP 2W + 2W
  • OSD Function: LCD On/Off, Brightness Up, Brightness Down
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Supports Instant Reboot Technology (0.2 sec)

Power Requirement

  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 1x 3-pin Terminal Block
  • Power Adapter (Optional): AC/DC 24V/5A 120W

Physical

Dimension (WxDxH, mm):

408 x 312.4 x 72 mm
Weight 6.6 kg
Construction Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis
Mounting Panel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless Design
Jumper-less Design

Environment

Operating Temperature -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
Storage Temperature -20°C to 70°C
Relative Humidity 80% RH @ 40˚C (Non-condensing)
Shock Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
IP Level IP65 Compliant Front Panel
EMC CE, FCC Class A

Protection

  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V /Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform)

Operating System

  • Windows® 10
  • Linux: Supports by project
