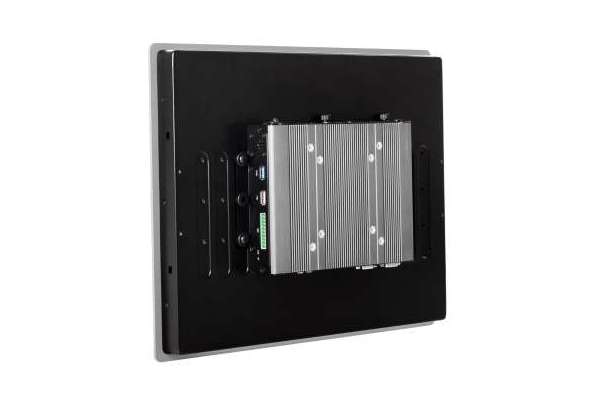

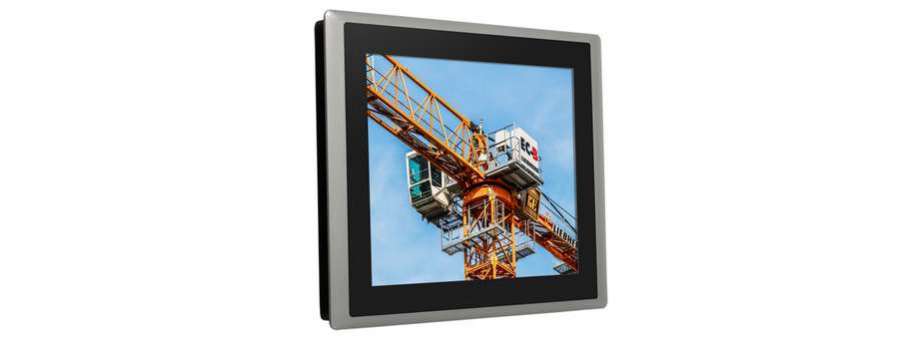

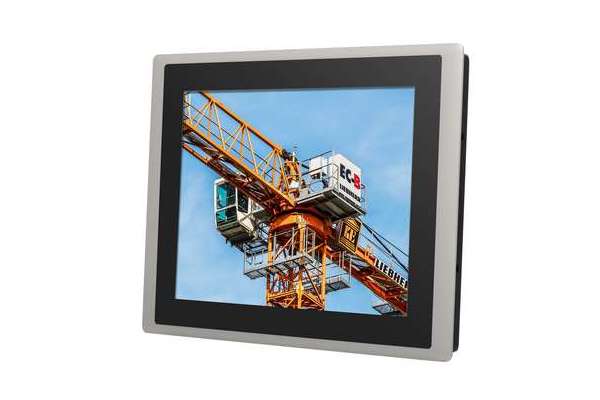

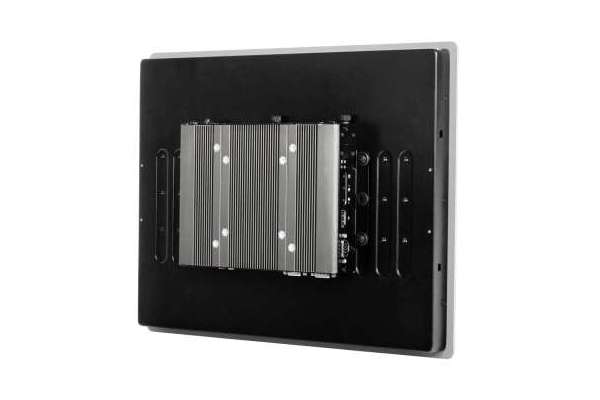

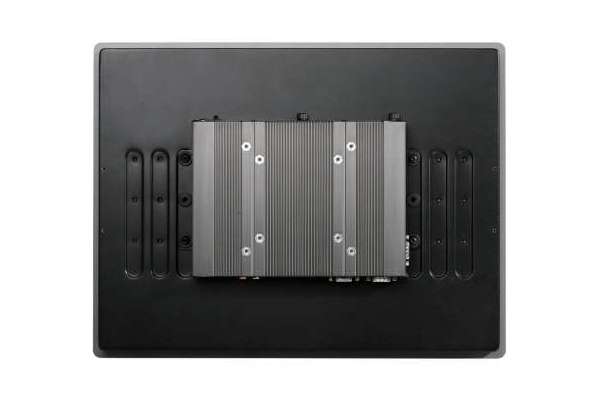

15" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor Cincoze CS-115/P1001

Price and avalability

Partnumber Description Price VAT incl Avalability
CS-115C-R11/P1001-R10 Модульний панельний комп'ютер Cincoze CS-115C-R11/P1001-R10, 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch  82 503,6
CS-115C-R11/P1001E-R10 Модульний панельний комп'ютер Cincoze CS-115C-R11/P1001E-R10, 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket  83 981,0

15" TFT-LCD with Ultra High Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution

CS-115/P1001 Series is a 15" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe, 1x SIM socket, and 2x Universal I/O Bracket(For P1001E only) for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-115/P1001 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. Furthermore, CS-115/P1001 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
  • 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
  • 2x Universal I/O Bracket (For P1001E only)

Additional information

Display

LCD Size 15" (4:3)
Max. Resolution 1024 x 768
Brightness (cd/m2) 1600
Contrast Ratio 800 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Viewing Angle (H-V) 160 / 150
Backlight MTBF 50,000 hrs (LED Backlight)

Touch Screen

Touch Type Projected Capacitive

Physical

Dimension ( W x D x H ) 408 x 312.4 x 59.2 mm
Weight Information 4.36kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Environment

Front Panel Protection IP 65 Compliant
Operating Temperature Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature -20°C to 70°C
Relative Humidity 80% RH @ 40°C (non-Condensing)
EMC CE, UKCA, FCC, ICES-003 Class A

System

Processor Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory
  • 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
  • Support up to 8 GB
BIOS AMI 64Mbit SPI BIOS

Graphics

VGA 1x VGA Connector (1920x1080@60Hz)
DP 1x DisplayPort Connector (1920x1080@60Hz)

Audio

Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210

USB

1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)

COM 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control
DIO 8x Digital I/O (4in/4out)
Power Mode Switch 1x AT/ATX Mode Switch
Power Switch 1x Power Switch
Reset Button 1x Reset Button

Storage

SSD/HDD 1x 2.5”SATA HDD Bay
CFast 1x External CFast Socket
SIM Card 1x External SIM Card Socket

Expansion

Mini PCI Express 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
I/O Brackets 2x Universal I/O Brackets (for P1001E)

Other Function

Watchdog Timer Software Programmable Supports 256 Levels System Reset
Internal Speaker AMP 2W + 2W (Internal Speaker)
OSD Function LCD On/Off, Brightness Up, Brightness Down

Power

AT/ATX Power Support AT, ATX Mode
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional) 1x Optional AC/DC 12V/5A, 60W Power Adapter

Physical

Dimension ( W x D x H ) 204.5 x 149 x 37.5 mm ( 204.5 x 150 x 60 mm for P1001E)
Weight Information 1.34kg (1.54kg for P1001E)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS Mounting

Reliability & Protection

Reverse Power Input

Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection 20A
ESD Protection +/-8kV (air), +/-4kV (contact)
Surge Protection 2kV

Operating System

Microsoft® Windows
  • Windows® 10, Windows® 8, Windows® 7
  • Windows® Embedded 8 Standard, Windows® Embedded Standard 7
Linux Supports by project

Environment

Operating Temperature Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -30°C to 85°C
Relative humidity 10%~95% (non-condensing)
Shock Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
