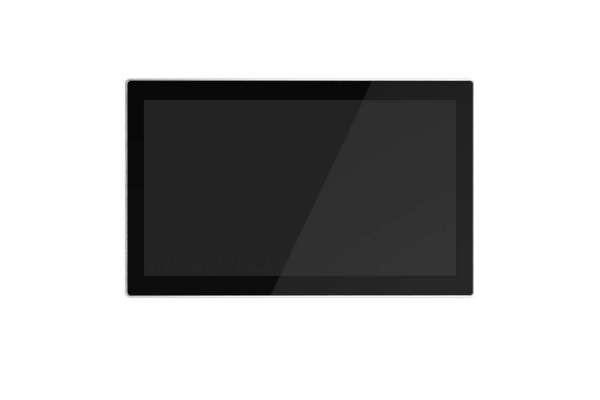

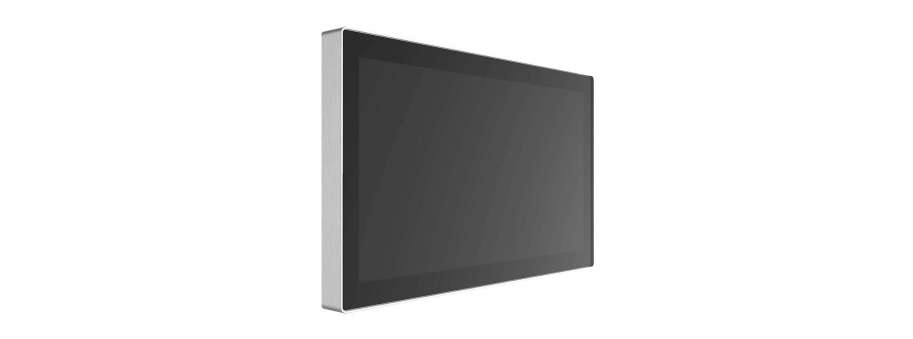

23.8" Panel PC ELGENS with IP65 on 9th Gen 35W CPU LPC-P238W-2CxM

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P238W-2C7M Промисловий панельний комп'ютер Elgens LPC-P238W-2C7M 23.8" (1920*1080), 400 nits, Intel® Core i7-9700TE, Fanless P-cap Panel PC with IP65 Front side, 4 x USB 3.1 , 2 x LAN, 1 x COM, 3 x DP and DC 19~28V PowerInput with DC 24V Power Adapter by 9th Gen 35  130 598,0

23.8" Fanless P-cap Panel PC ELGENS with IP65 Front side, 4 x USB 3.1 , 2 x LAN, 1 x COM, 3 x DP and DC 19~28V PowerInput with DC 24V Power Adapter by 9th Gen 35W CPU LPC-P238W-2CxM

  • 23.8" LCD with 1920*1080 resolution
  • IP65 Front Bezel
  • 400 nits LED Backlight
  • 35W Fanless Design
  • Wide Operating Temp -20~70 °C
  • VESA 75 x 75 / 100 x 100
  • DC 19~28V Power Input
  • PCIe x16 slot for Low Profile Card Expansion

Additional information

System

Processor Intel® Core i3-9300TE/ i5-9500TE/ i7-9700TE, 35W
System Memory 2 x DDR4 SO-DIMM up to 64GB

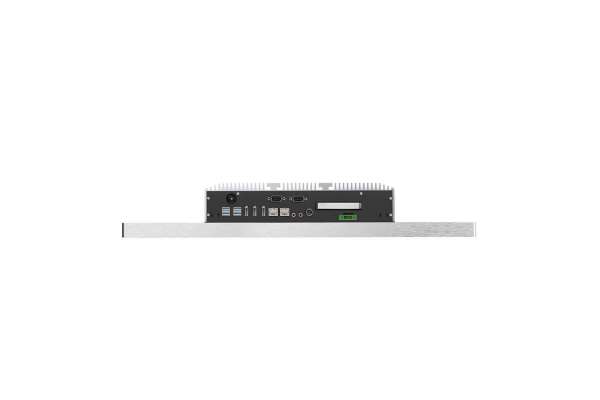

External I/O Port
  • 4 x USB 3.1 Gen1
  • 2 x RS-232422/485
  • 2 x Intel Gigabit LAN ( 1 x Intel® I210 )
  • 3 x DP
  • 1 x 3-Pin Terminal Block for Power Input
  • 1 x Power Button
Storage
  • 1 x M.2 B-Key Slot (2242, 2260, 2280), Share with expansion
  • 1 x 2.5" Storage Bay
Operating System Win 10 IoT Enterprise
Expansion
  • 1 x M.2 (2230) E-Key, supports WiFi module
  • 1 x M.2 (3042/2242/2260/2280) B-Key, Share with storage
  • 1 x PCIe x16 Slot

LCD

Display Type 15" TFT LCD
Max. Resolution 1024*768
Max. Color 16.2M
Luminance 350 nits
View Angle 80/80/80/80
Backlight Lifetime 30,000 hours

Power Requirement

Power Input DC 19~28V Power Input with DC 24V Power Adapter

Touch Screen

Type USB P-Cap Touch

Environment

Operating Temp -20~70°C IEC-60068-2-1/2/14
Storage Temp -25~75 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64

Mechanical

Construction Aluminum Front Bezel and Case
IP Rating Front Panel IP65 / IP66 Compliant
Mounting VESA / Panel Mount
Dimension TBC
