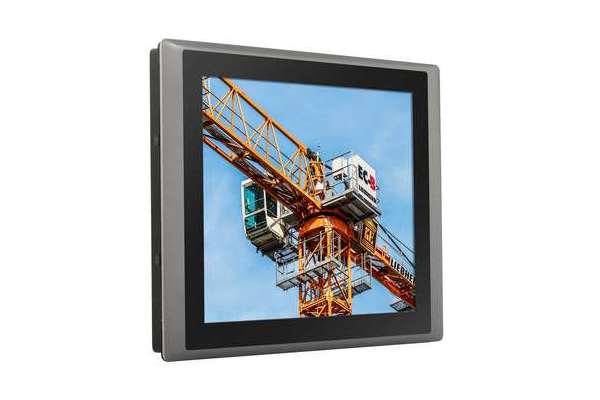

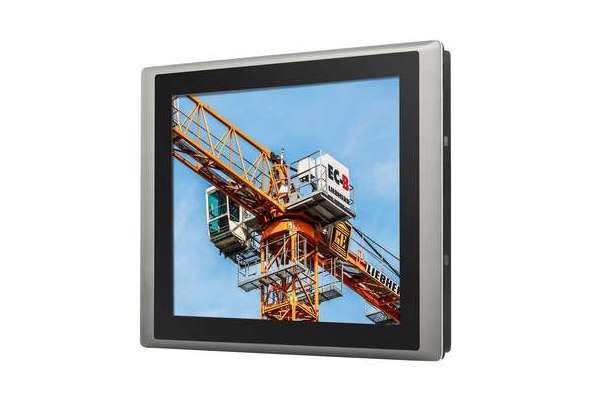

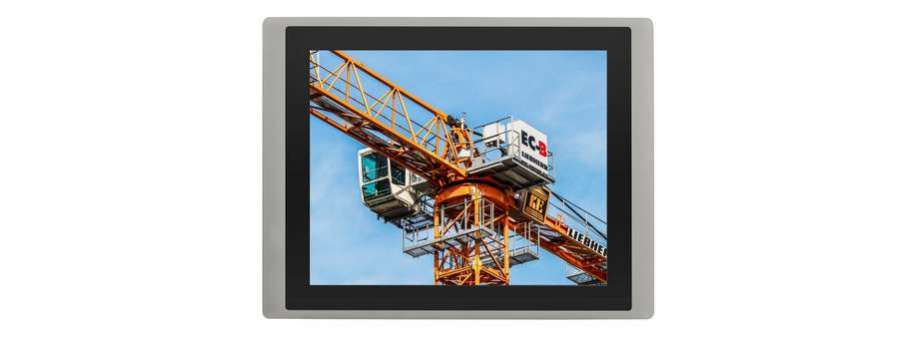

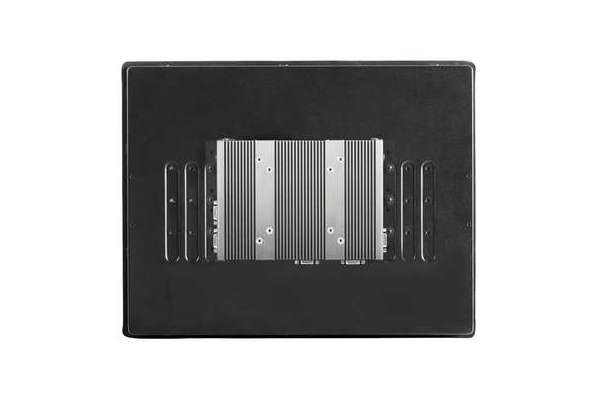

17" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom® / Pentium® Processor Cincoze CS-117 / P1101

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
CS-117-R10C-R11/P1101-E50-R10 Модульний панельний комп'ютер Cincoze CS-117-R10C-R11/P1101-E50-R10, 17" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch  92 653,4
CS-117C-OB-R11/P1101-E50-R10 Модульний панельний комп'ютер Cincoze CS-117C-OB-R11/P1101-E50-R10, 17" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Atom E3950 Quad Core Processor, P-Cap. Touch and Optical Bonding  91 630,1
CS-117C-OB-R11/P1101-N42-R10 Модульний панельний комп'ютер Cincoze CS-117C-OB-R11/P1101-N42-R10, 17" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Pentium N4200 Quad Core Processor, P-Cap. Touch and Optical Bonding  92 732,2
CS-117C-R11/P1101-N42-R10 Модульний панельний комп'ютер Cincoze CS-117C-R11/P1101-N42-R10, 17" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch  93 834,2

CS-117/P1101 Series is a 17" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-117/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections. Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CS-117/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CS-117/P1101 Series is appropriate for harsh environments and critical applications

  • 17” TFT-LCD SXGA with Ultra High Brightness up to 1,500 nits
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)
  • Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • Wide Range Operating Temperature -20 °C to 70 °C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
  • Supports Panel / VESA / Rack Mounting

Additional information

Specifications

Display
  • LCD Size: 17" (5:4)
  • Max. Resolution: 1280 x 1024
  • Brightness (cd/m2): 1500
  • Contrast Ratio: 800 : 1
  • LCD Color: 16.7M
  • Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
  • Viewing Angle (H-V): 160 / 140
  • Backlight MTBF: 50000 hrs (LED Backlight)

Touch

 Projected Capacitive Touch

Processor System
  • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
  • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz

Memory
  • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
  • Supports up to 8GB (un-buffered and non-ECC)

Graphics
  • Integrated Intel® HD Graphics 505
  • Supports Triple Independent Display (via VGA & DisplayPort outputs)

Audio Codec

 Realtek ALC888-GR

External I/O Interface
  • 1x VGA (1920 x 1200 @60Hz)
  • 1x DisplayPort (4K x 2K @60Hz)
  • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 (- GbE1: Intel® I210IT / - GbE2: Intel® I210IT)
  • 4x USB 3.0 (Type A)
  • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
  • 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x Reset Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/Off Connector, 2-pin Terminal Block
  • 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block

Storage
  • 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
  • 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)

Expansion
  • 2x Full-size Mini-PCIe Socket
  • 1x SIM Socket
  • Supports Control Function Module (CFM) Technology (- Optional CFM IGN Module for Power Ignition Function / - Optional CFM PoE Module for Power over Ethernet Function)
  • Supports Convertible Display System (CDS) Technology
  • 4x Antenna Holes

Other Features
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • Internal Speaker AMP 2W + 2W
  • OSD Function: LCD On/Off, Brightness Up, Brightness Down
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Supports Instant Reboot Technology (0.2 sec)

Power Requirement
  • Supports AT/ATX Power Type
  • 1x 3-pin Terminal Block
  • Power Input Voltage 9~48VDC
  • Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)

Physical
  • Dimensions (WxDxH, mm): 450 x 350 x 76.35 mm
  • Weight: 7.13 kg
  • Front Panel Construction: Flat Rugged Aluminum Die-casting Bezel
  • Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit)
  • Fanless Design

Environment
  • Operating Temperature: -20°C to 70°C (with extended temperature peripherals; Ambient with air flow)
  • Storage Temperature: -20°C to 70°C
  • Relative Humidity: 80% RH @ 40°C (Non-Condensing)
  • Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  • Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • IP Level: IP 65 Compliant Front Panel
  • EMC: CE, FCC Class A

Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: - Protection Range: 51~58V -Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform)

Operating System
  • Windows® 10
  • Linux: Supports by project
