18.5" All-in-one POS System with 16:9 Wide Screen Solution on Intel® BayTrail J1900/ Intel® Haswell i5-4300U Advantech UTC-318P

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-318PDP-ATB0E POS-термінал Advantech, 18.5" P-Cap touch, Celeron J1900, 2G RAM, 64G SSD, Black, з блоком живлення, без ОС.  96 633,2
UTC-318PEP-ATB0E POS-термінал Advantech, 18.5" P-CAP TOUCH, HASWELL I5, 2G RAM, 64GB SSD, BLACK, з блоком живлення, без ОС.  126 088,0

UTC-318P is the beautifully designed multi-purpose all-in-one Point-of-Sales system that makes it easy to get paid quickly, manage product inventory, build customer database, and repeat business with loyalty. Equipped with 16:9 wide screen format, touch base LCD panel, UTC-318Px integrates add-on key peripherals, such as Camera, RFID, Smart Card Reader, MSR, Barcode Scanner, and display systems for diversified applications.

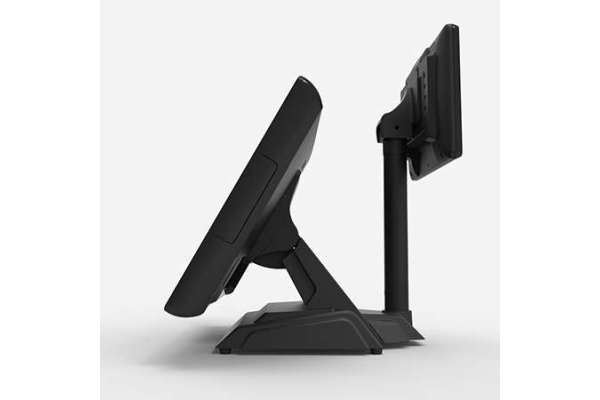

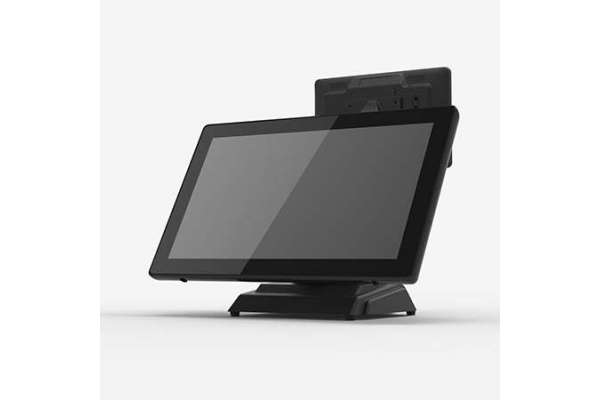

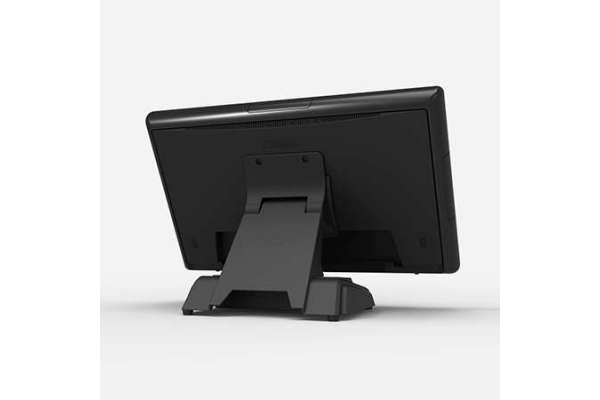

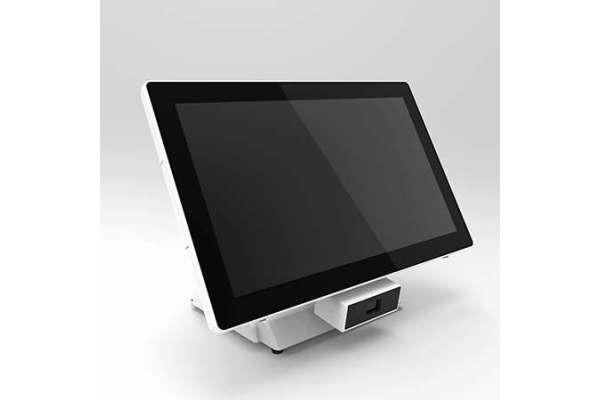

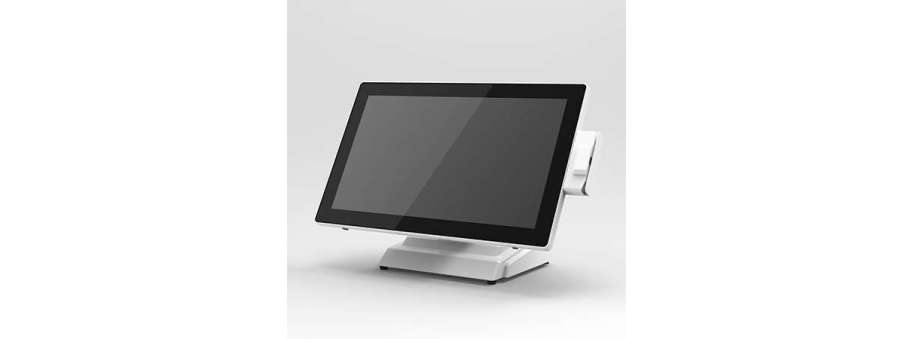

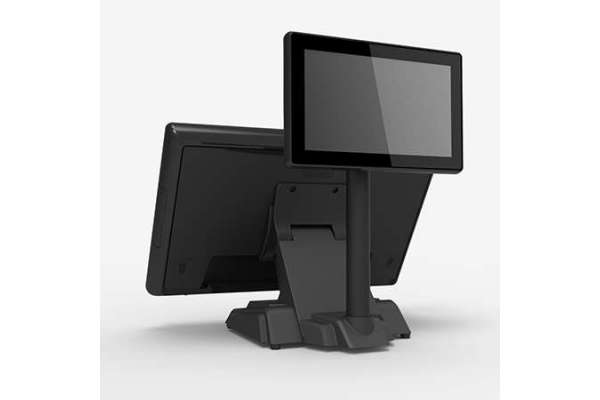

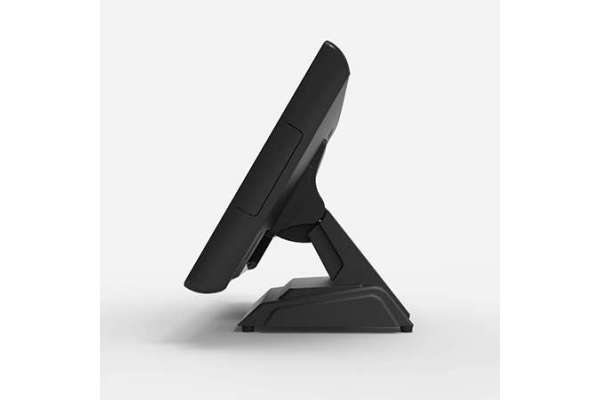

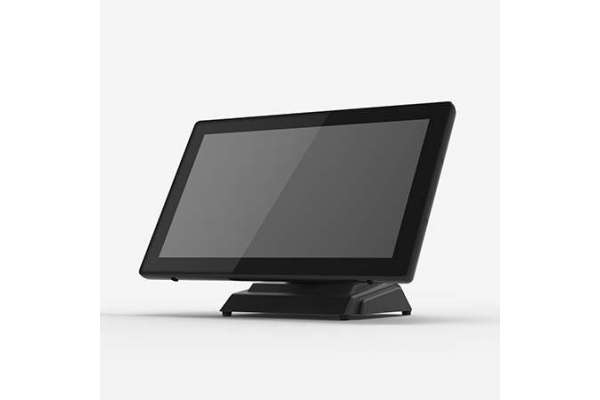

18.5" All-in-one POS System UTC-318PD with Intel® BayTrail J1900 UTC-318PE with Intel® Haswell i5-4300U

  • 18.5"TFT LCD (LED backlight) with Resistive or PCap touch
  • Fanless operation with Intel Baytrail or Haswell i5 processor
  • Support 3 Independent Displays
  • Unique stand base with color and logo customization on the back cover (optional)
  • Device Option: MSR, Smart Card, Camera, RFID, Barcode Scanner

Additional information

Processor System UTC-318PDP-ATB0E UTC-318PEP-ATB0E
CPU Intel® BayTrail J1900 Intel® Haswell Core i5-4300U
Basic Frequency 2.0 GHz (Quad-Core) 1.9GHz (Duo Core)
L2 Cache 2MB 3MB
Memory 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB
HDD 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network 2 x Gigabit Ethernet ports (RJ-45) 2 x Gigabit Ethernet ports (RJ-45)
I/O ports 1 x RS-232 (5V/12V) 1 x RS-232/422/485 3 x USB 2.0 / 1 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA 1 x Audio Line-out 1 x Mic-in 1 x RJ11 (12/24V) 1 x RS-232 (5V/12V) 1 x RS-232/422/485 (5V/12V) 2 x USB 2.0 / 4 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x HDMI (*HDMI to VGA cable, Optional) 1 x Audio Line-out 1 x Mic-in 1 x RJ11 (12/24V)
Stereo Speaker 1W x 2 1W x 2
BUS expansion Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA
Mounting VESA 100 x 100 VESA 100 x 100
Dimension(WxHxD) 475 x 295 x 43.5 mm 475 x 295 x 43.5 mm
Weight Wall mount type <5kg ; Stand base type <6.5 kg Wall mount type <5kg ; Stand base type <6.5 kg

OS support

Windows Embedded 8.1 Industry Pro 64bit

Windows Embedded Standard 8 64bit

Windows Pro Embedded 7 SP1 64bit

Windows Embedded Standard 7P 32bit Windows Embedded Standard 7E 32bit

Android 4.4

POSRready7 Linux

Windows Embedded 8.1 Industry Pro 64bit

Windows Pro Embedded 7 SP1 64bit

Windows Embedded Standard 7P 32bit

Windows Embedded Standard 7E 32bit

Android 4.4 POSRready7

POSReady 2009 Linux

Environmental Specifications

Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G
Shock 10 G peak acceleration (11 msec. duration) 10 G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CCC CB,BSMI CE, FCC, UL, CCC CB,BSMI
Front Panel Protection IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant

Power Supply

Input Rating 12 V/7 A (84W ITE Adapter) 12~30V/7A (84W ITE Adapter)
Power consumption

Typical 32W

Max. 70W

Typical 32W

Max. 70W

LCD Display

Size 18.5" TFT LCD 18.5" TFT LCD
Max Resolution 1366 x 768 1366 x 768
Max Color 16.7M 16.7M
Pixel Pitch (um) 300(H) x 300(V) 300(H) x 300(V)
Brightness (cd/m2 ) 250 (Typical) 250 (Typical)
View Angle 170°/160° 170°/160°
Touch Screen
Type Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass)
Light Transmission Res. Touch : 80% ± 5% / P-Cap Touch : 90% ± 2% Res. Touch : 80% ± 5% / P-Cap Touch : 90% ± 2%
Controller COM interface (Resistive T/S)/USB interface (PCap T/S) COM interface (Resistive T/S)/USB interface (PCap T/S)
