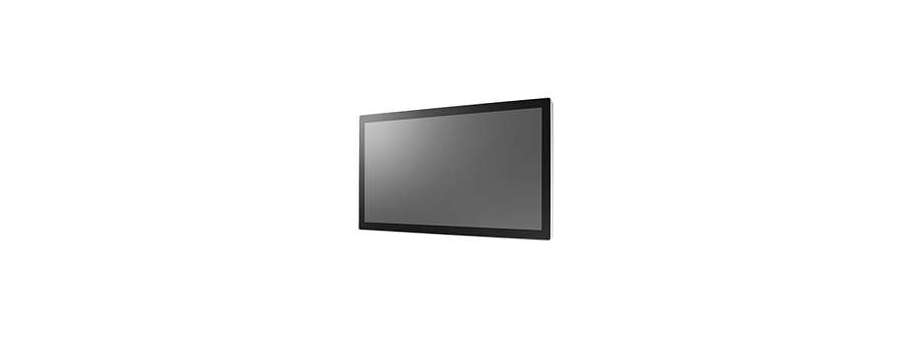

21.5" Ubiquitous Touch PC UTC-520GP-IOTW0E

21.5" Ubiquitous Touch PC UTC-520GP-IOTW0E with Intel® Pentium® N4200

Industrial Computer >> Computers for retail

Manufacturer: Advantech Co., Ltd.

UTC-520G features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces; fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Low power consumption and fanless design
  • Built in Intel® Pentium® N4200 processor
  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Aluminum frame with side groove design for flexible peripheral installation
  • Support both landscape and portrait orientation
  • Rich I/O and diverse peripheral options
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support Advantech WISE-PaaS/RMM
  • Support Windows, Android, and Linux operating systems

Additional information

Processor System UTC-520GP-IOTW0E
CPU Intel® Pentium® N4200 (UTC-520G)
Base Frequency 1.1 GHz (N4200/Quad-Core)
Cache L2 Cache 2MB
Memory 1 x 204 pin SO-DIMM DDR3L 1867 MHz up to 8GB
HDD 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
I/O ports

2 x RS-232 COM (RS-422/485)*

2 x USB2.0/ 2 x USB3.0

2 x Gigabit Ethernet (RJ-45)

1 x VGA & 1 x HDMI Audio Line-out x 1, Mic-in x 1

Stereo Speaker 3 W x 2
Bus expansion Full-size MiniPCIe / M.2
Mounting VESA 100 x 100 mm
Dimensions (W x H x D) 517.64 x 313.51 x 43.50 (mm)
Weight 8 kg (17.6 lb)

OS Support

Win 10 IoT Enterprise

Environmental Specifications


Operating Temperature 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G
Shock 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CB, CCC, BSMI
Front Panel Protection IP65/ NEMA4 Compliant

Power Supply


Input Rating 12 V/5 A (60 W ITE Adapter)
Power consumption Typical 40W Max. 50W

LCD Display


Size/Type 21.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080
Max. Color 16.7M
Pixel Pitch (um) 248.25 (H) x 248.25 (V)
Brightness (cd/m2 ) 250 (Optional 400)
View Angle 178°/178°

Touch Screen Option (PE/RE/GE)


Type Projected Capacitive.
Light Transmission 90% ± 2% / 80% ± 5% / 90%
Controller USB Interface / USB Interface / -
