2xLAN Capacity Touch DP FullHD Input 12V DC Input 24V DC Input Wide range Intel Core i5 Intel Core i7 IP65 IP66 MIL-STD-810 Military T range Passive Cooling Screen Size 19"

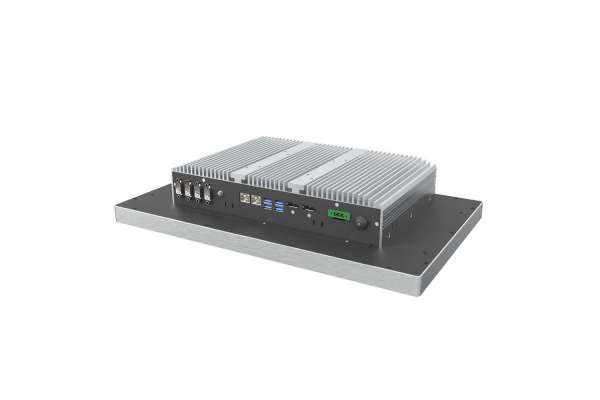

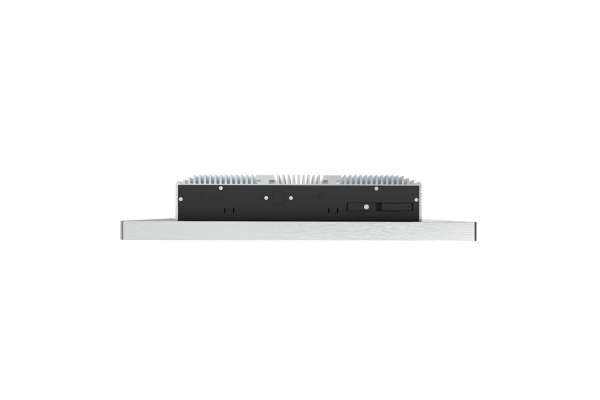

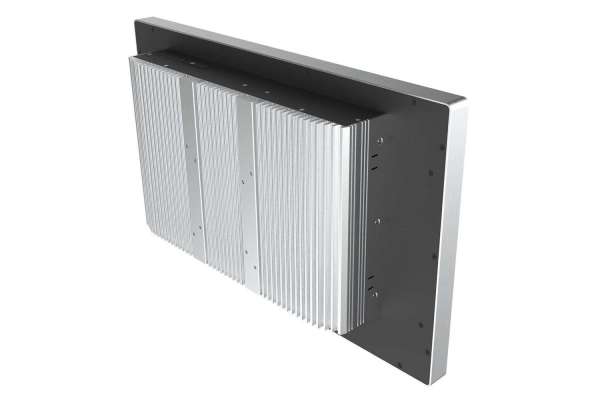

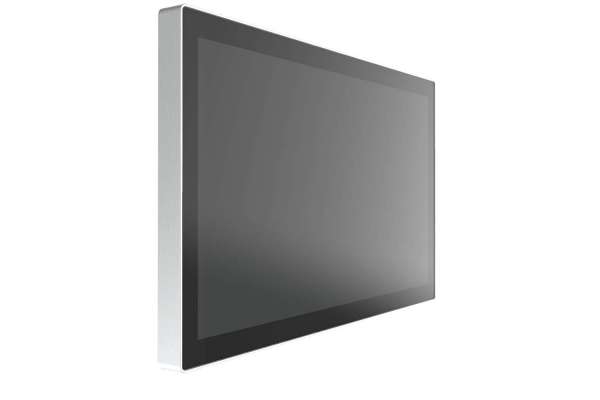

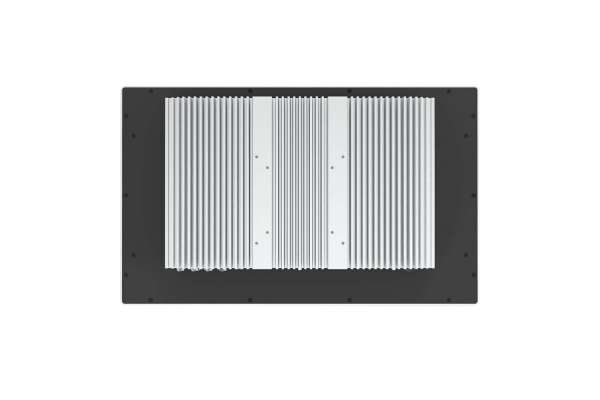

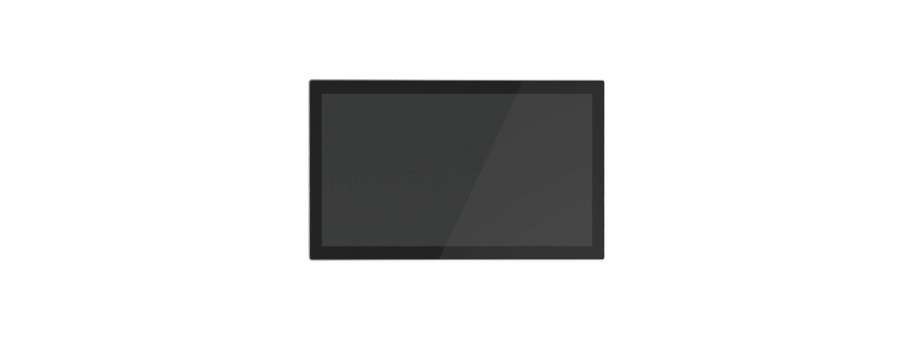

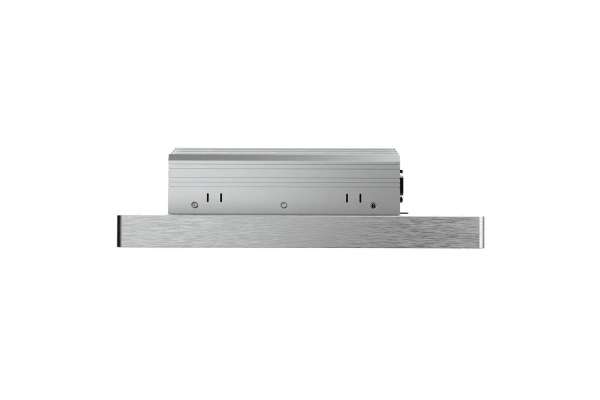

18.5" Bezel-Free P-cap PC on Intel® Tigerlake-U Core™ i5/i7 Processors, IP65 Aluminum Front Bezel ELGENS LPC-P185W

Manufacturer: ELGENS
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P185W-2VET5 Панельний комп'ютер Eldgens 18.5" (1920*1080) Bezel-Free P-cap Panel PC, Intel® Tigerlake-UP3 CoreTM i5-1145GRE, IP65 Aluminum F  180 899,0
LPC-P185W-2VET7 Панельний комп'ютер Eldgens 18.5" (1920*1080) Bezel-Free P-cap Panel PC, Intel® Tigerlake-UP3 CoreTM i7-1185G7E, IP65 Aluminum F  196 721,0

18.5" (1920*1080) Bezel-Free P-cap Panel PC ELGENS, Intel® Tigerlake-U Core™ i5/i7 Processors, IP65 Aluminum Front Bezel, Removable 2.5" HDD/SSD Tray, DC 9~55V Wide Range Power Input, -40~70°C LPC-P185W

  • Intel® Tigerlake-U Core™ i5/i7 Processors
  • 18.5" P-cap Flat Bezel
  • 1920*1080 Resolution LCD
  • Bezel-Free Design
  • Fanless Design
  • DC 9~55V Wide Range Power Inut
  • IP65 / 66 Front Panel
  • 3-Pin Power Input Terminal Block
  • Optional 1000 nits LED Backlight
  • Compliance with MIL-STD-810H

Additional information

System
Processor Intel® TigerLake-U CoreTM i5/i7 Processors
System Memory 1 x DDR4 SO-DIMM, up to 32GB

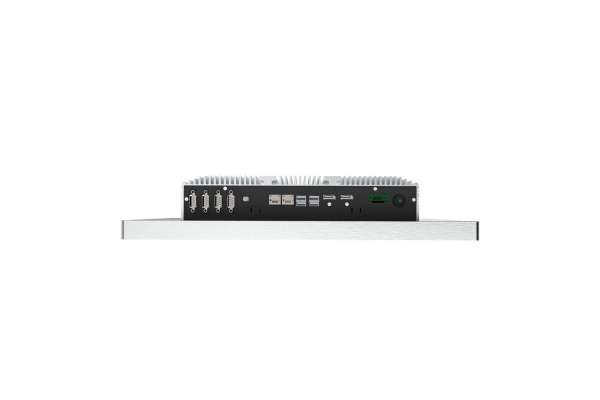

External I/O Port
  • 4 x USB Ports
  • 2 x RJ45 GbE LAN (Intel® I219LM for iAMT 12.0, I225-IT Supports 2.5GbE LAN)
  • 2 x Display Port
  • 4 x RS-232/422/485
  • 1 x Audio
  • 1 x Power press button
  • 1 x 3-Pin Terminal Block for Power Input
Storage
  • 1 x 2.5" Storage Bay
  • 1 x M.2 B-key 2260 Socket
Operating System Windows 10 IoT Enterprise LTSC
Expansion
  • 1 x M.2 B-key 3042/3052
  • 1 x M.2 E-key 2230

LCD
Display Type 18.5" TFT LCD
Max. Resolution 1920*1080
Max. Color 16.7M
Luminance 350 nits
View Angle 89/89/89/89
Backlight Lifetime 30,000 hours

Environment
Operating Temp -40~70 °C，IEC-60068-2-1/2/14
Storage Temp -40~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration
  • 514.8 Category 4, Test I, 5~500MHz
  • X/Y/Z Axes (Compliance)
Shock 516.8 Procedure I, 20G 11ms (Compliance)

Power Requirement
Power Input DC 9~55V Power Input

Touch Screen
Type 18.5" P-cap USB

Mechanical
Construction Aluminum Front Bezel and Metal Case
IP Rating Front Panel IP65 / IP66 Compliant

Mounting
  • VESA Mount 75 x 75 / 100 x 100
  • M4 Screw Hole
Dimension 450.45 x 275.58 x 84 mm
