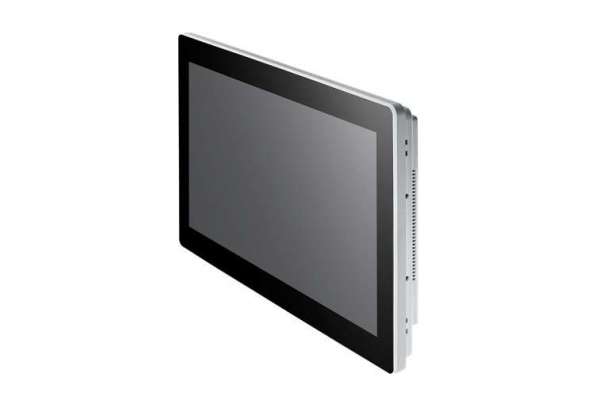

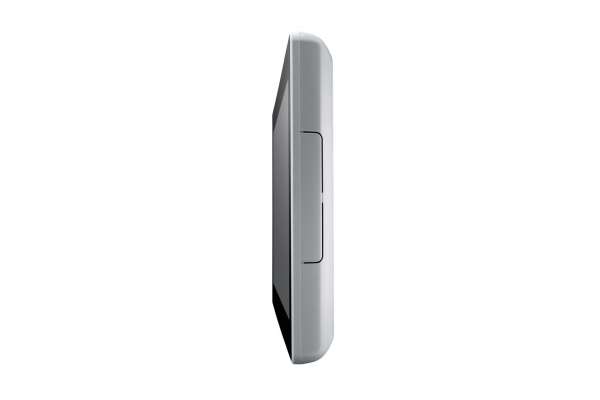

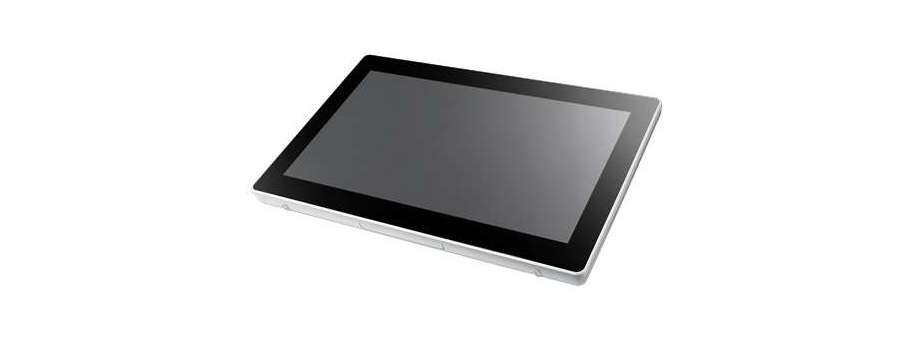

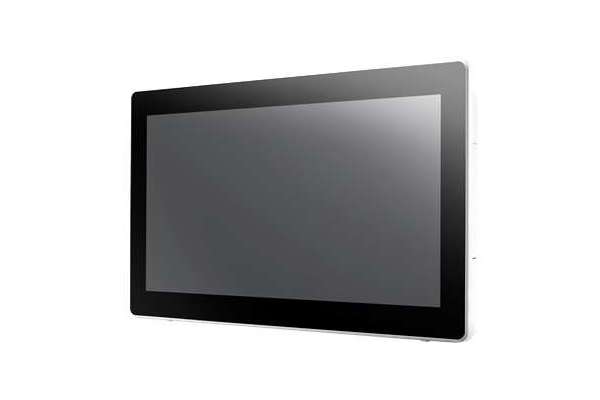

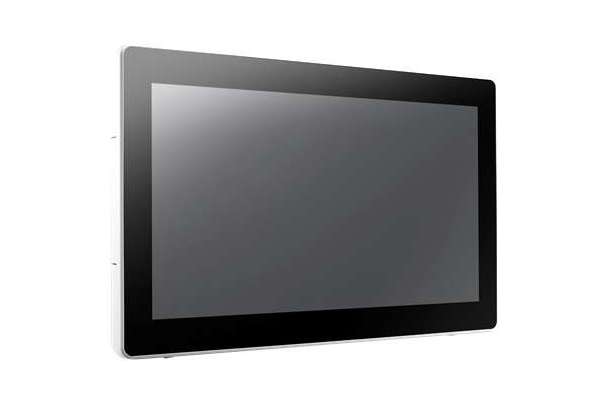

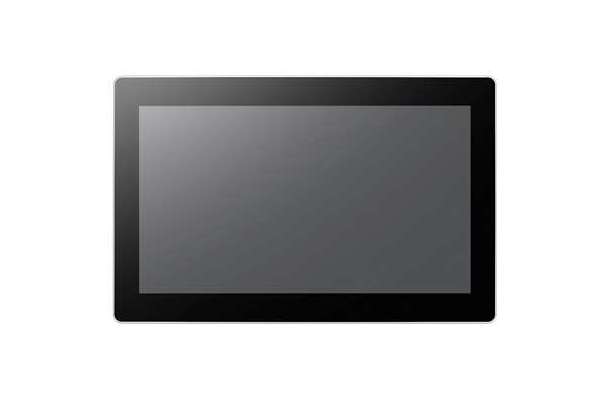

18.5" Ubiquitous Fanless Touch Computer and low power consumption and IP65 Front panel protected Advantech UTC-318
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UTC-318DP-ATB0E | Панельний комп'ютер для торгівлі Advantech UTC-318, 18.5", P-Cap touch,Celeron J1900,4G RAM,Black, з блоком живлення 12V, без ОС. | 80 228,3 | |
| UTC-318EP-ATB0E | Панельний комп'ютер для торгівлі Advantech UTC-318, 18.5" P-Cap touch,Haswell i5,4G RAM,Black, з блоком живлення 12V, без ОС. | 130 109,0 | |
| UTC-318FP-ATB0E | Панельний комп'ютер для торгівлі Advantech UTC-318, 18.5", P-Cap touch,Skylake i5, 4G RAM, Black, з блоком живлення 12V, без ОС. | 133 054,0 | |
| UTC-318GP-ATB0E | Панельний комп'ютер для торгівлі Advantech UTC-318, 18.5" P-Cap touch,N4200 12V,4G RAM,Black, з блоком живлення 12V, без ОС. | 87 769,3 | |
| UTC-318DP-ATW0E | Вбудований багатофункціональний панельний комп'ютер Advantech UTC 18.5" P-Cap touch,Celeron J1900,4G RAM,White,IT | 80 815,5 | |
| UTC-318FP-ATW0E | Вбудований багатофункціональний панельний комп'ютер Advantech UTC 18.5" P-Cap touch,Skylake i5,4G RAM,white | 133 154,0 | |
| UTC-318GP-ATW0E | Вбудований багатофункціональний панельний комп'ютер Advantech UTC 18.5" P-Cap touch,N4200 12V,4G RAM,White | 92 363,6 |
UTC-Series is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
- Fanless design
- High performance with low power consumption
- Built in Intel® Celeron® J1900/ Intel® Pentium® N4200(default)/ Celeron® N3350/ Intel® Core™ i5-6300U/ Intel Haswell Core i5-4300U
- Providing natural viewing experience with 16:9 18.5" display
- Front panel complies with IP65 protection standard
- Landscape and portrait screen modes support different applications

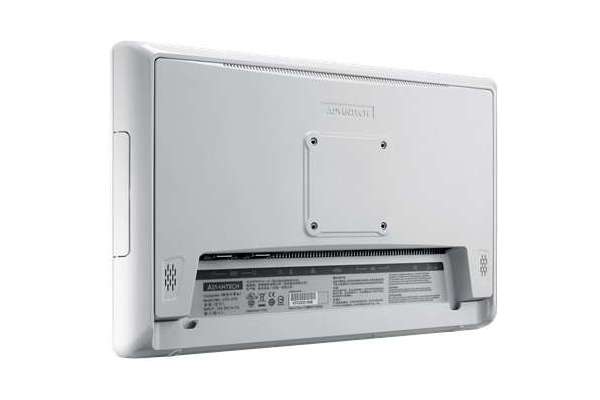

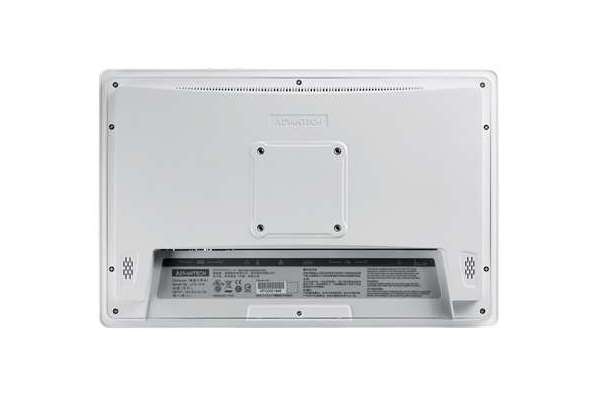

- VESA 100 mm standard mounting holes for varied mounting demands
- Detachable frame design for panel mount applications
Additional information
| Part Number | UTC-318DP-ATB0E | UTC-318EP-ATB0E | UTC-318FP-ATB0E | UTC-318GP-ATB0E |
Display |
||||
| Size | 18.5" TFT LCD (1366 x 768) | 18.5" TFT LCD (1366 x 768) | 18.5" TFT LCD | 18.5" TFT LCD |
Processor |
||||
| CPU | Intel® Celeron® J1900 | Intel® Core™ i5-4300U | Intel® Core™ i5-6300U | Intel® Pentium® N4200 (Default) Intel® Celeron® N3350 (Available) |
| Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | ||
| RAM | 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB | 1 x SO-DIMM DDR4 2133 MHz up to 16 GB | ||
Touch Screen |
||||
| Type | Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel | Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel | Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel | Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel |
Color |
||||
| Color | Black | Black | Black | Black |
Power |
||||
| Input Rating | 12 V/7 A (84W ITE Adapter) *12-30V Optional | 12-30V/7A (84W ITE Adapter) | 12-30V/7A (84W ITE Adapter) | 12 V/7 A (84W ITE Adapter) *12-30V Optiona |
