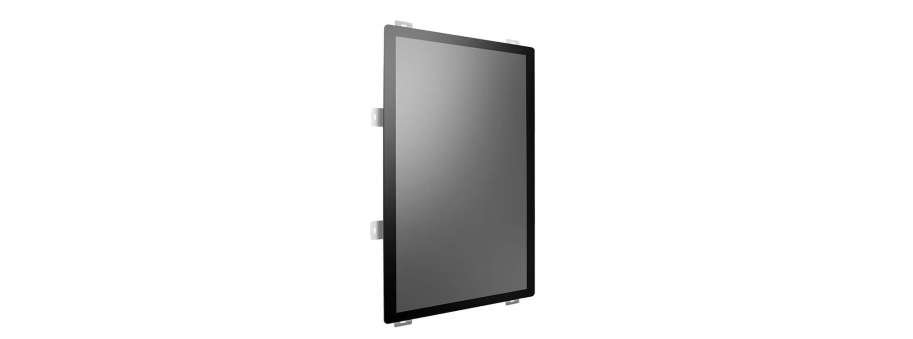

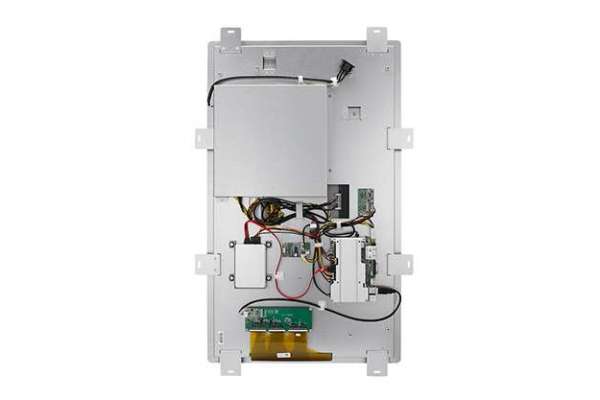

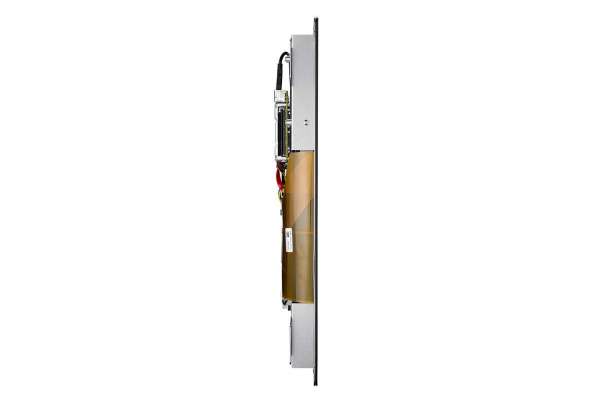

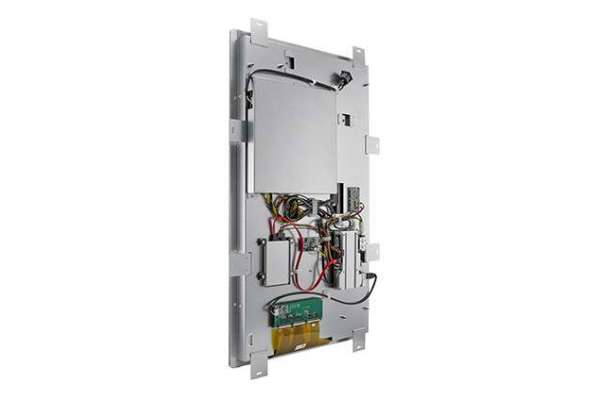

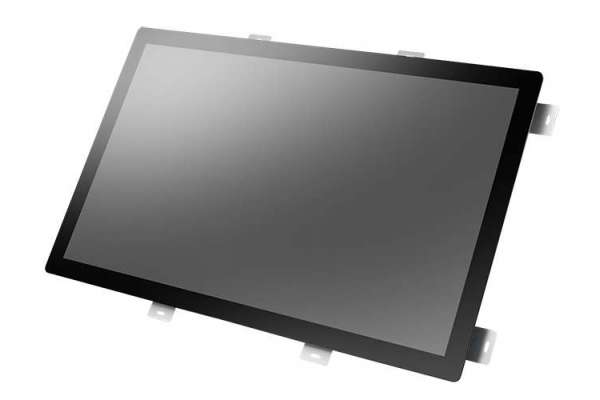

42.5" Open-frame panel PC Advantech UTC-242F with Intel® Core™ i5-6300U UTC-242G or Intel® Pentium® N4200

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-242FP-ATO0E 42.5" PCT/S w/Core i5-6300U, 4GB, Open Frame  222 834,0

UTC-242 features one-piece solution and fan-less design that easy to embedded into kiosk chassis or wall mount type. It is easy to integrate key peripherals for diversified selfservice and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Available for embedded into kiosk chassis and wall mount type
  • Built-in Intel® Core™ i5-6300U (UTC-542F)
  • Built-in Intel® Pentium® N4200 (UTC-542G)
  • 42.5" monitor with 16:9 widescreen display
  • Supports both landscape and portrait screen orientations

Additional information

Processor System

CPU
  • Intel® Core™ i7-6600U (Available)*
  • Intel® Core™ i5-6300U (UTC-242F)
  • Intel® Core™ i3-6100U (Available)*
  • Intel® Pentium® N4200 (UTC-242G)
  • Intel® Atom® E3950 (Available)*
Base Frequency 2.4 GHz (Dual-Core)
  • 1.1 GHz (N4200/Quad-Core)
  • 1.6 GHz (E3950/Quad-Core)
Cache 3 MB L2 Cache 2MB
Memory 2 x SO-DIMM DDR3L 1600Mhz up to 16G 1 x SO-DIMM DDR3L 1867 MHz
HDD/SSD Dual hot-swappable HDD/SSD slots with RAID 0,1 support Dual hot-swappable HDD/SSD slots with RAID 0,1 support
Network (LAN) 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
I/O Ports
  • 2 x RS-232 COM (RS-422/485)*
  • 3 x USB 2.0 / 2 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x VGA
  • 1 x HDMI
  • 2 x RS-232 COM (RS-422/485)*
  • 3 x USB 2.0 / 2 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x VGA
  • 1 x HDMI
Stereo Speaker 10W x 2 (Optional) 10W x 2 (Optional)
Bus expansion Full-size MiniPCIe/mSATA Full-size MiniPCIe / M.2
Dimensions (W x H x D)
  • 990.6 x 578.8 x 60.2mm (Mirror Glass)
  • 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*)
  • 990.6 x 578.8 x 60.2mm (Mirror Glass)
  • 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*)
Weight 24.6 kg 24.6 kg

OS Support

  • Windows Pro Embedded 7 SP1 64bit
  • Win 10 IoT Enterprise
  • Linux
  • Win 10 IoT Enterprise
  • Android 6.0/8.1/10
  • Linux

Environmental Specifications

Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G
Shock 5 G peak acceleration (11 msec. duration) 5 G peak acceleration (11 msec. duration)

Power

Input Rating 100-240VAC ~ 50/60Hz 3.7A 100-240VAC ~ 50/60Hz 3.7A

LCD Display

Size/Type 42.5" TFT LCD with LED backlight 42.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080 1920 x 1080
Pixel Pitch (mm) 0.49 (H) x 0.49 (W) 0.49 (H) x 0.49 (W)
Brightness (cd/m2 ) 450 nits 450 nits
View Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Touch Screen Option (PE/GE)Touch Screen Option (PE/GE)
Type Projected Capacitive Touch Panel / Mirror Glass Panel (No touch function) / Mirror Projected Capacitive Touch Panel* Projected Capacitive Touch Panel / Mirror Glass Panel (No touch function) / Mirror Projected Capacitive Touch Panel*
Light Transmission >90% (Pure Glass); >25% (Mirror Coating) >90% (Pure Glass); >25% (Mirror Coating)
Controller USB Interface USB Interface
