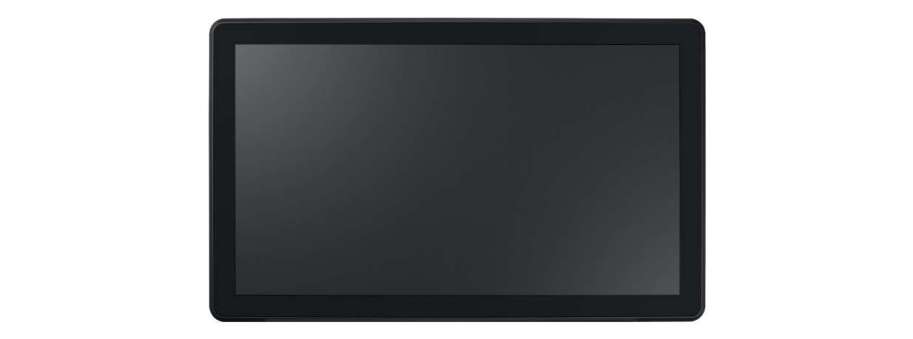

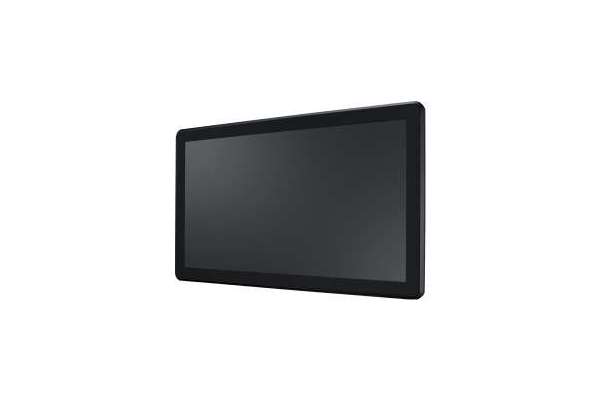

Ubiquitous Touch Computer with Intel® Core™ 12th–14th Gen Processor Advantech UTC-320SL
- Fan SKU and Fanless SKU system design
- Socket Type CPU with Intel® Core™ 12th/13th/14th Gen processor
- Multiple power input options (Power Din 4 pins/Terminal Block)
- 21.5" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance

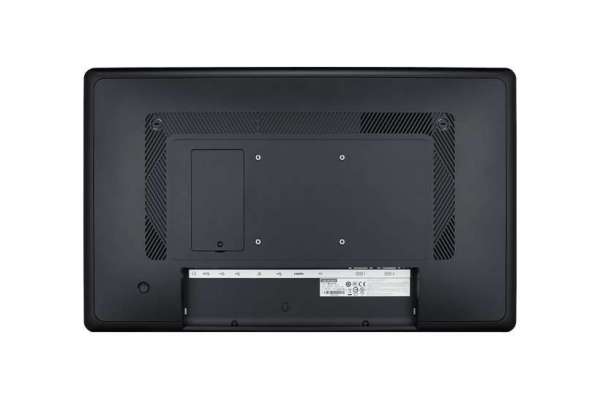

- VESA 100 mm standard mounting holes for varied mounting demands
- Detachable frame design for panel mount applications
- Support DeviceOn/iService software for remote device management
- Support TPM 2.0
UTC-320SL series all-in-one computer features a signature black plastic exterior and a compact system design, including socket type CPUs, multiple cooling solutions (Fan SKU & Fanless SKU), and power connector options. Powered by an Intel® Core™ 12th/13th/14th Gen processor that supports Windows, and Linux OS. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
Processor System |
|||||
| CPU | i3-14100T | i5-14400T | i5-14500T | i7-14700T | i9-14900T |
| Basic Frequency | 2.7 GHz+0 GHz (4P+0E Cores) | 1.5 GHz+1.1 GHz (6P+4E Cores) | 1.7 GHz+1.2 GHz (6P+8E Cores) | 1.3 GHz+900 MHz (8P+12E Cores) | 1.1 GHz+800 MHz (8P+16E Cores) |
| L2 Cache | 5MB | 9.5MB | 11.5MB | 28MB | 32MB |
Additional information
Processor System |
|
| TDP | 35W (65W CPU is optional) |
| Memory | 1 x DDR5 262PIN 4800Mhz SO DIMM up to 32GB |
| Network | 2 x Gigabit Ethernet ports (RJ-45) |

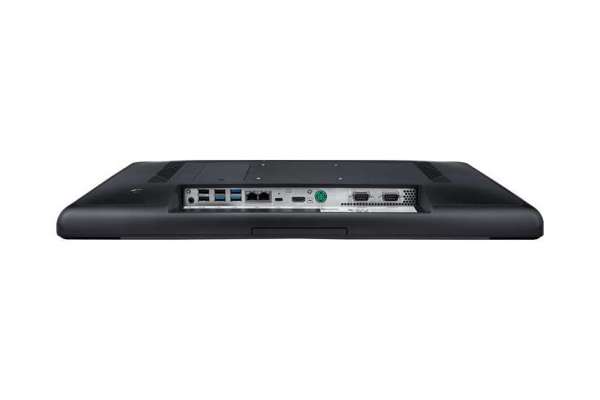

| I/O ports |
|
| Stereo Speaker | 2W x 2 |
| BUS expansion |
|
| Mounting | VESA 100 x 100; Screw Size: M4, 10mm |

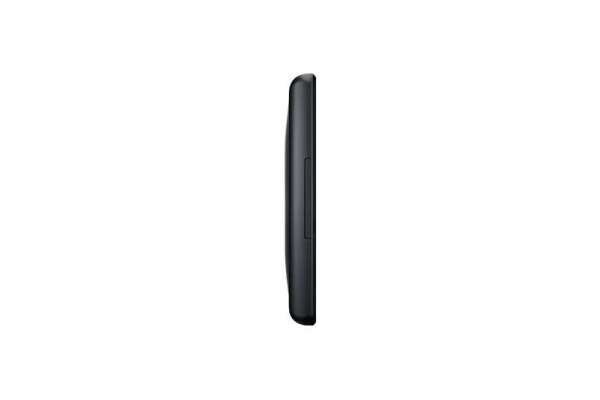

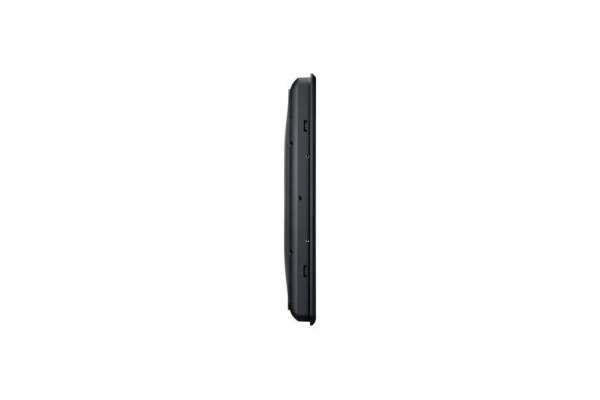

| Dimension (W x H x D) | 536 x 327.5 x 46 mm (Fan SKU) / 536 x 327.5 x 61 mm (Fanless SKU) |
| Weight | 5.8 kg (Fan SKU) / 6.8 kg (Fanless SKU) |
Security |
|
| TPM 2.0 | Support |
| OS support | Win 10 IoT Enterprise 64bit / Win 11 IoT Enterprise 64bit / Linux |
Environmental Specifications |
|
| Operating Temperature |
|
| Relative Humidity | 10 ~ 95% @ 40° C non-condensing |
| Vibration | 0.5G |
| Shock | 10 G peak acceleration (11 msec. duration) |
| EMC/ Safety | UL, FCC, CE, BSMI, CCC, CB |
| Front Panel Protection | IP65 |
Power Supply |
|
| Input Voltage | 12-24 VDC |
| Power Consumption | Typical 80W, Max 150W |
| Adapter | 24V=7.5A. 180W Adaptor only available for Power Din 4pin I/O port |
LCD Display |
|
| Size | 21.5" TFT LCD |
| Max Resolution | 1920 x 1080 |
| Max Color | 16.7M |
| Pixel Pitch (um) | 247.95 (H) x 247.95 (V) |
| Brightness (cd/m2) | 250 (Typical) |
| View Angle | 178°/178° |
Touch Screen |
|
| Type | Projected Capacitive Touch Panel (Pcap. Flat Glass) |
| Light Transmission | ≥86% |
| Controller | USB interface |
