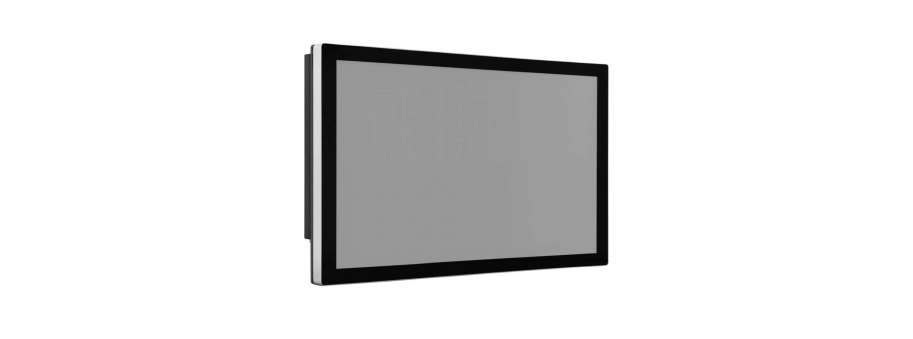

IP65/66 Bezel-Free P-cap Monitor, VGA/DP/HDMI, Panel Mounting Kits, and Power Input DC 12V ELGENS TDM-P215WT
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| TDM-P215WT | Промисловий монітор Eldgens TDM-P215WT 24" Bezel-Free P-cap Monitor, Wide Temp, IP65 Aluminum Front Bezel, VGA/DP/HDMI & IEC-609 | 90 539,9 | |
| TDM-P215W | Промисловий монітор Eldgens TDM-P215W, 21.5" Bezel-Free P-cap Monitor, IP65 Aluminum Front Bezel, VGA/DVI/HDMI, DC 12V, (-20 ~ 60 °C) | 108 924,0 | |
| TDM-P215WE | Промисловий монітор Eldgens TDM-P215WE 21.5" P-cap Monitor, Metal Bezel, VGA/DVI/HDMI, DC 12V, Optional 9~36VDC | 75 986,1 |
- IPS Wide Viewing Angle
- Bezel-Free Design
- IP65 Front Bezel
- IP66 Front Bezel Compliant
- VGA/DP/HDMI
- USB Port for Touch
- DC 12V Power Input (Optional DC9~36V)
- Optional 256 Levels Dimming
- Optional OSD in Front Right Side
- Optional IEC-60945 Compliance
- Optional 1000 nits High Brightness Optional M12 Metal Connector
- Backside OSD Buttons
- Optional Anti-UV / Irradiation
- Optional Color Calibration / ECDIS
Additional information
Specification |
|
| Max. Resolution | 1920*1080 |
| Contrast Ratio | 5000 : 1 |
| Max. Color | 16.7 M |
| Luminance (cd/m2) | 500 nits Optional backlight 1000~1500 nits |
| View Angle | 89/89/89/89 |
| Touch Screen | 21.5" P-cap USB interface |
| Power Input | DC 12V with DC 12V adapter by 3-Pin Terminal Block |
| Mounting |
|
| Operating Temp | -40 ~ 80 °C / -20 ~ 60 °C |
| Storage temp | -40 ~ 80 °C / -20 ~ 60 °C |
| OSD Function |
1. Power 2. Backlight Up 3. Back light Down 4. Home 5. Status switch 6. LED for Day, Noon and Night status (Optional Only for ECDIS) |
