21.5" Ubiquitous Touch Computer Advantech UTC-120 with Intel® Core™ i5-8365UE or Pentium® N4200

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-120HP-WWW1E 21.5" Pcap,8365UE,4G RAM,128G SSD,Win10,WF,Sil.  124 850,0
UTC-120HP-WEU1E 21.5" Pcap,FHD,8365UE,8G RAM,256G SSD,Win10,WF,S  127 768,0
UTC-120HP-WEF1E 21.5" Pcap,FHD,i3,8G RAM,128G SSD,Win10,WF,S  106 547,0
UTC-120GP-WWW1E 21.5" Pcap,N4200,4G RAM,128G SSD,Win10,WF,Sil.  80 702,6
UTC-120GP-NWW0E 21.5" Pcap,N4200,4G RAM,128G SSD,Silver  73 060,8
UTC-120GP-AWW1E 21.5" Pcap,N4200,4G RAM,128G SSD,WF,Android  75 235,7
UTC-120GP-WEU1E 21.5" Pcap,N4200,4G RAM,128G SSD,Win10,WF,Sil.  81 634,7
UTC-120GP-AWW1E 21.5" Pcap,N4200,4G RAM,128G SSD,WF,Android  75 235,7

UTC-120 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. Thanks for the slim and light looking with 3 way cable routing design, makes UTC-120 good fit to diverse scenarios and areas. The systems deliver updated information with well-designed interactive interfaces, with fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

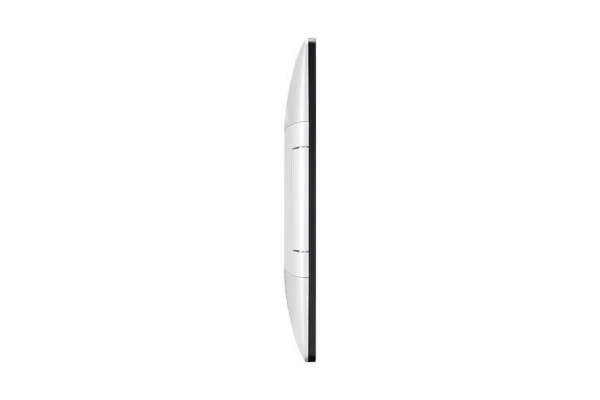

  • Slimmer and Lighter design
  • Low power and fanless system design
  • Built-in Intel® Core™ i5-8365UE or Pentium® N4200

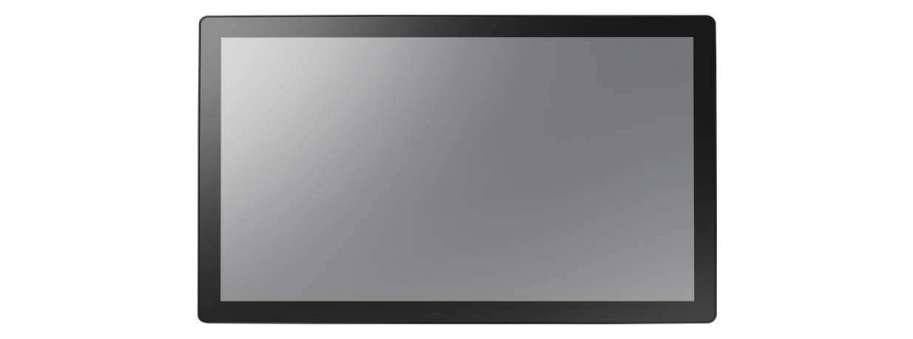

  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance

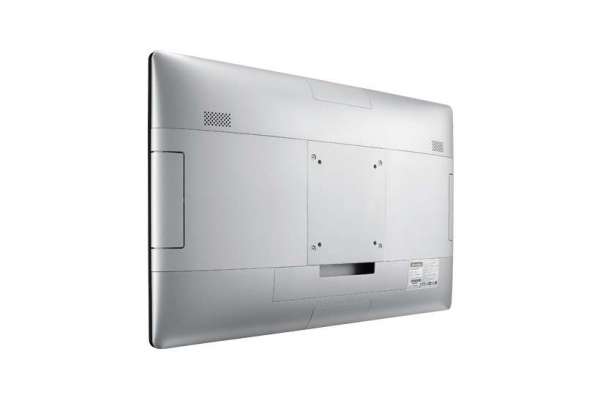

  • Clean back cover design with 3 Way IO cable routing

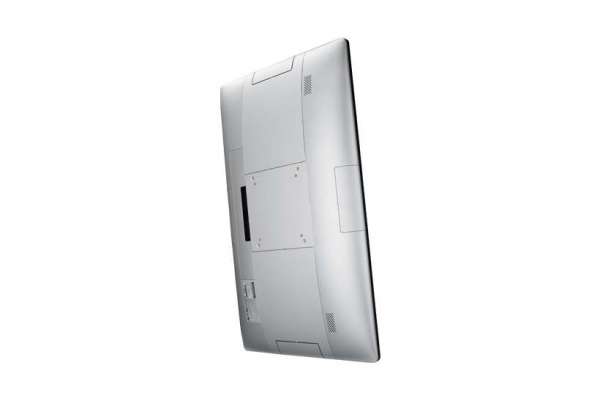

  • Supports both landscape and portrait screen orientations

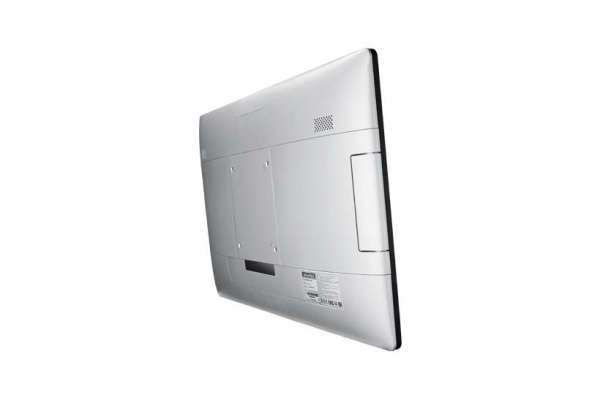

  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support DeviceOn/iService software for remote device management

Additional information

Process system

UTC-120H UTC-120G
CPU Intel® Core™ i5-8365UE (UTC-120H) (Intel Vpro support) Intel® Pentium® N4200 (UTC-120G)
Base Frequency 1.10 GHz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core)
Memory 1 x 260 pin SO-DIMM DDR4 2400 MT/s up to 16GB 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB
Storage M.2 2242/2280 SSD 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage
Network 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
I/O Ports
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 4 x USB3.0
  • 2 x Gigabit Ethernet ports
  • 1 x HDMI 1.4
  • 1 x Audio Phone Jack
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 4 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports
  • 1 x HDMI 1.4
  • 1 x Audio Phone Jack
Stereo Speaker 2 x 2W 2 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Mounting VESA 100 x 100 mm (Screw Size, M4, 7mm) VESA 100 x 100 mm (Screw Size, M4, 7mm)
Dimension (WxHxD) 523.9 x 315.4 x 39.5 523.9 x 315.4 x 39.5
Weight 5.29kg 5.29Kg

OS Support

  • Win 10 IoT Enterprise 64bit
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Android 10.1
  • Linux

Environment Specification

Operating temperature 0 ~ 35 °C (32 ~ 95 °F)* 0 ~ 40 °C (32 ~ 104 °F)*
Relative Humidity 10 ~ 95% @ 40 °C non-condensing 10 ~ 95% @ 40 °C non-condensing
Vibration 0.5G 0.5G
Shock Shock 10G peak acceleration(11 msec. duration) Shock 10G peak acceleration (11 msec. duration)
Certification CE, FCC, CB, UL, CCC, BSMI CE, FCC, CB, UL, CCC, BSMI
Front Panel Protection IP 65 Compliant IP 65 Compliant

Power Supply

DC Input Rating 12V/7A (84W ITE Adapter) 12V/7A (84W ITE Adapter)
PoE n/a n/a
Power consumption 60W 43.5W

LCD Display

Size/Type 21.5" FHD 21.5" FHD
Max.Resolution 1920 x 1080 1920 x 1080
Max. Color 16.7M 16.7M
Pixel Pitch (um) 248.25(H) x 248.25(V) 248.25(H) x 248.25(V)
Brightness (cd/m2 ) 250/400 250
View Angle 178° /178° 178° /178°

Touch Screen Option

Type Projected Capacitive. Projected Capacitive.
Light Transmission 80% ± 5% / 90% 80% ± 5% / 90%
Controller USB Interface USB Interface

TPM

TPM 2.0
