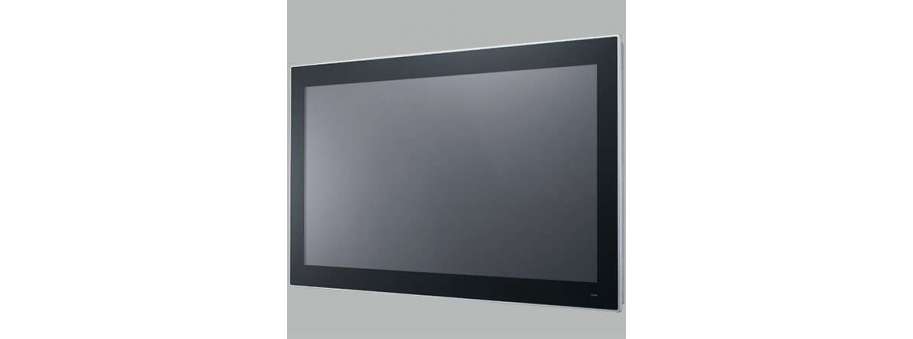

23.8" Fanless Widescreen Panel PC Advantech with Intel® Pentium® N4200 Quad-Core Processor PPC-324W-PN4

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-324W-PN40A Панельний комп'ютер Advantech PPC-324, 23.8", Intel PENTIUM N4200, Fanless Panel PC  78 548,7
PPC-324W-PN40AO Промисловий панельний комп'ютер Advantech PPC-324W-PN40A w/o audio function  78 548,7
PPC-324W-PN40AU Панельний комп'ютер Advantech PPC-324, 23.8", Intel PENTIUM N4200, Fanless Panel PC  81 961,1

The PPC-324W-PN4 is a high-value, ultra-slim panel PC equipped with a 23.8" industrial-grade LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-324W-PN4 features an IP65-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

  • 23.8" true-flat TFT LCD with projected capacitive touch control
  • Fanless design with low power consumption
  • Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
  • Configurable RS-232/422/485 ports via BIOS
  • Automatic data flow control over RS-485
  • Wide range DC support (12 ~ 24 VDC)
  • Supports dual displays
  • IP65-rated front panel

Additional information

System

CPU Intel Pentium® N4200 quad Core
Frequency 1.1GHz, turbo boot to 2.5GHz
L2 Cache 3 MB
Memory 1 x SODIMM, DDR3L 1600/1866, max. 8 GB
Storage
  • 1 x 2.5" SATA bay (optional; requires a bracket module for installation)
  • 1 x mSATA bay
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT)

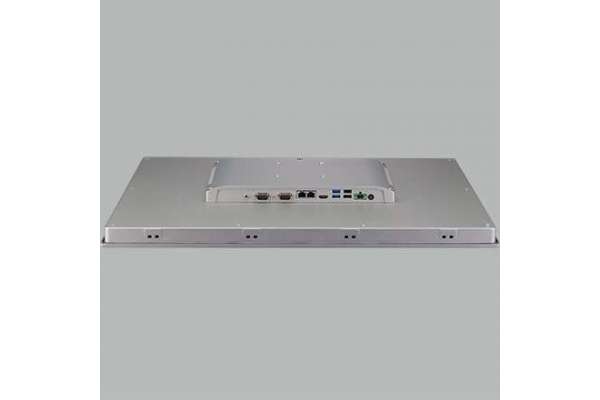

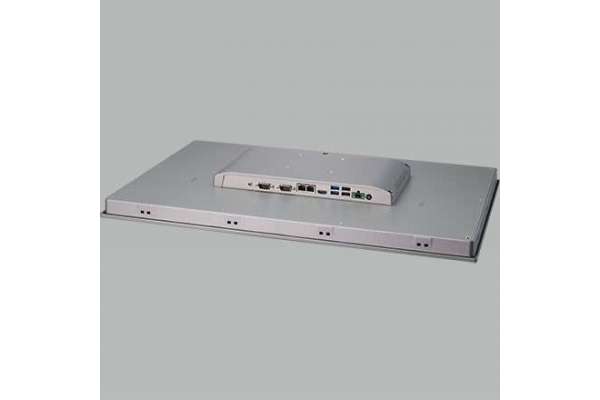

I/O
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485
  • 2 x USB 3.0, 2 x USB 2.0
  • 1 x Line-out
  • 1 x HDMI
Expansion 1 x Mini PCIe
Watchdog Timer 255 timer levels, set up by software
Speaker 2 x 1W

Physical Characteristics

Dimensions 595.9 x 374.1 x 58.4 mm (23.5" x 14.7" x 2.3")
Weight 8.4 kg (18.5 lb)
OS Support Microsoft® Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1

Power Comsumption

Input Voltage 12 ~ 24 VDC
Power Consumption 70W

LCD

Display Type 23.8" TFT LCD (LED backlight)
Max. Resolution 1920 x 1080
Viewing Angle 89 (Left), 89 (Right), 89 (Up), 89 (Down)
Luminance (cd/m2) 350
Contrast Ratio 1000
Backlight Lifetime 30,000 hr

Touchscreen

Touch Type 10-point multi-touch projected capacitive
Light Transmission ≥ 85%
Controller USB Interface

Environment

Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F) with SSD
  • 0 ~ 40 °C (32 ~ 104 °F) with HDD
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (Non-Condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64
EMC CE, FCC Class B, BSMI, EN 60601-1-2
Safety CB, UL, CCC
Front Panel Protection IP65 compliant
