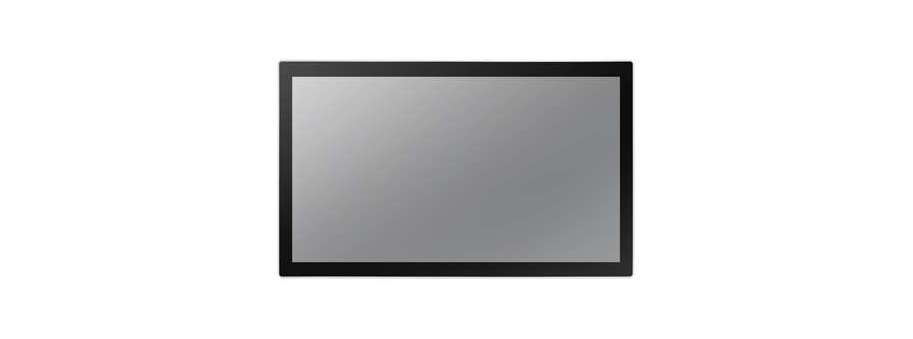

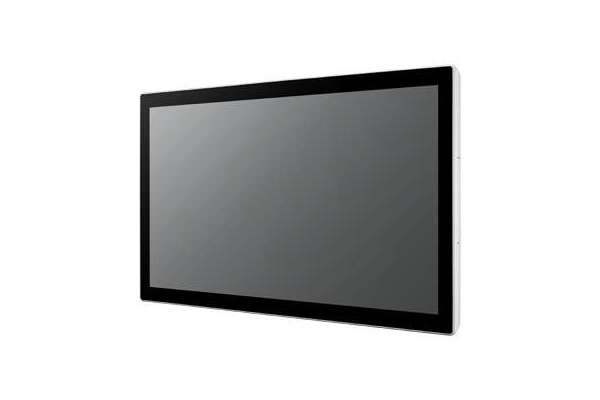

21.5" Ubiquitous Touch Computer Advantech built in Intel Celeron® J1900 (UTC-320D), Core™ i5-6300U (UTC-320F) and, Pentium® N4200E (UTC-320G) and Intel® Core™ i5-8365UE (UTC-320H)

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-320DR-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" Res touch,Celeron J1900,4G RAM,Black  84 435,1
UTC-320DP-ATB0E Комп'ютерна система Advantech UTC-320, 21,5 "P-Cap touch, Celeron J1900, пам'ять 4G, чорний  83 282,4
UTC-320FR-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" Resistive touch,Skylake i5,4G RAM,Black  129 988,0
UTC-320FP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" P-Cap touch,Skylake i5,4G RAM,Black  128 836,0
UTC-320GR-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" Res touch,Apollolake N4200,4G RAM,Black  90 161,8
UTC-320GP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" P-Cap,Apollolake N4200,4G RAM,Black  89 009,7
UTC-320HR-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" Resistor,FHD 250nits,i5-8365UE,4G ,Black  135 576,0
UTC-320HP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" Pcap,FHD 250nits,i5-8365UE,4G ,Black  134 425,0

UTC-320 is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame , the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Moreover, UTC-320 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

  • Low power and fanless system design
  • Built in Intel Celeron® J1900 (UTC-320D), Core™ i5-6300U (UTC-320F) and, Pentium® N4200E (UTC-320G) and Intel® Core™ i5-8365UE (UTC-320H)
  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Supports both landscape and portrait screen orientations

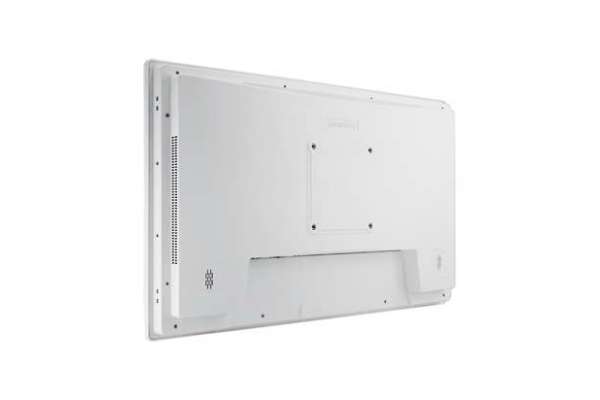

  • VESA 100 mm standard mounting holes for varied mounting demands
  • Detachable frame design for panel mount applications
  • Support DeviceOn/iService software for remote device management (UTC-320D/F only)
  • Support TPM 2.0 (UTC-320F&H)

Additional information

Processor System

UTC-320D

UTC-320F

UTC-320G

UTC-320H

CPU Intel® Celeron® J1900
  • Intel® Core™ i5-6300U (Default)
  • Intel® Core™ i3-6100U (Available)
  • Intel® Pentium® N4200E (Default)
  • Intel® Celeron® N3350 (Available)
  • Intel® Core™ i5-8365UE (Default)
  • Intel® Core™ i3-8145UE (Available)
Basic Frequency 2.0 GHz (Quad-Core) 2.4GHz (Duo Core) 1.10 GHz (Quad-Core) 1.6GHZ(Quad-Core)
Cache L2 Cache MB - L2 Cache 2MB L3 Cache 3MB
Memory 1 x 204pin SO-DIMM DDR3L 1333 MHz up to 8 GB 1 x 260pin SO-DIMM DDR4 2133 MHz up to 16 GB 1 x 204pin SO-DIMM DDR3L 1866 MHz up to 8GB 1X 260pin SO-DIMM DDR4 2400 MHZ up to 32GB
HDD 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network 2 x Gigabit Ethernet ports (RJ-45) 2 x Gigabit Ethernet ports (RJ-45) 2 x Gigabit Ethernet ports (RJ-45) 2 x Gigabit Ethernet ports (RJ-45)

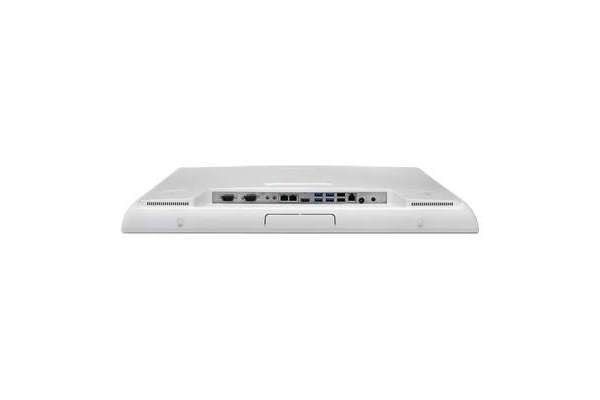

I/O ports
  • 1 x RS-232
  • 1 x RS-232 / 422 / 485
  • 5 x USB 2.0 / 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI Audio
  • Line-out x 1, Mic-in x 1
  • 1 x RS-232
  • 1 x RS-232/422/485
  • 2 x USB 2.0 / 4 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x RJ-11
  • Audio Line-out x 1, Mic-in x 1
  • 1 x RS-232
  • 1 x RS232 / 422 /485
  • 2 x USB 2.0 / 4 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x RJ11
  • Audio Line-out x 1, Mic-in x 1
  • 1 x RS-232
  • 1 x RS-232/485
  • 6 x USB 3.1
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x DP Audio Line-out x 1, Mic-in x 1
Stereo Speaker 2Wx2 2Wx2 2Wx2 2Wx2
BUS expansion Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA M.2 2230/mSATA M.2 2280 (NVMe) or M.2 2242 / M.2 2230
Mounting VESA 100 x 100; Screw Size: M4, 10mm VESA 100 x 100; Screw Size: M4, 10mm VESA 100 x 100; Screw Size: M4, 10mm VESA 100 x 100; Screw Size: M4, 10mm
Dimension (W x H x D) 520.2 x 316.1 x 45.9 mm 520.2 x 316.1 x 45.9 mm 520.2 x 316.1 x 45.9 mm 520.2 x 316.1 x 45.9 mm
Weight 6.5 Kg 6.5 Kg 6.5 Kg 6.5 Kg

Security

TPM2.0 - Support Optional Support
OS support
  • WES 7P 32bit
  • WES 7E 32bit
  • Windows Pro Embedded 7 SP1 64bit
  • WE8S 64bit
  • Windows Embedded 8.1 Industry
  • Pro 64bit
  • Win 10 IoT Enterprise 64bit
  • Linux
  • Android 6.0
  • WES 7P 32bit
  • WES 7E 32bit
  • Windows Pro Embedded 7 SP1 64bit
  • WE8S 64bit Windows Embedded 8.1 Industry
  • Pro 64bit
  • Win 10 IoT Enterprise 64bit
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Android 10.0
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Linux
Environmental Specifications
Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G 0.5G 0.5G
Shock 10 G peak acceleration (11 msec. duration) 10 G peak acceleration (11 msec. duration) 10 G peak acceleration (11 msec. duration) 10 G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CCC CB,BSMI CE, FCC, UL, CCC CB,BSMI CE, FCC, UL, CCC CB,BSMI CE, FCC, UL, CCC CB,BSMI
Front Panel Protection IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant

Power Supply

Input Voltage 12VDC *12-30VDC Optional 12-30VDC 12VDC *12-30VDC Optiona 12-30VDC
Power Consumption Typical 45W, Max. 80W Typical 45W, Max. 80W Typical 45W, Max. 80W Typical 45W, Max. 80W
Adapter 12V 7A, 84W or 12V 8A, 96W ITE adapter (dependent on stock) 12V 7A, 84W or 12V 8A, 96W ITE adapter (dependent on stock) 12V 7A, 84W or 12V 8A, 96W ITE adapter (dependent on stock) 12V 7A, 84W or 12V 8A, 96W ITE adapter (dependent on stock)

LCD Display

Size 21.5" TFT LCD 21.5" TFT LCD 21.5" TFT LCD 21.5" TFT LCD
Max Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Max Color 16.7M 16.7M 16.7M 16.7M
Pixel Pitch (um) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V)
Brightness (cd/m2 ) 250 (Typical) 250 (Typical) 250 (Typical) 250 (Typical)
View Angle 178°/178° 178°/178° 178°/178° 178°/178°

Touch Screen

Type Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Light Transmission 90% ± 2% / 80% ± 5% / 90% 90% ± 2% / 80% ± 5% / 90% 90% ± 2% / 80% ± 5% / 90% 90% ± 2% / 80% ± 5% / 90%
Controller COM interface / USB interface COM interface / USB interface COM interface / USB interface COM interface / USB interface
