24" TFT-LCD display MTD-4024С

24" TFT-LCD display 10-point Multi-Touch projected capacitive, IP65 front panel MTD-4024С

System Components >> Industrial LCD monitors and kits

Manufacturer: Vecow

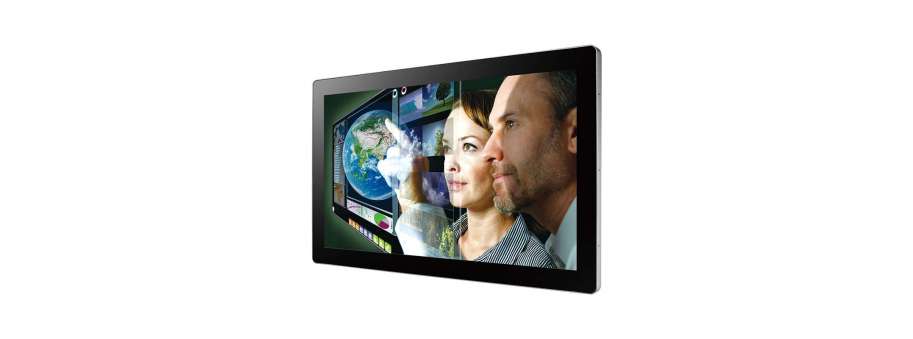

MTD-4024 is a 24" 16:9 Full HD (1920x1080) TFT-LCD display that featured with higher reliability 10-point Multi-Touch projected capacitive screen specifically designed for industrial applications. This elegant monitor provides precise image and reliable 24/7 non-stop operation. IP65 front panel and 0°C to 50°C wide temperature helps to protect the display from harsh environments. It also supports VGA, DVI and HDMI video inputs, Panel and VESA mount allowing system developer to easily incorporate MTD-4024 into a wide range of applications. It is an ideal partner for Smart Manufacturing, Gaming, Intelligent Surveillance, Infortaiment System, Medical, Machine Vision, Industry 4.0 and any Internet of Thing (IoT) applications.

  • 24” LCD Display supports up to 16 : 9 Full HD 1920 x 1080 resolution
  • High quality LCD Panel with high reliable LED Backlight
  • Projected Capacitive 10-point Multi-Touch Screen
  • 7H Hardness Anti-Scratch Surface
  • Touchscreen works with gloves
  • Supports VGA, DVI-D and HDMI Interface
  • Landscape Mode and Portrait Mode supported
  • Mounting : VESA Mount, Panel Mount
  • IP65 Front Panel Protection

Additional information

Panel
Panel Type TFT LCD
Active Area 24" (16 : 9)
Max. Resolution 1920 x 1080 (Full HD)
Display Color 16.7M
Brightness (cd/m2) LED
Contrast Ratio 250 cd/m2
Viewing Angle (H/V) 170°/160° (H/V)
Backlight LED Backlight
Backlight Life (hrs) 30,000hrs
Touch Screen
Touch Screen Type 10-point Projected Capacitive
Transparency ≧ 85%
Surface Hardness 7H Surface Hardness
Control Interface USB Interface
System
Power Input  DC-in 12V
Power Interface DC Jack
Power Adaptor AC to DC 60W Power Adaptor
Video Interface 1 VGA, 1 DVI-D, 1 HDMI
OSD Control 5 OSD Keypad for Function Management
OSD Language Multi Language
Mechanical
Dimensions (W x H x D) 576.5mm x 369.7mm x 45.1mm (22.7" x 14.6" x 1.78")
Gross Weight 8.6 kg (18.96 lb)
Front Panel Protection IP65 Compliant
Mounting

- VESA Mount (75 x 75mm, 100 x 100mm)

- Panel Mount

Environment
Operating Temperature 0°C to 50°C  (32°F to 122°F)
Storage Temperature -20°C to 60°C  (-4°F to 140°F)
Humidity 5% to 90% Humidity, non-condensing
Shock

- IEC 60068-2-27

- 20G, Half-sine, 11ms

Vibration

- IEC 60068-2-64

- Non-operation : 10Hz to 200Hz, 1.5Grms, X, Y, Z, 30 mins each Axis

EMC CE, FCC
Packing List
VGA Cable     x 1
USB-A Cable (M) x 1
