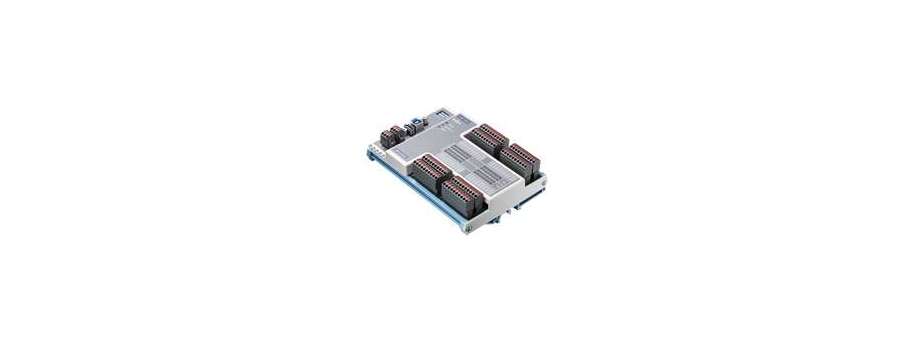

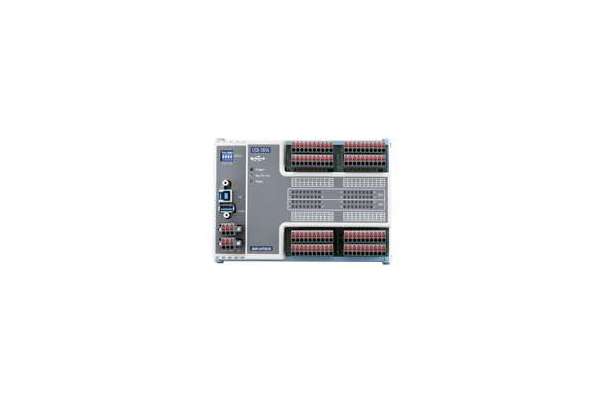

Industrial isolated module USB-5856

32-ch Isolated DI and 32-ch Isolated DO USB 3.0 I/O Module USB-5856 Advantech

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 32-ch digital input and 32-ch digital output with 2,500 VDC isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5856-AE Зовнішній модуль вводу-виводу Advantech 32-ch IDI & 32-ch IDO USB3.0 I/O module  12 750,3

Additional information

General



Power Consumption

Typical 240mA @ 5V; Max. 600mA @ 5V

OS Support

Windows XP/7/8/10 and Linux

Dimensions

168 mm x 120 mm x 40 mm

Bus

USB 3.0

I/O Connectors

Onboard removable European type connector

Operating Temperature

0~60 (32~140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O



Load current

350mA/ch (sink) @ 25°C ; 250mA/ch (sink) @ 60°C

Opto-isolator Response Time

100us

Isolation Protection

2,500 VDC

Input Channels

32

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Output Channels

32

Output Ranges

5 ~ 40 VDC
