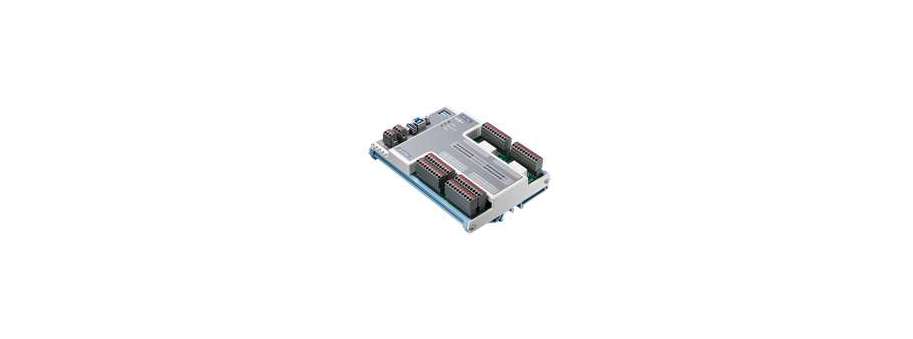

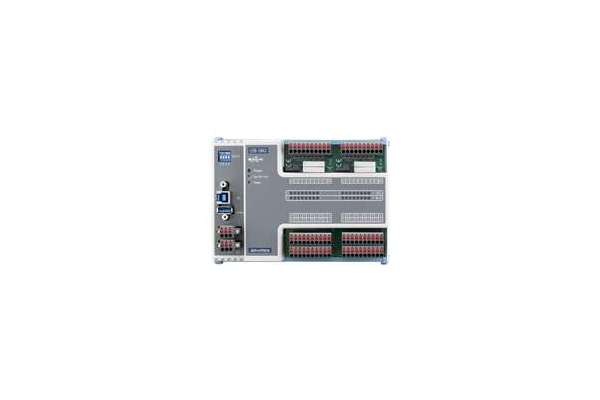

16-ch Isolated Digital Input and 16-ch Relay USB 3.0 I/O Module USB-5862 with LED indicators for I/O status by Advantech

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5862-AE Зовнішній модуль вводу-виводу Advantech 16-ch IDI & 16-ch Relay USB3.0 I/O module  15 492,5

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 16-ch Isolated Digital Input and 16-ch Form A-type Relay Output
  • Wide input voltage range (10 ~ 30 VDC)
  • High-voltage isolation on input channel (2,500 VDC )
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Additional information

Specifications

Digital Input

Channels 16
Input voltage
  • Logic 0: 3 V max.;
  • Logic 1: 10 V min. (30 V max.)
Isolation protection 2,500 VDC

Relay Output

Channels 16
Relay Type Form A
Contact Rating (resistive) 2A @ 250VAC, 2A @ 30VDC
Max. Switching Power 500VA , 60W
Max. Switching Voltage 270VAC, 125VDC
Resistance 30mΩ max
Operating Time Max. 10ms
Releasing Time Max. 5ms
Life Expectancy Mechanical 2 x 107 ops. at no load. Electrical 3 x 104 ops. @ 2A/250VAC

General

Interface USB 3.0
Data transfer rates 5 Gbps
Connectors 10-pin 3.81 mm terminal block * 6 (I/O) 3-pin 3.81 mm screw terminal block (power) * 2 USB 3.0 type A (to PC) USB 3.0 type B (hub)
Dimensions 168 x 120 x 40 mm
Operating temperature 0 ~ 60°C (32 ~ 140°F)
Storage temperature -40 ~ 70°C (-40 ~ 158°F)
Storage humidity 5 ~ 95% RH (non-condensing)
Power supply 10 ~ 30 VDC
Power Consumption Typical 240mA @ 5V; Max. 680mA @ 5V
