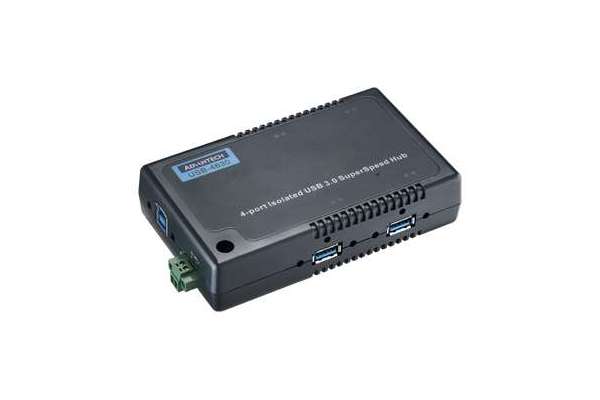

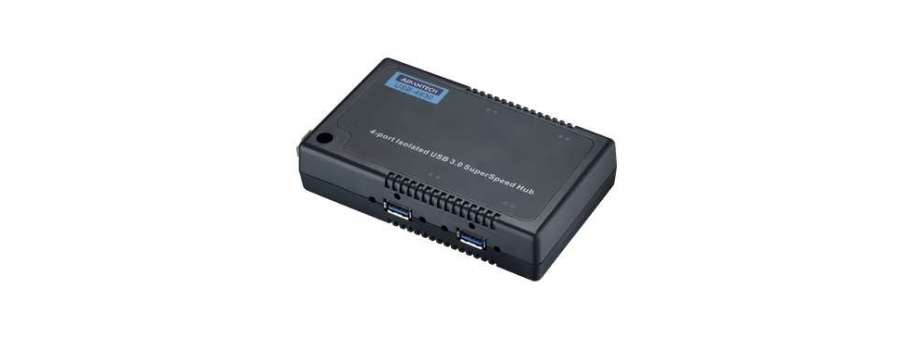

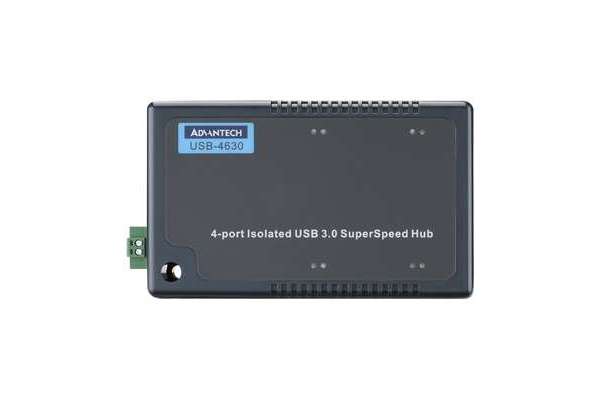

4-port Isolated USB 3.0 SuperSpeed Hub with ESD protection up to ±8 kV (Level 3) Advantech USB-4630

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-4630-AE USB модуль Advantech USB-4630 4-Port SuperSpeed Isolated USB 3.0 Hub  16 700,2
  • 2,500 VDC voltage isolation for upstream ports
  • 4 x downstream USB 3.0 SuperSpeed™ ports
  • Can be powered via a USB bus or 10 ~ 30 VDC external power source
  • ESD protection up to ±8 kV (Level 3)
  • Power status and downstream port speed LED indicators
  • The world's first isolated USB 3.0 SuperSpeed Hub
  • Up to 5 Gbps transfer speed
  • Lockable USB 3.0 cable is included

Additional information

Specifications

Connectivity

Ports

1 x Upstream (Type B)

4 x Downstream (Type A)

Compatibility USB 3.0 SuperSpeed (1)
Transfer Speed 5 Gbps shared by all downstream ports
Load Current

External power: 900 mA max. per port

USB bus power: 700 mA max. shared by all ports (2)

General

Housing Plastic (ABS + PC)
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Input 10 ~ 30 VDC
Power Consumption 760 mW (no load)
Operating Temperature

0 ~ 70 °C (32 ~ 158 °F) with external power

0 ~ 60 °C (32 ~ 140 °F) with USB bus power

Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH (non-condensing)

Protection

Isolation Protection 2,500 VDC
ESD Protection

Contact discharge: ±4 kV (Level 2)

Air discharge: ±8 kV (Level 3)
