5-port USB 2.0 Hub USB-4620/4622

5-port USB 2.0 Hub Advantech USB-4620/4622 with 10 ~ 30 VDC power input

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

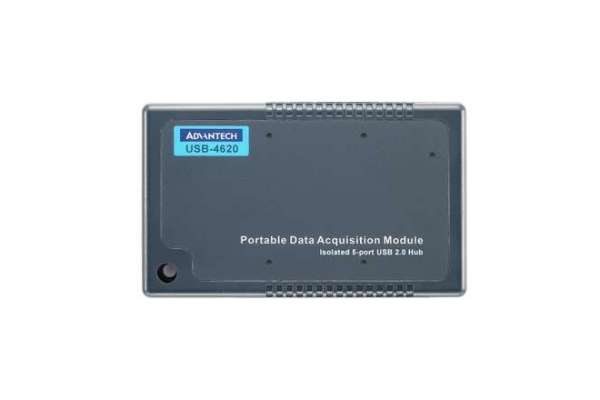

USB-4620:

  • 5 downstream USB 2.0 ports
  • Supports USB 2.0 full speed
  • 3,000 VDC voltage isolation for each downstream port
  • Suitable for DIN rail mounting
  • One lockable USB cable included
  • 10 ~ 30 VDC power input (power adapter not included)

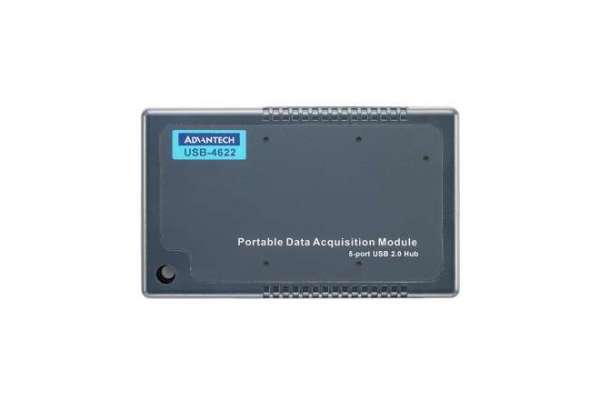

USB-4622:

  • 5 downstream USB 2.0 ports
  • Supports USB 2.0 high speed, USB 2.0 full speed, and USB 1.0
  • 480 Mbps high-speed data transfer
  • LED indicator
  • Suitable for DIN rail mounting
  • Lockable USB cable included
  • 10 ~ 30 VDC power input (power adapter not included)

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-4620-AE USB модуль 5-port Isolated USB 2.0 Hub  8 578,3

Additional information

Specifications USB-4620 USB-4622

Connectivity


Ports
  • 1 x Upstream (Type B)
  • 5 x Downstream (Type A)
  • 1 x Upstream (Type B)
  • 5 x Downstream (Type A)
Compatibility USB 2.0 full speed
  • USB 2.0 high speed,
  • USB 2.0 full speed,
  • USB 1.0
Transfer Speed 12 Mbps 480 Mbps/12 Mbps/1.5 Mbps
Supply Current 500 mA max. per channel 500 mA max. per channel

General


Housing Plastic (ABS+PC) Plastic (ABS+PC)
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
DC Input 10 ~ 30 VDC 10 ~ 30 VDC
Power Consumption 24 V @ 36 mA 24 V @ 36 mA
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F) 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F) -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing 5 ~ 95% RH non-condensing

Protection


Isolation Protection 3,000 VDC  -
