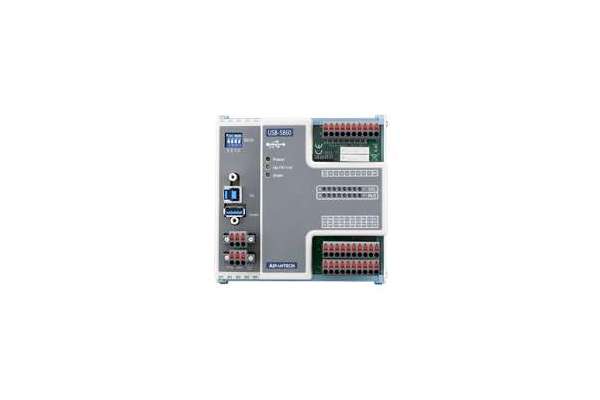

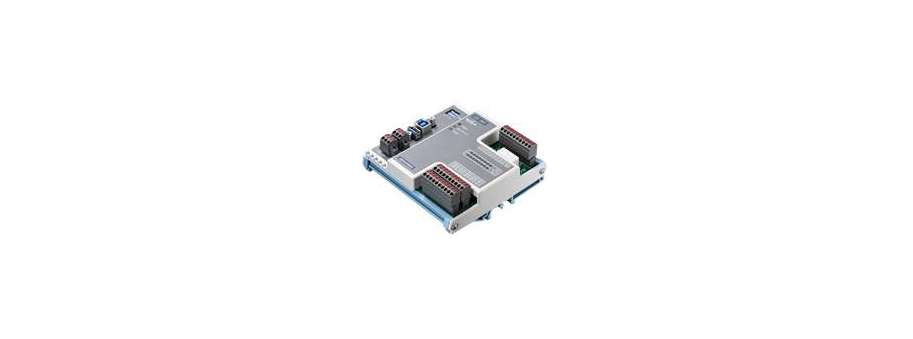

USB 3.0 I/O Module USB-5860

8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module USB-5860

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 8-ch Isolated Digital Input and 8-ch Form A-type Relay Output
  • Wide input voltage range (10 ~ 30 VDC)
  • High-voltage isolation on input channel (2,500 VDC )
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5860-AE Зовнішній модуль вводу-виводу Advantech 8-ch IDI & 8-ch Relay USB3.0 I/O module  9 170,2

Additional information

Part Number

USB-5860-AE

Relay



Output Channels

8

Max. Switching Power

500VA , 60W

Relay type

Form A

Contact Rating

2A@250V AC , 2A@30V DC

Operate/Release Time

10 / 5 ms max.

Resistance

30mΩ max.

General



OS Support

Windows XP/7/8/10 and Linux

Power Consumption

Typical 240mA @ 5V; Max. 480mA @ 5V

Dimensions

120 mm x 120 mm x 40 mm

Bus

USB 3.0

I/O Connectors

Onboard removable European type connector

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Operating Temperature

0~60 (32~140°F)

Isolated Digital I/O



Opto-isolator Response Time

100us

Isolation Protection

2,500 VDC

Input Channels

8

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)
