USB Module USB-4750

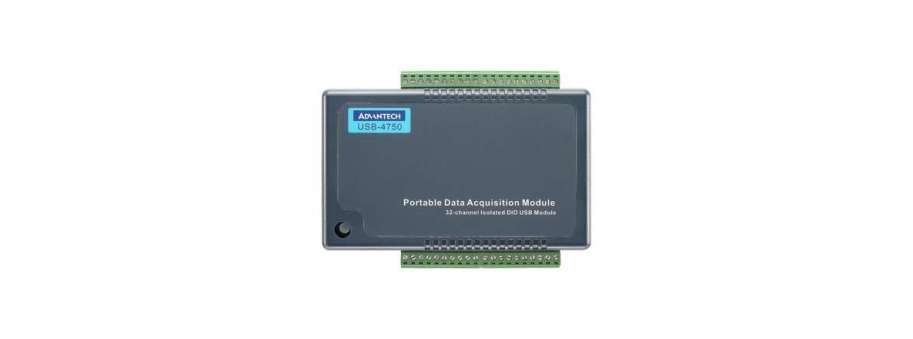

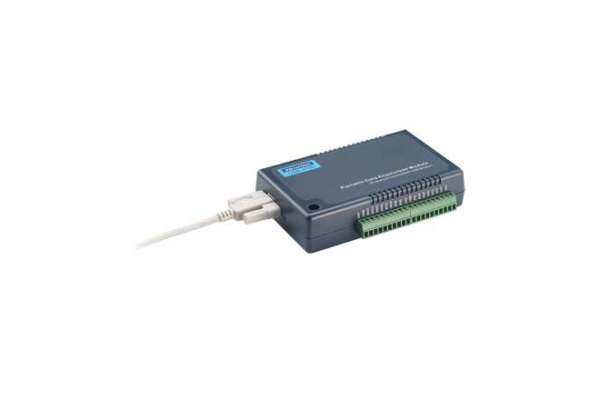

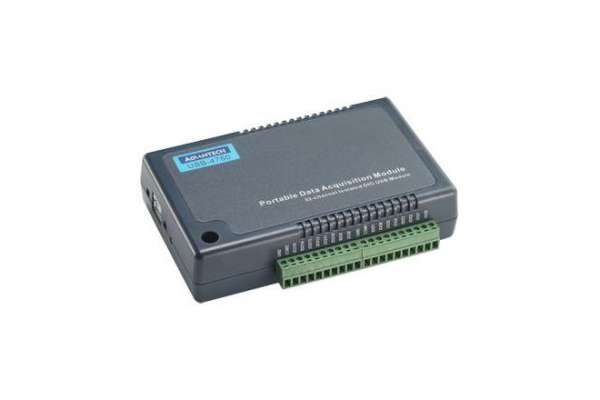

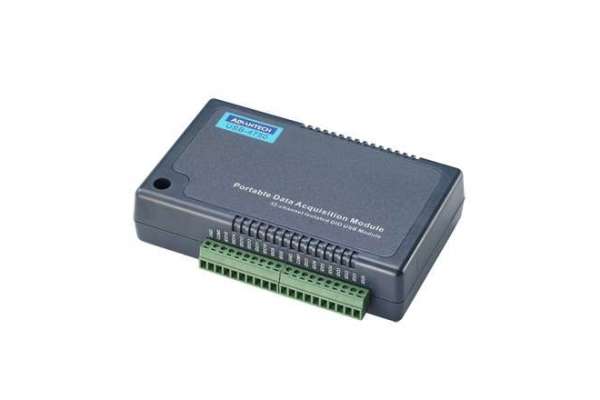

32-ch Isolated Digital I/O USB Module Advantech USB-4750

Signal input/output >> Input Output boards

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4750 is a 32-channel isolated digital I/O module. With isolation protection of 2,500 VDC, and dry contact support, USB-4750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the USB-4750 corresponds to a bit in an I/O port. This makes USB-4750 very easy to program. This module also offers
a counter or timer and one digital input interrupt lines to a PC. So users can then easily do configurations by software.
Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4750 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4750 is fully USB plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.

  • Compatible with USB 1.1/2.0
  • Bus-powered
  • 16 isolated DI and 16 isolated DO channels
  • High voltage isolation on all channels (2500 VDC)
  • High sink current on isolated output channels (200 mA/Channels)
  • Supports 5 ~ 60 VDC isolated input channels
  • Interrupt handling capability
  • Timer/Counter capability
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-4750-BE Зовнішній багатофункціональний модуль Advantech USB-4750, 32-CH Isolated DIO USB Module  7 029,6

Additional information

Part Number USB-4750-BE

General


Power Consumption Typical: 5V @ 200 mA; Max.: 5V @ 350 mA
OS Support 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Bus USB 1.1/2.0
I/O Connectors Onboard screw terminal
Operating Temperature 0~60 (32~140°F)
Programming Language C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Timer/Counter


Resolution 32 bits
Channels 2
Max. Input Frequency 20MHz

Isolated Digital I/O


Input Channels 16
Input Range 5 ~ 60 VDC
Output Channels 16
Output Ranges 5 ~ 40 VDC
