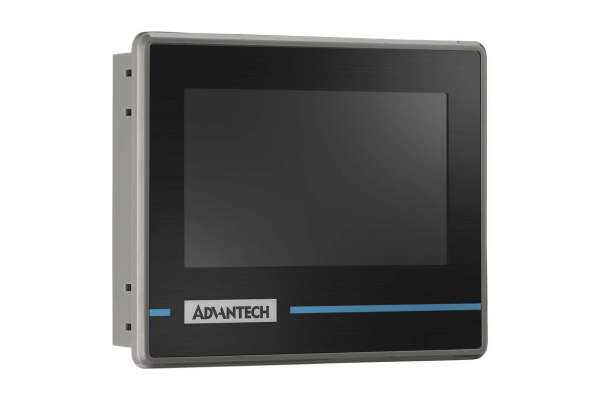

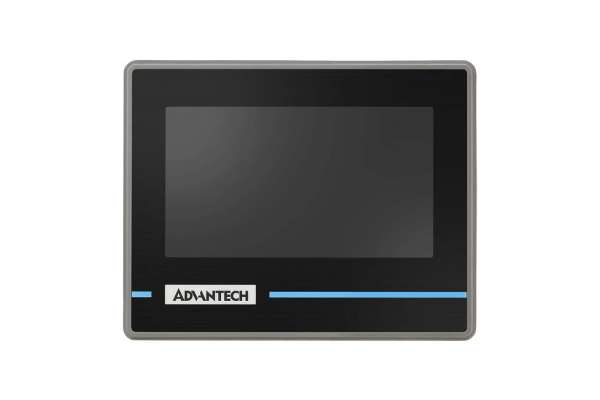

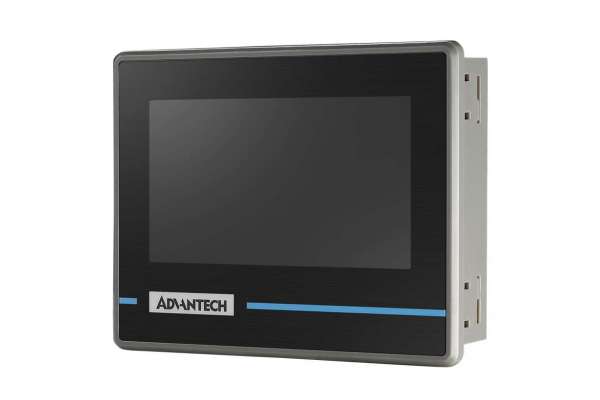

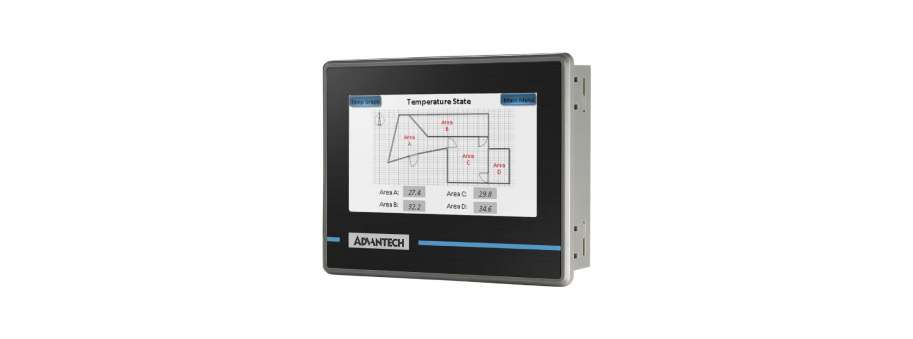

4.3" WQVGA Operator Panel WOP-204K

4.3" WQVGA Operator Panel Installed Advantch with HMINavi Software WOP-204K

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and F&B applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by an ARM9™ 32-bit RISC processor with 64 MB working memory, the WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization. Powerful connectivity drivers support 500+ variety market brands of PLC.

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Reliable firmware setting from HMINavi software for 24/7 operation
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel

Price and avalability

Partnumber Description Price VAT incl Avalability
WOP-204K-NAE 4.3" WQVGA, 64MB, 128MB(NAND),Serialx3,Ethernet  10 886,0

Additional information

General


Certification CE, FCC, UL61010
Dimensions (W x H x D) 129 x 103 x 31.3mm (5.08' x 4.06' x 1.23')
Cutout Dimensions 118.5 x 92.5mm (4.67' x 3.64')
Front Panel Thickness 5 mm (0.19 in)
Operating System HMI RTOS, HMINavi Designer
Power Supply Voltage 24VDC ± 10%, Isolation
Power Consumption 10W
Enclosure Housing Plastic
Mount Options Panel
Weight (Net) 0.23 kg (0.51 lbs)

System Hardware


CPU ARM9™ 32-bit RISC processor
Battery Backup Memory 128KB
Working Memory 64 MB SDRAM
Storage
  • 128 MB NAND Flash
  • Runtime Max Size: 64 MB
  • Data Logger Max Size: 64 MB

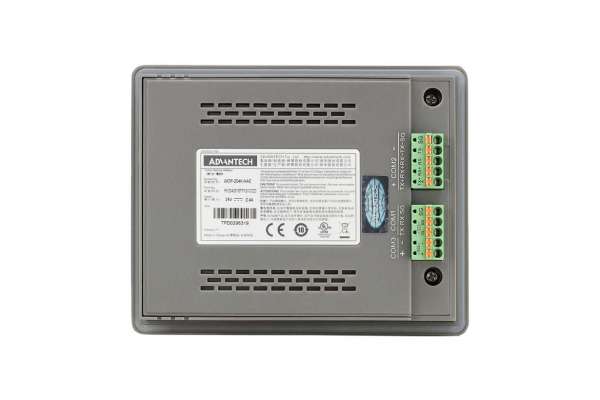

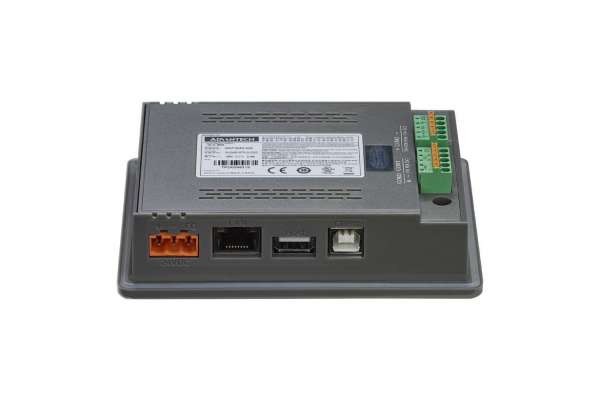

Communication Interface


COM1 RS-232 (5-Pin Terminal)
COM2 RS-422/485 (5-Pin Terminal)
COM3 RS-485 (5-Pin Terminal)
Ethernet (RJ45) 10/100-BaseT
I/Os 1 x USB (Client) 1 x USB (Host)

LCD and Touchscreen


Display Type WQVGA TFT LCD
Display Size 4.3"
Max. Resolution 480 x 272
Max. Colors 65,536 colors
Luminance (cd/m2 ) 400
Backlight Life LED, 20,000 hr
Touchscreen 4 wires analog resistive

Environment


Operating Temperature -10 ~ 60°C (14 ~ 140° F)
Storage Temperature -20 ~ 70°C (-4 ~ 158° F)
Humidity 95% RH @ 40°C, non-condensing
Ingress Protection Front panel: IP66
Vibration Protection 5 ~ 500Hz (X,Y,Z direction, 1Grms, 1hour per axis)
