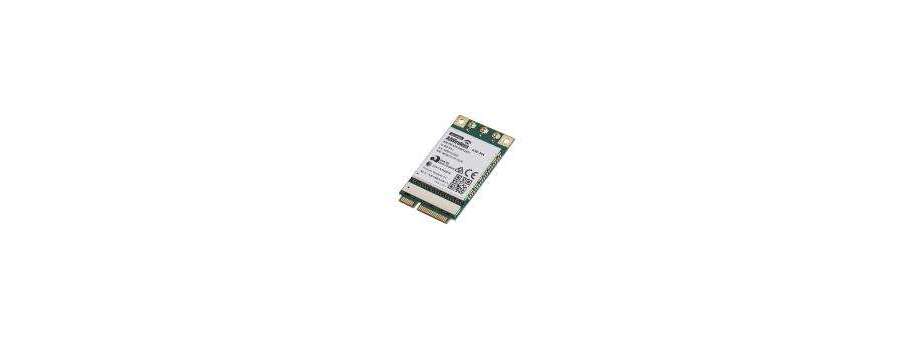

Wide-Temp 4G/LTE, Full-size Mini PCIe Card Advantech AIW-344

Price and avalability

Partnumber Description Price VAT incl Avalability
AIW-344FQ-E02 AIW-3 series LTE CAT4 mini PCI-e module for EU  4 161,6

Advantech AIW-344 is a 4G LTE CAT4 module, and supports TDD LTE/FDD LTE/WCDMA/GSM and GPS

Additional information

Main Chipset Qualcomm MDM9X07
Antenna 2 LTE Antenna Coaxial Connectors +1 GPS antenna connector
Band
  • FDD-LTE: Band 1,3,5,7,8,20,28
  • TDD-LTE: Band 38,40,41
  • HSPA/UMTS:Band 1,5,8
  • GSM/GPRS/EDGE850/900/1800MHz
Data throughput 4G/LTE Cat. 4 (FDD-LTE: 150 Mbps DL, 50 Mbps UL; TDD-LTE: 130 Mbps DL, 30 Mbps UL)
Interface PCI Express mini-card
Operation Voltage 3.3V ~ 4.3V (3.8V recommended)
Power Consumption Idle mode: <15mA (USB sleep); <29mA (USB wake up)
O.S Supported Windows 7/8.x/10, Linux
Temperature Ranges Operation: Normal: -30°C ~ +75°C/Extended: -40 °C ~ +85 °C
Dimensions (L x W x H) 50.85 x 29.9 x 6.2 mm
