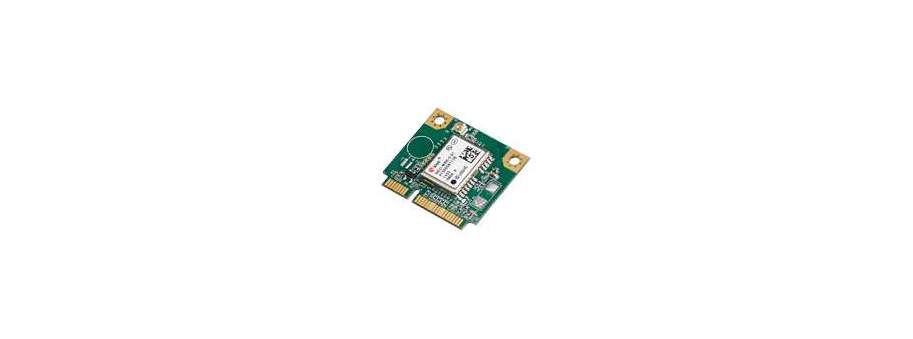

Embedded Multi-GPS/ GNSS + G sensor Module Half-size Mini PCIe Card Advantech EWM-G110H

  • 72-Ch u-blox NEO-M8 engine (GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS)
  • Untethered Dead Reckoning(UDR)
  • Including 3D inertial sensors
  • 1.5 second TTFF for Hot Starts, Open sky code start 26 second.
  • Accuracy SBAS 2.0 m CEP
  • Operating temperature: -40 to +85° C

Additional information

Main Chipset u-blox NEO-M8U
Receiver Type
  • 72 Channels
  • GPS/QZSS L1 C/A, GLONASS L1 L10F,
  • BeiDou B1, SBAS L1 C/A: WAAS/EGNOS/MSAS,
  • Galileo-ready E1B/C
Time-To-First-Fix (GPS + GLONASS)
  • Cold Start: 26 s
  • Hot Start: 1.5 s
  • Aiding Start: 2 s
Sensitivity (GPS + GLONASS)
  • Tracking & Navigation: -167 dBm
  • Reacquisition: -160 dBm
  • Cold Start: -148 dBm
Horizontal Position Accuracy SBAS: 2.0 m
Accuracy of Time Pulse Signal
  • RMS: 30 ns
  • 99%: 60 ns
  • Time Pulse Configurable: f=0.25…10M Hz
Velocity Accuracy 0.05 m/s
Heading Accuracy 0.3 degress
Dynamics < 4 g
Operational Limits Altitude: 50000 m, Velocity: 500 m/s
Operating Temperature -40 to +85° C
