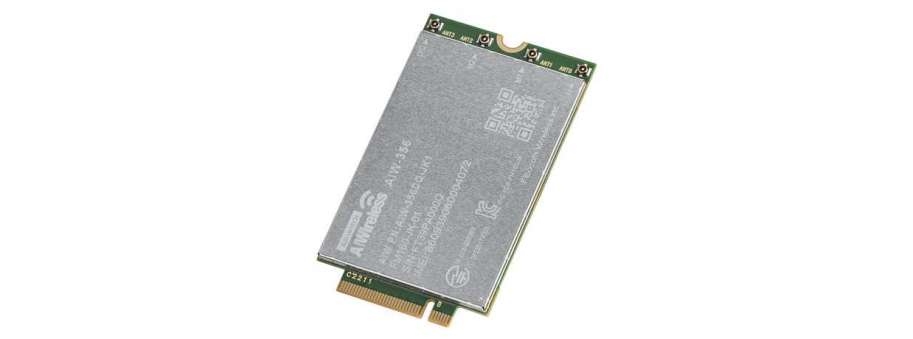

5G NR Sub 6+GNSS WWAN module, M.2 3052 Key-B form factor Advantech AIW-356

  • 5G NR SUB6/LTE FDD/LTE TDD/WCDMA systems
  • Max UL peak rate of 900Mbps
  • Max DL peak rate 3.2 Gbps NR Sub6 EN-DC
  • UL Max support 2 MIMO
  • DL Max support 4 MIMO
  • Normal operating temperature: -30 ~ 75 °C (-22 ~ 167 °F)
  • Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
  • Extend operating temperature: -40 ~85 °C (-40 ~ 185 °F)
  • GNSS, GPS/GLONASS/Galileo/Beidou/QZSS

Additional information

Main Chipset QUALCOMM SDX62
Antenna 4pcs X 5G Antenna, or 3pcs X 5G Antenna + 1pcs X GNSS antenna
Band

AIW-356DQ-E01

  • NSA: n1/3/5/7/8/20/28/38/40/ 77/78
  • SA: n1/3/5/7/8/20/28/38/40/41/ 75/76/77/78
  • LTE TDD: Band 38/40/41/42/43
  • LTE FDD: Band 1/3/5/7/8/20/ 28/32
  • WCDMA: Band 1/5/8
  • GNSS: support GPS, GLONASS, Galileo, BDS, QZSS
Data Throughput
  • Max DL peak rate 3.2 Gbps NR Sub6 EN-DC
  • Max UL peak rate of 900Mbps
Interface USB 3.1
Operation Voltage 3.135 ~ 4.4V, Typical 3.8V
Power Consumption 2.5A
O.S Supported Windows 10, Linux (Ubuntu 20.04)
Temperature Ranges
  • Normal operating temperature: -30 ~ 75 °C (-22 ~ 167 °F)
  • Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
  • Extend operating temperature: -40 ~85 °C (-40 ~ 185 °F)
Dimensions (L x W x H) 30 x 52 x 2.3 mm/1.18 x 2.04 x .09 in (B-key)
