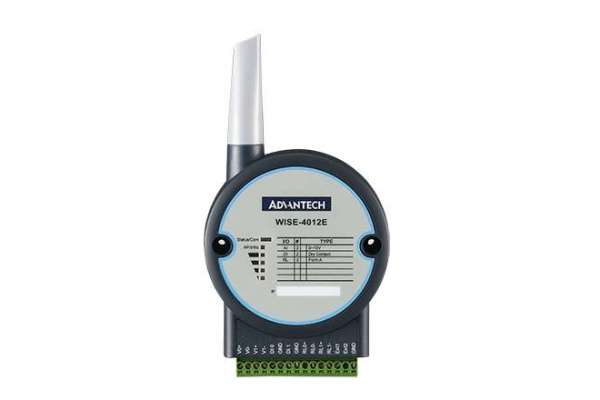

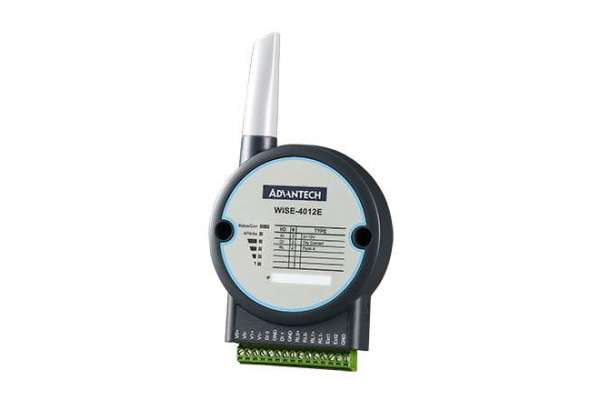

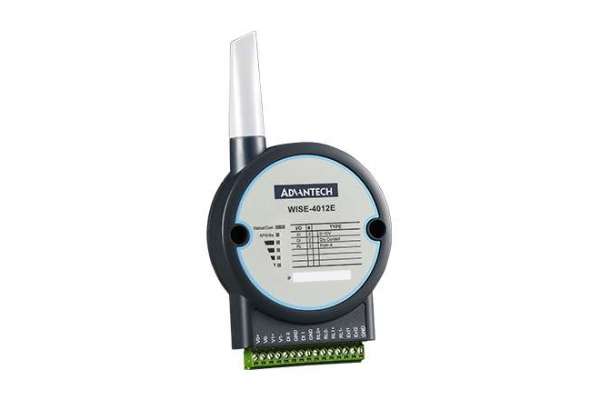

6-ch Input/Output IoT Wireless I/O Module for IoT Developers Advantech WISE-4012E
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-4012E-AE-WA | Модуль/плата расширения WISE-4012E IoT Developer Kit with WebAccess | 8 675,3 | Доступно |

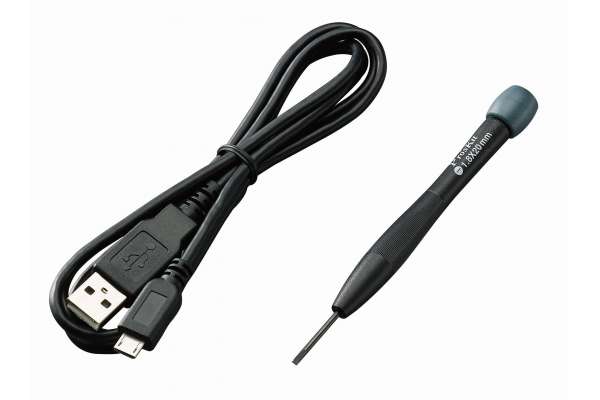

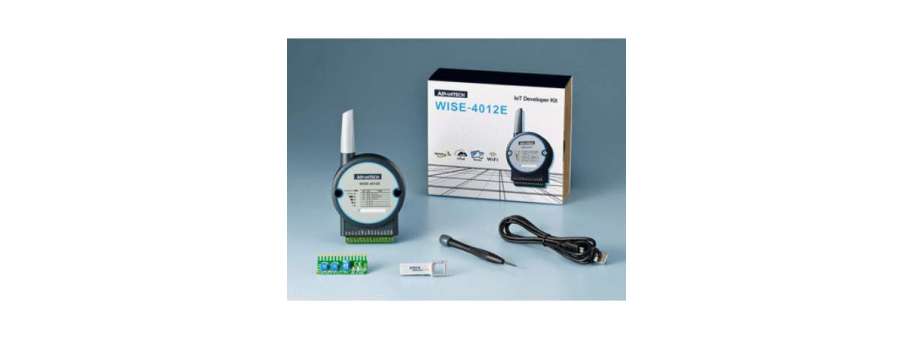

The Advantech WISE IoT Developer Kit is a complete hardware & software solution to help users develop IoT applications and simulate their projects in the simplest way. The WISE IoT Developer Kit provides everything you need to get going: a WISE-4012E 6-ch universal input or output wireless Ethernet I/O module, and developer kit including: WebAccess 8.0 with open interfaces for intelligent application developer, extension board for simulating sensor status, a micro USB cable for power input, and a screwdriver for wiring. The WISE-4012E has an integrated Wi-Fi interface with AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.
- 2.4 GHz IEEE 802.11b/g/n WLAN
- 2-ch 0~10V Input, 2-ch DI, and 2-ch Relay Output

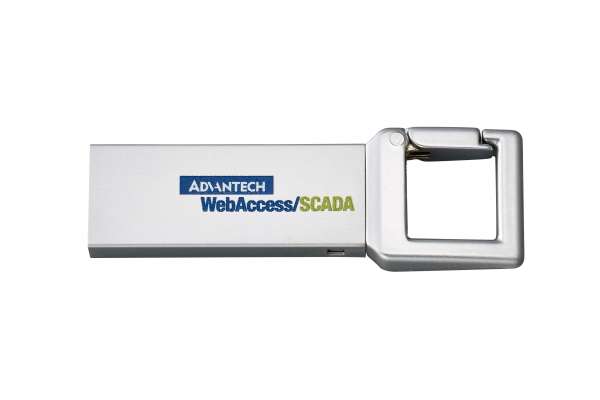

- Includes WebAccess with demo project for developer

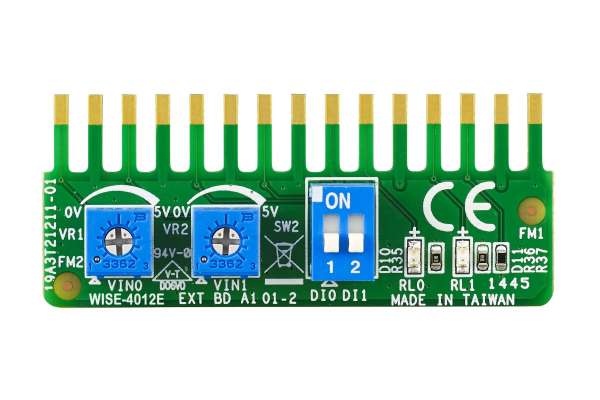

- Includes extension board for simulating sensor status
- Includes micro USB cable for power input
- Supports Modbus/TCP with RESTful web service, MQTT
- Supports wireless client and server mode that can be accessed directly without AP or router
- Supports mobile device web configuration with HTML5 without the platform limitation
- Supports file-based cloud storage and local logging with time stamp
Additional information
|
Part Number |
WISE-4012E-AE-WA |
| Digital Input | |
|
Inverted DI Status |
Support |
|
Keep/Discard Counter Value when Power Off |
Support |
| Frequency Input |
0.1 ~ 3kHz |
|
Counter Input |
3kHz (32 bit + 1 bit overflow) |
|
Channels |
2-ch Dry Contact |
|
Logic level |
Dry Contact: Logic 0: Open, Logic 1: Close to GND |
| Digital Output | |
|
Channels |
2-ch Relay |
|
Isolation |
1,500 Vrms |
|
Insulation Resistance |
1 GΩ min. @ 500 VDC |
|
Output Rating (Resistive Load) |
120 VAC @ 0.5 A, 30 VDC @ 1A |
|
Pulse Output |
60 operations/minute |
|
Relay Off Time (Typ.) |
10 ms |
|
Relay On Time (Typ.) |
7 ms |
| General | |
|
Certifications |
CE, FCC, R&TTE, NCC, SRRC, RoHS |
|
Protocol |
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT |
|
Dimensions (W x H x D) |
80 x 148 x 25 mm |
|
Connectors |
I/O: Terminal block; Power: Micro USB |
|
Data Logger |
Up to 10,000 samples with RTC time stamp |
| Enclosure |
PC |
|
LED Indicators |
Status, Communication, Network Mode, Quality |
|
Mounting |
DIN 35 rail, wall, and stack |
|
Real-time Clock |
Yes |
|
Watchdog Timer |
System (1.6 second) & Communication (programmable) |
|
Web Server |
RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3 |
| Wireless Interface | |
|
Antenna Connector |
Reverse SMA |
|
Frequency Band |
2.4GHz |
|
IEEE Standard |
IEEE 802.11b/g/n |
|
Network Mode |
Infrastructure, Limited AP |
|
Outdoor Range |
110m (L.O.S.) |
|
Security |
WPA2 Personal & Enterprise |
| Environment | |
|
Operating Humidity |
20 ~ 95% RH (non-condensing) |
|
Operating Temperature |
-25 ~ 70°C (-13~158°F) |
|
Storage Humidity |
0 ~ 95% RH (non-condensing) |
|
Storage Temperature |
-40 ~ 85°C (-40~185°F) |
| Power | |
|
Input Range |
Micro USB 5 VDC |
|
Power Consumption |
1.5 W @ 5 VDC |
| Analog Input | |
|
Accuracy |
±0.1 VDC |
|
Channels |
2-ch (Differential) |
|
Input Impedance |
100 kΩ |
|
Input Range |
0~10V |
|
lnput Type |
V |
|
Resolution |
12-bit |
|
Sampling Rate |
10 Hz (Total) |
