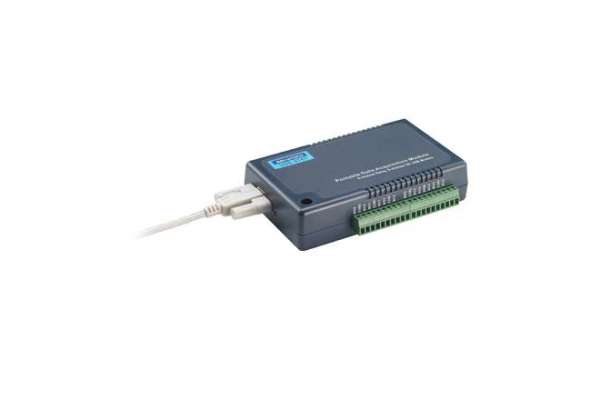

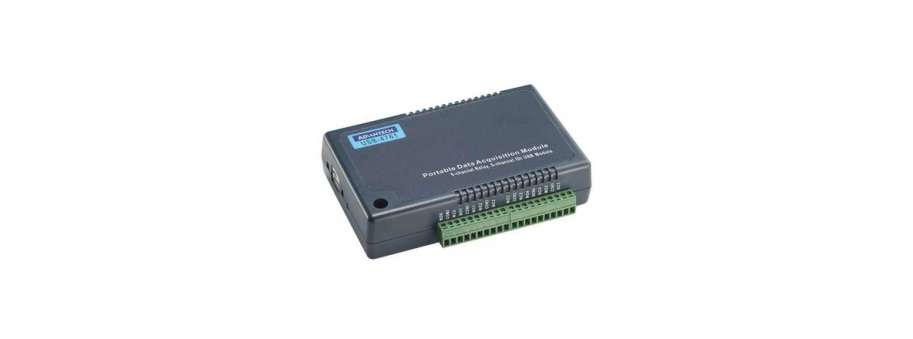

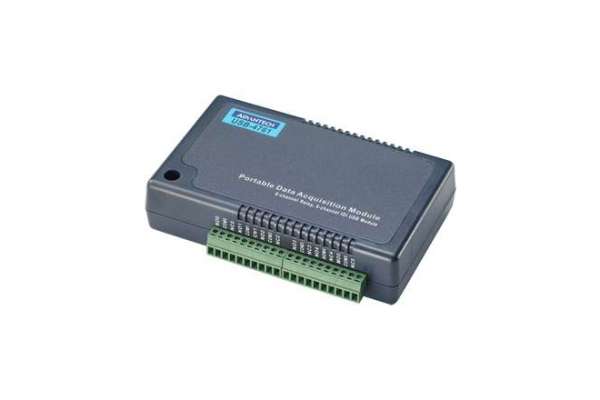

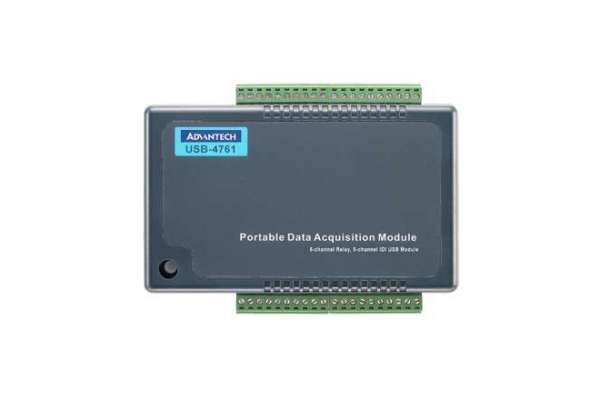

USB Module USB-4761

8-ch Relay and 8-ch Isolated Digital Input USB Module Advantech USB-4761

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-4761 is a relay actuator and isolated digital input module for USB bus. It provides 8 optically-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments and 8 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED to show its on/off status. The USB-4761’s eight optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials. Rugged Protection The USB-4761 digital input channels feature a rugged isolation protection for industrial, lab and machinery automation applications. It durably withstands voltage up to 2,500 VDC, protecting your host system from any incidental harms. If connected to an external input source with surge-protection, the USB-4761 can offer up to a maximum of 2,000 VDC ESD (Electrostatic Discharge) protection.

  • Compatible with USB 1.1/2.0
  • Portable
  • Bus powered
  • 8 x Relay output and 8 x isolated digital input channels
  • LED indicators to show activated relays
  • 8 x Form C-type relay output channels
  • High-voltage isolation on input channels (2,500 VDC)
  • High ESD protection (2,000 V)
  • Wide input range (5 ~ 30 VDC)
  • Interrupt handling capability
  • Detachable screw terminal on modules
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-4761-BE Внешний многофункциональный модуль 8ch Relay & 8ch Isolated DI USB Module  7 248,7

Additional information

Specifications



Isolated Digital Input


Channels 8
Input Voltage
  • Logic 0: 2 V max.
  • Logic 1: 5 V min. (30 V max.)
Isolation Protection 2,500 VDC
Opto-Isolator Response 50 µs

Relay Output


Contact Rating 0.25 A @ 240 VAC, 1 A @ 30 VDC
Max. Switching Power 62.5 VA, 60 W
Max. Switching Voltage 250 VAC, 220 VDC
Max. Switching Current 5 A
Operate/Release Time max. 5 / 4 ms
Life Expectancy (Electrical)
  • 5 x 107 cycles typ. @ 10 mA/12 V
  • 2 x 105 cycles typ. @ 2000 mA/30 V

General


Bus Type USB 1.1/2.0
I/O Connector Onboard screw terminal
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
  • Typical: 5 V @ 60 mA
  • Max.: 5 V @ 400 mA
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95 % RH, non-condensing
