USB Module USB-5820

4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module Advantech-USB-5820

System Components >> Embedded boards and Modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

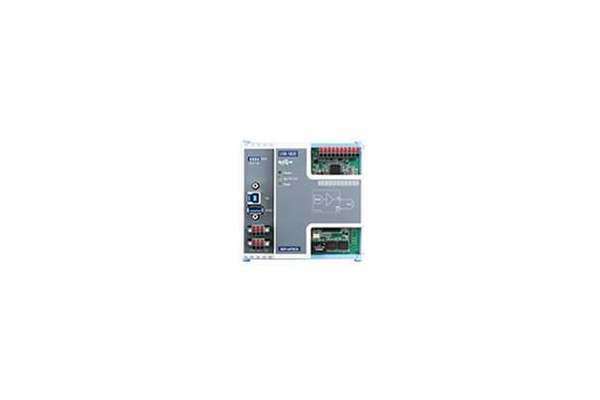

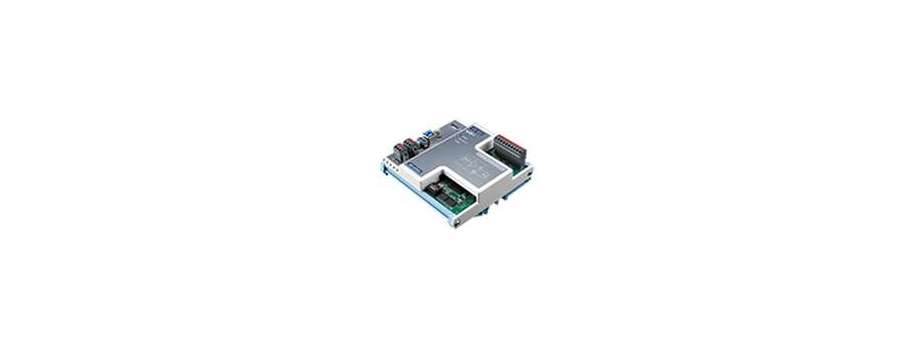

USB-5820 is a 4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module . Its compact size and DIN-rail mount kit make it easily installed in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. For safe and reliable operation, the controller (host) side is protected by a 2,500 VDC isolation circuit. Furthermore, it supports multiple voltage and current output ranges.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built-in USB hub
  • 4 x 16-bit analog output channels with 2,500 V DC isolation
  • Multiple voltage and current output ranges
  • Removable European-type connector
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5820-AE Зовнішній модуль вводу-виводу Advantech 4-ch, 16-bit, 200 kS/s Isolated AO USB3.0 module  14 623,0

Additional information

Part Number USB-5820-AE
Analog Output
Channels 4
Resolution(Bits) 16 bits
Output Ranges 0 ~5, 0 ~ 10, ±5, ±10, 0 ~ 20 mA, 4 ~ 20mA
Update Rate(S/s) 200 K

General


Bus USB 3.0
Dimensions 120 mm x 120 mm x 40 mm
Operating Temperature 0 ~ 60°C (32 ~ 140°F)
Programming Language C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
