USB Module USB-5817

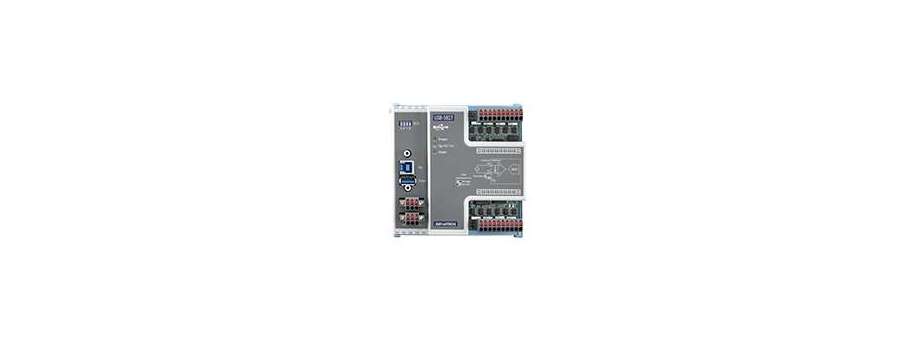

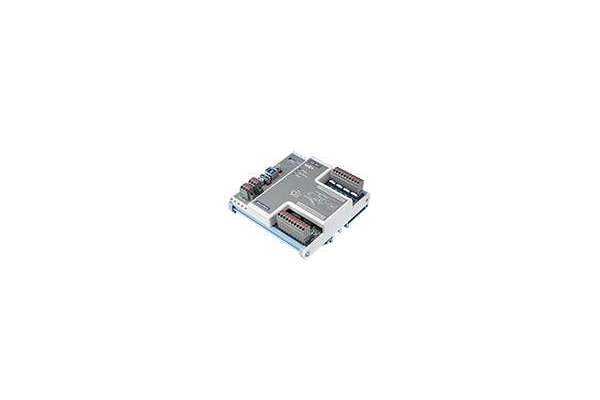

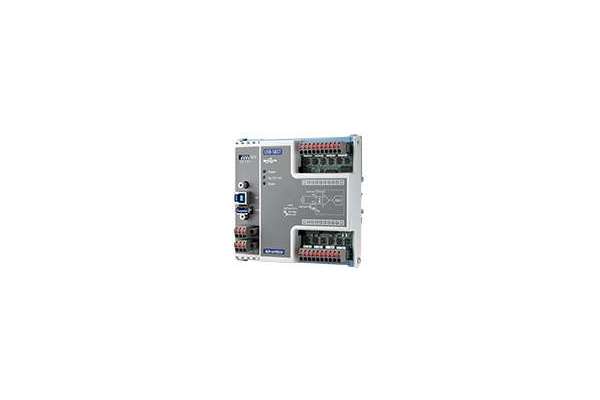

8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module Advantech USB-5817

System Components >> Embedded boards and Modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

USB-5817 is a 8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module . Its compact size and DIN-rail mount kit make it easily installed in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. For safe and reliable operation, the controller (host) side is protected by a 2,500 VDC isolation circuit. Furthermore, it supports both voltage and current measurement with common-mode voltage up to ±275 V

  • USB 3.0 SuperSpeed
  • Daisy chainable by built-in USB hub
  • 8 x 16-bit analog input channels with 2,500 VDC isolation
  • Support voltage and current measurement
  • Wide common-mode voltage range (±275 V)
  • Removable European-type connector
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5817-AE Зовнішній модуль вводу-виводу Advantech 8-ch,16-bit,200 kS/s Isolated AI USB3.0 module  15 850,5

Additional information

Part Number USB-5817-AE

General


Power Consumption typical 5 V @ 350 mA
OS Support 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions 120 mm x 120 mm x 40 mm
Bus USB 3.0
I/O Connectors Onboard removable European type connector
Operating Temperature 0 ~ 60°C (32 ~ 140°F)
Programming Language C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input


Sampling Rates(S/s) 200 K
Bipolar Inputs (V) ±10 V , 0-20 mA
Channels 8
Type Scan
Resolution(Bits) 16
Input Impedance Common-mode 200 kΩ, Differential 800 kΩ
