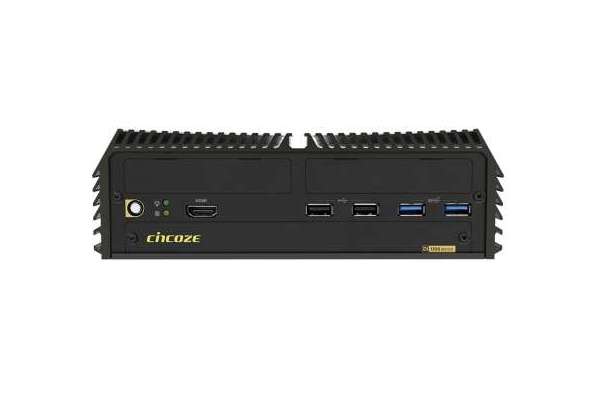

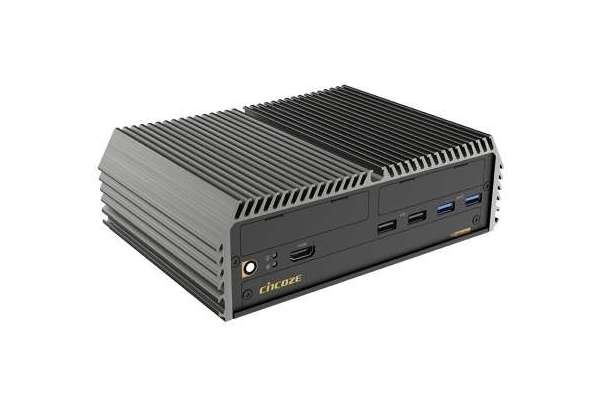

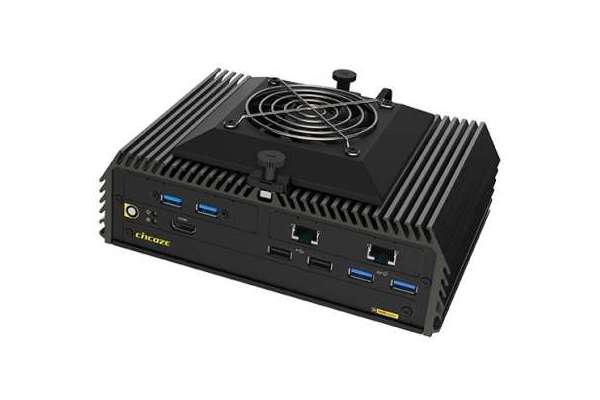

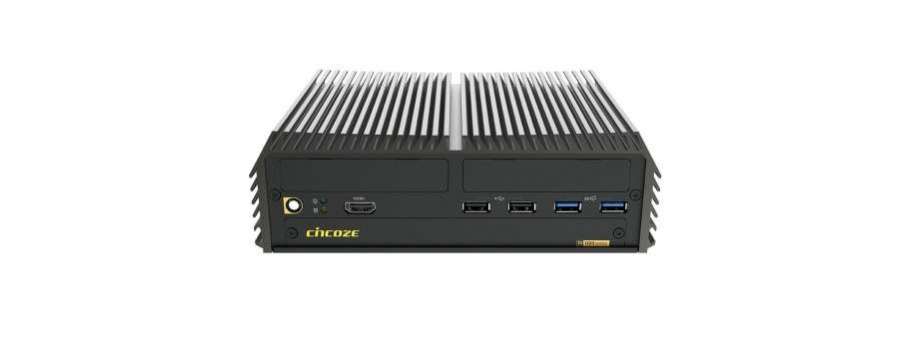

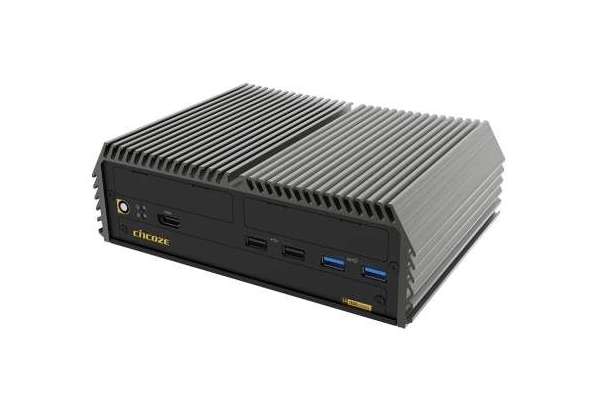

System
|
|
Processor |
Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
- Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W)
- Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W)
- Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W)
|
Memory |
1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 64 GB ( Un-buered and non-ECC) |
BIOS |
AMI BIOS |
Graphics
|
|
Graphics Engine |
Integrated Intel® UHD Graphics 620 |
Maximum Display Output |
Supports Triple Independent Display |
HDMI |
1x HDMI Connector (4096 x 2304@60Hz) |
DP |
1x DisplayPort Connector (4096 x 2304@60Hz) |
VGA |
1x VGA Connector (1920 x 1200 @60Hz) |
Audio
|
|
Audio Codec |
Realtek® ALC888, High Definition Audio |
Line-out |
1x Line-out, Phone Jack 3.5mm |
Mic-in |
1x Mic-in, Phone Jack 3.5mm |

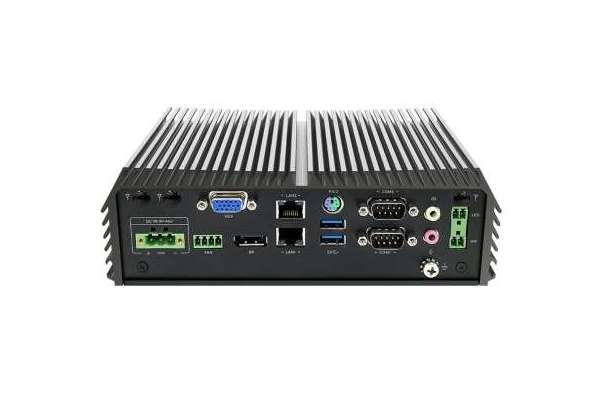

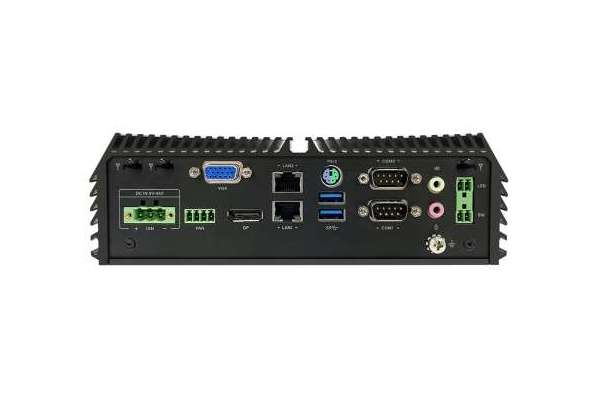

I/O
|
|
LAN |
2x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
|
COM |
2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
USB |
- 2x 10 Gbps USB 3.2 Gen2, Type A
- 2x 5 Gbps USB 3.2 Gen1, Type A
- 2x 480 Mbps USB 2.0, Type A
|
PS/2 |
1x PS/2, 6 Pin Mini-DIN Female Connector |
Storage
|
|
SSD/HDD |
1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 ) |
mSATA |
1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) |
RAID |
Support RAID 0/1 |
Expansion
|
|
Mini PCI Express |
2x Full-size Mini-PCIe Socket |
SIM Socket |
2x SIM Socket |
CMI (Combined Multiple I/O) Interface |
- 1x High Speed CMI Interface for optional CMI Module Expansion
- 1x Low Speed CMI Interface for optional CMI Module Expansion
|
CFM (Control Function Module) Interface |
1x CFM IGN Interface for optional CFM-IGN Module Expansion |
Other Function
|
|
External FAN Connector |
1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
Power Ignition Sensing |
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
Clear CMOS Switch |
1x Clear CMOS Switch |
Reset Button |
1x Reset Button |
Instant Reboot |
Support 0.2sec Instant Reboot Technology |
Watchdog Timer |
Software Programmable Supports 256 Levels System Reset |
Power
|
|
Power Button |
1x ATX Power On/Off Button |
Power Mode Switch |
Power Mode Switch |
Power Input |
9 - 48VDC, 3-pin Terminal Block |
Remote Power On/Off |
1x Remote Power On/O, 2-pin Terminal Block |
Remote Power LED |
1x Remote Power LED, 2-pin Terminal Block |
Total Power Budget |
120W |
Physical
|
|
Dimension ( W x D x H ) |
203 x 142 x 66.8 mm |
Weight Information |
1.74 KG |
Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal |
Mounting |
Wall / Side / DIN-RAIL / VESA Mount |
Physical Design |
- Fanless Design
- Cableess Design
- Jumper-less Design
- Unibody Design
|
Reliability & Protection
|
|
Reverse Power Input Protection |
Yes |
Over Voltage Protection |
- Protection Range: 51~58V
- Protection Type: shut down operating voltage, re-power on at the preset level to recover
|
Over Current Protection |
15A |
Surge Protection |
3.84 kV (impedance 12 ohm 1.2/50us waveform) |
CMOS Battery Backup |
SuperCap Integrated for CMOS Battery Maintenance-free Operation |
MTBF |
513,628 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
Operating System
|
|
Windows |
Windows® 10 |
Linux |
Supports by project |
Environment
|
|
Operating Temperature |
-40°C to 70°C
- PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
- With extended temperature peripherals; Ambient with air flow
- According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
|
Storage Temperature |
-40°C to 85°C |
Relative Humidity |
95%RH @ 70°C (non-Condensing) |
Shock |
MIL-STD-810G |
Vibration |
MIL-STD-810G |
EMC |
CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark |
Safety |
IEC/EN 62368-1 |
