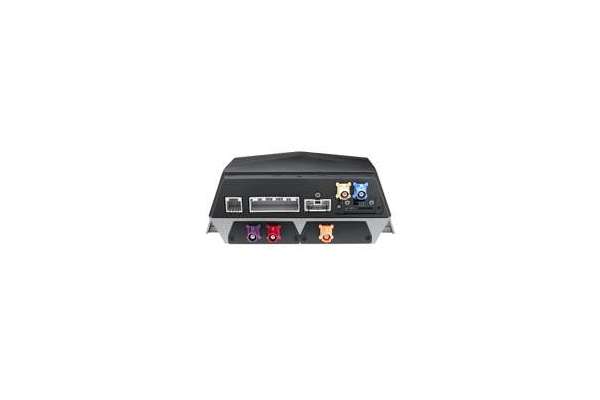

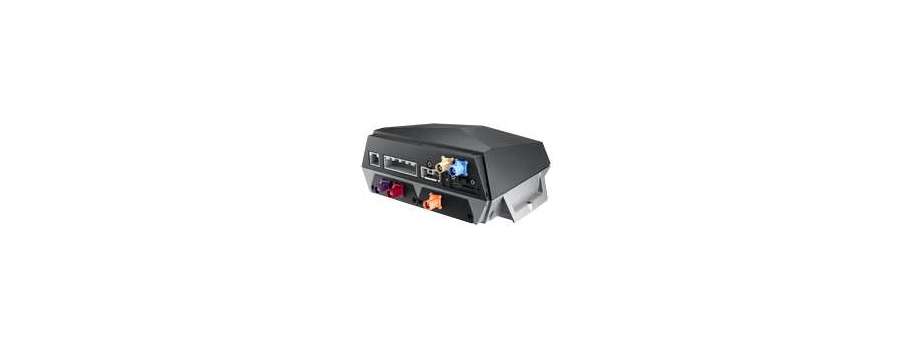

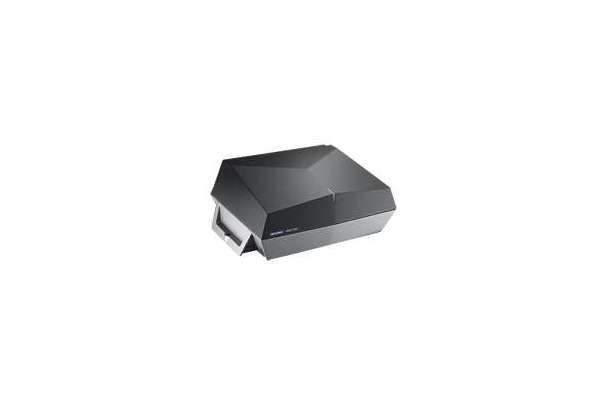

Compact In-Vehicle Computing Box TREK-530

Compact RISC-Based In-Vehicle Computing Box Advantech for Fleet Management TREK-530

Industrial Computer >> Vehicle Mounted Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

TREK-530 is a compact RISC-based in-vehicle computing box equipped with a Qualcomm® Snapdragon™ 212 quad-core ARM® Cortex™-A7 SoC, isolated DI/O, and two extension slots for optional expansion. Built-in WLAN, Bluetooth, and GNSS modules offer enhanced connectivity, while periodic, digital input, and WWAN suspend/resume functionality supports remote monitoring, making TREK-530 ideal for logistics and fleet management. Moreover, the system’s wide operating temperature range (-20 ~ 65 °C), support for 12/24V vehicle power, and compliance with MIL-STD-810G and 5M3 shock/vibration standards ensures TREK-530 can withstand operation in harsh environments.

  • Qualcomm® Snapdragon™ 212 quad-core ARM® Cortex™-A7 SoC with Android 6.0 Marshmallow
  • Built-in WLAN, Bluetooth, and GNSS (including BeiDou) modules with external antenna via FAKRA connector
  • Modularized design with two extension slots for optional expansion (such as an LTE 4G module) according to application requirements
  • Compatible with 12/24V vehicle power
  • Multiple isolated DI/O; DI supports dry/wet contact and vehicle speed sensor inputs for measuring distance
  • Compliant with MIL-STD-810G and 5M3 standards for shock/vibration tolerance
  • Equipped with Advantech’s industrial-grade Android Remote General Utilities System (ARGUS) OS for remote management

Price and avalability

Partnumber Description Price VAT incl Avalability
TREK-530-GWBADA20 TREK-530 Barebone w/ slot  26 232,8
TREK-530-LWBADA20 TREK-530 EU full config. w/ WLAN,BT,LTE,GNSS  38 979,8
TREK-530-LWBADB20 TREK-530 US full config. w/WLAN,BT,LTE,GNSS  38 979,8

Additional information

Core


Processor Qualcomm® Snapdragon™ 212 APQ8009 quad-core ARM® Cortex™-A7 (1.3 GHz) SoC
Memory 2 GB
Operating System Android 6.0 Marshmallow

Storage


eMCP 16 GB
SD Card 1 x Externally accessible MicroSD (push-push type) with cover

Sensor


G-Sensor Triple-axis accelerometer (±2g/4g/8g)

I/O


Standard I/O 1 x Micro USB OTG (Mini USB) with cover (for debugging) 1 x MicroSD slot with cover
Generic I/O (High-Density Connector)
  • 1 x Mic-In, 1 x Line-Out
  • 4 x Isolated DI (dry/wet contact)
  • 2 x Isolated DO (open-collector output with relay driver)
  • 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765; firmware configurable)
  • 1 x J1708 (J1587)
  • 1 x USB 2.0 Host
  • 1 x 4-wire RS-232
  • 1 x 4-wire RS-232/RS-485 (software configurable)
LAN 1 x LAN 10/100
LED Indicators 1 x Power
Buttons 1 x Reset button with cover

Wireless Communication


WLAN/Bluetooth IEEE 802.11 a/b/g/n dual band (2.4/5 GHz) and Bluetooth V4.1 Class 1 (with external antenna via FAKRA connector)
GNSS
Sensitivity GPS, GLONASS, and AGPS (BeiDou upon request) support (with external antenna via FAKRA connector)

System Power


Input Voltage Supports 12/24V vehicle power (9 ~ 32V DC input)
Intelligent Vehicle Power Management
  • Power on/off management (e.g., programmable ignition on/off delay)
  • RTC wake-up events
  • Power system protection
  • System monitoring and diagnostics (e.g., programmable vehicle battery protection with low voltage disconnect)

Extension Module


WWAN

Sierra Wireless MC7304 via extension module (EU)

- LTE: B1, B3, B7, B8, B20

Sierra Wireless MC7354 via extension module (US)

- LTE: B2, B4, B5, B13, B17, B25 (external antenna via FAKRA connector)

Mechanical


Mount Options 2 x M4 screw holes
Dimensions (W x D x H) 164.65 x 109.78 x 60 mm (6.48 x 4.32 x 2.36 in)
Weight 410g (0.903 lb)

Environment


Operating Temperature -20 ~ 65 °C (-4 ~ 149 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
IP Rating IP54 for I/O cover
Vibration/Shock MIL-STD-810G, EN60721-3 (5M3)
Vehicle Regulations E-mark (E13) (12/24 V system), ISO 7637-2, SAE J1455
Safety UL/cUL, CB
Certifications CE, FCC, CCC, PTCRB, verizon
