IP66 Computer WTP-8B66-15

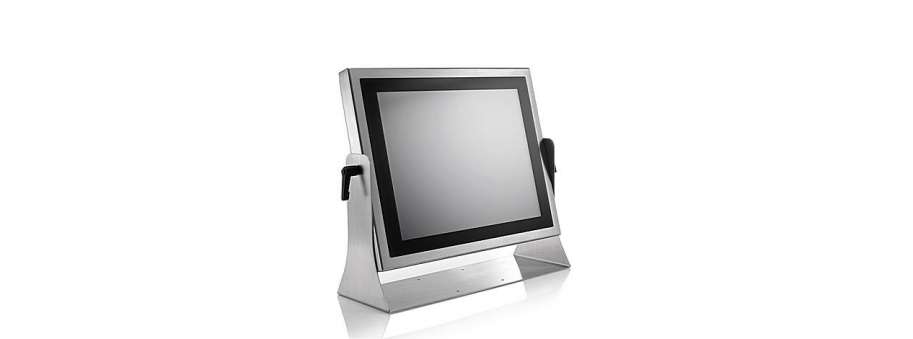

The protected Wincomm WTP-8B66 panel computer in the corrosion-proof IP66 case with 15 "or 19" touch screens

Industrial Computer >> Allround protected Panel PC

 Price and avalability

Manufacturer: Wincomm Corporation

Fully protected Wincomm WTP-8B66 panel computer in a stainless steel case has an IP66 degree of protection, a 4:3 resistive touchscreen of 15" (WTP-8B66-15) or 19" (WTP-8B66-15) diagonally, and is designed for automation of production in the food, processing and pharmaceutical industries.

LCD display with LED backlight and 5-wire resistive touch screen. The panel computer has special M12 protected input / output connectors.

  • IP66 protection against water and dust
  • Metal connectors M12 with IP67 protection for USB, COM, LAN and power
  • IP67 power supply included
  • High-quality 15” LCD panel with a resolution of 1024x768 or 19" with a resolution of 1280x1024
  • Resistive touch screen with a long service life or projective-capacitive multi-point (optional)
  • Corrosion-resistant casing approved for use in the food and pharmaceutical industry
  • Operating temperature range: -0 ° C ~ 40 ° C
  • Reliable performance due to passive cooling and low energy consumption
  • Intel Celeron N1900 processor
  • Built-in 2 GB DDR3L SO-DIMM and 320GB hard drive
  • Power supply in a wide voltage range of 9-36V (Optional)

Price and avalability

Partnumber Description Price VAT incl Avalability
WTP-8B66-15 Пaнельный компьютер 15" в корпусе из н/с с защитой IP66 Wincomm WTP-8B66-15 /0-40С/Intel Celeron J1900/2ГБ ОЗУ/320ГБ НЖМД/resistive touch/источник питания 60Вт в корпусе IP67/без предустановленной ОС  73 600,8
WTP-8B66-19 Пaнельный компьютер 19" в корпусе из н/с с защитой IP66 Wincomm WTP-8B66-15 /0-40С/Intel Celeron J1900/2ГБ ОЗУ/320ГБ НЖМД/resistive touch/источник питания 60Вт в корпусе IP67/без предустановленной ОС  82 773,6

Additional information

 LCD Panel Specification
Panel_Size 15"
Active Display Area 304.1 (H) x 228.1(V)
Pixel Pitch 0.297(H) x 0.297(W)
Panel_Display Resolution 1024 x 768
Panel_Contrast Ratio 700 : 1(typ.)
Display Color 16.2M
Panel_Brightness 250 cd/m (typ.)
Panel_Viewing Angle -70~70(H);-65~60(V)
 Mechanical and Environment
Power Input DC-IN (Lockable, Power Jack)
Dimension (W x H x D) 64.4 x 457.4 x 370 mm
 Power
Power Input 12V DC IN (Lockable Power Jack)
