Panel PC ViTAM-812

12.1" Aplex ViTAM-812 Stainless Steel IP66 / IP69K Panel PC with Intel Celeron J2930 Touch Screen

Industrial Computer >> Allround protected PC

 Price and avalability

Manufacturer: APLEX Technology

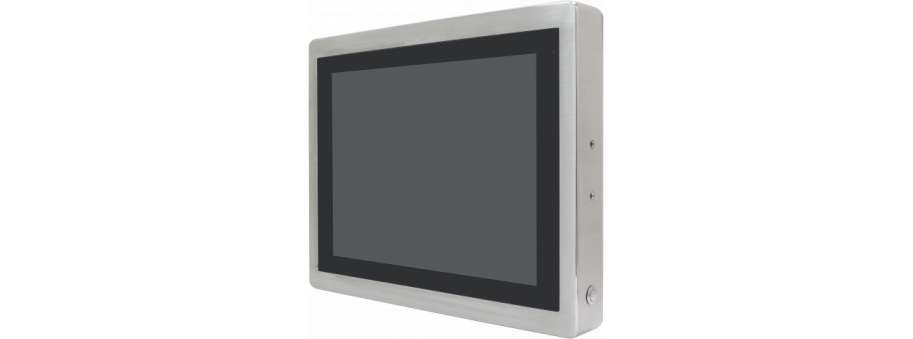

Fully protected panel computer Aplex ViTAM-812 in a stainless steel case has a degree of protection IP69K and is designed to automate production in the food, processing and pharmaceutical industries. The panel computer ViTAM-812 has special protected input / output connectors M12. 12.1" LCD display is supplied with a resistive, capacitive or projection touch screen.

  • IP66 / IP69K compliant protection
  • Stainless steel case approved for use in food and pharmaceutical industry
  • Operating temperature range: -20 ° C ~ 60 ° C
  • Reliable performance due to passive cooling and low energy consumption
  • Motherboard on Intel Celeron N2930 processor
  • Built-in 4 GB DDR3L SO-DIMM
  • Special flat front panel design for easy maintenance and cleaning
  • 3 types of touch screen to choose from

Price and avalability

Partnumber Description Price VAT incl Avalability
ViTAM-812G Панельный компьютер Aplex ViTAM 12.1" SVGA IP66/IP69K stainless steel panel panel pc, Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, protection glass, 9~36V DC power input with Adapter M12 USB Cable  75 144,0
ViTAM-812P Панельный компьютер Aplex ViTAM 12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter M12 USB Cable  81 096,0
ViTAM-812R Панельный компьютер Aplex ViTAM 12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter M12 USB Cable  77 004,0
TM-35A-M12-USBX2 Кабель к панельным компьютерам Aplex ViTAM TM-35A-M12-USBX2/12-08BFFM-SL7A01 8P(F) TO USB2.0 A(F) L=3m (USB 2.0 Y Cable)  0,00 Не доступно к заказу
TM-35A-M12-USB-3 Кабель к панельным компьютерам Aplex ViTAM TM-35A-M12-USB-3/12-08BFFM-SL7A01 8P(F) TO USB3.0 A(F) L=3m (USB 3.0 Cable)  4 612,8
TM-35A-M12-RJ Кабель к панельным компьютерам Aplex ViTAM TM-35A-M12-RJ/12-08BFFM-SL7A01 8P(F) TO RJ45(8P8C) L=3m (LAN Cable)  0,00 Не доступно к заказу
TM-35A-M12-COM Кабель к панельным компьютерам Aplex ViTAM TM-35A-M12-COM/12-08BFFM-SL7A01 8P(F) TO DB-9P(M) L=3m (COM Cable)  0,00 Не доступно к заказу

Additional information

CPU

Onboard Intel Celeron N2930(1.83GHz) Processor

System

ChipsetSoC

System

MemoryOnboard 4GB DDR 3L 1600 MHz/8GB (optional)

Power Consumption

TBD

USB

1 x M12 8-pin for USB 2.0 with waterproof cover and chain

Serial / Parallel

1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cover and chain

LAN

1 x M12 8pin for LAN with waterproof cover and chain

Power

1 x M12 3pin DC Power with waterproof cover and chain / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side

Storage Space



HDD

1 x 2.5" HDD/SSD

Movable device

1 x SD slot

Expansion



Expansion slot

1 x Mini PCIe slot for WIFI/BT (optional)

Display



LCD

 Size12.1" TFT-LCD

Max. resolution

800 x 600, 1024 x 768 (optional)

Max. color

262K, 16.2M (optional)

Luminance(cd/m²)

450, 500 (optional)

Viewangle(H°/V°)

160/150, 160/140 (optional)

Contrast

800:1 / 700:1 (optional)

Backlight lifetime(hrs)

50000, 30000 (optional)

Touch Screen(Option)



Touch Type

Without Touch, Only Glass with Anti-Reflection Coating

Interface

N/A

Light transmission(%)

Over 90%

Power



Power input

9~36V DC

Mechanical



Construction

Stainless steel enclosure

IP rating

IP66 / IP69K

Mounting

VESA 75 x 75, Yoke mount

Dimension(mm)

335 x 265 x 53

Net weight(Kgs)

TBD

Enviroment



Operating temperature(°C)

-20~60°C

Storage temperature(°C)

-30~70°C

Storage humidity

10 to 90% @ 40°C, non- condensing

Certification

CE / FCC CLASS A

Operating System Support

Windows 7 Embedded Enterprise,Windows Embedded Standard 7,Windows Embedded 8.1 Pro,Windows Embedded 8.1 Industry Pro,Windows 10 IoT 2016
