IP68 Mouse

Laser mouse X-Key for industrial production and medicine IP68

System Components >> Industrial keyboards and devices

 Price and avalability

Manufacturer: X-Key (China) Limited

SERIES NO.: X-MP5SD (X-MP51SD & X-MP52SD)

IP68 washable medical silicone Laser mouse with features a 5-buttons designed for right & left clicking and scrolling up and down just like a conventional mouse, with antimicrobial surface.

  • Laser IP68 mouse, 1200DPI resolutions.
  • Suitable for moist and dusty environments.
  • Three extra buttons for effortless scroll up, scroll down & scroll lock.
  • Enclosure: industrial silicone with antimicrobial material.

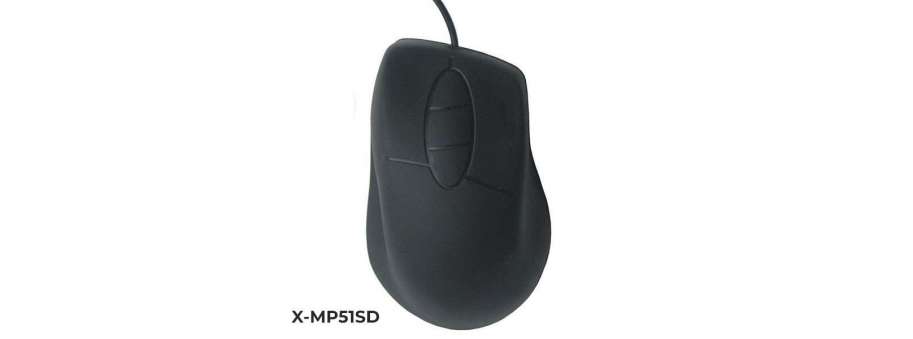

MODEL NO.: X-MP51SD

Dimensions: 130(L) x 80(W) x 48(H) mm

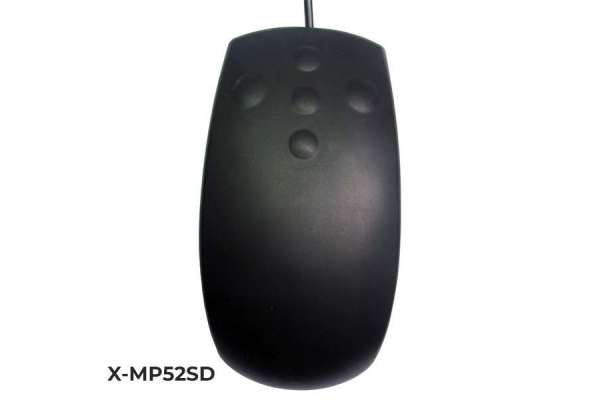

MODEL NO.: X-MP52SD

Dimensions: 115(L) x 68(W) x 42(H) mm

  • Laser IP68 mouse, 1200DPI resolutions.
  • Suitable for moist and dusty environments.
  • Three extra buttons for effortless scroll up, scroll down & scroll lock.
  • Special dura-coating for excellent mechanical and chemical resistance.
  • Enclosure: industrial silicone with antimicrobial material.

Price and avalability

Partnumber Description Price VAT incl Avalability
X-MP51SD IP68 Лазерна миша X-Key, з силіконовим антибактеріальним покриттям, 5 клавіш, 130(L) x 80(W) x 48(H) mm  1 627,9 Доступно
X-MP52SD IP68 Лазерна миша з силіконовим антибактеріальним покриттям, 5 клавіш, 115(L) x 68(W) x 42(H) mm  1 627,9 Доступно

Additional information

TECHNICAL SPECIFICATION

ITEM

SPECIFICATION

Mechanical

Key

5 keys

Key Travel

1.5 mm

Key switch lifespan

more than 10 Mio actuations

Actuation Force

0.6 N to 1.2 N

Dimension

130(L) x 80(W) x 48(H) mm (X-MP51SD) ;

115(L) x 68(W) x 42(H) mm (X-MP52SD)

G.W.:

0.35kg (X-MP51SD) ;

0.3kg (X-MP52SD)

Interface

PS2, USB are available.

Electrical

Power supply

5V DC+ 10%, keyboard interface

Protection level

IP68 dynamic, NEMA3

EMC Standard

EN55022(B)

Power consuming

≤1.0W(dynamic)

≤0.2W(static)

Contact Material

Gold/Carbon

Environmental

Operating temperature

-20°C-+ 60°C

Storage temperature

- 30°C-+ 70°C

Operating RH

30-90%

Atmospheric pressure

60-106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified.

MTBF

>50000h

MTTR

< 30min

OS

OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
