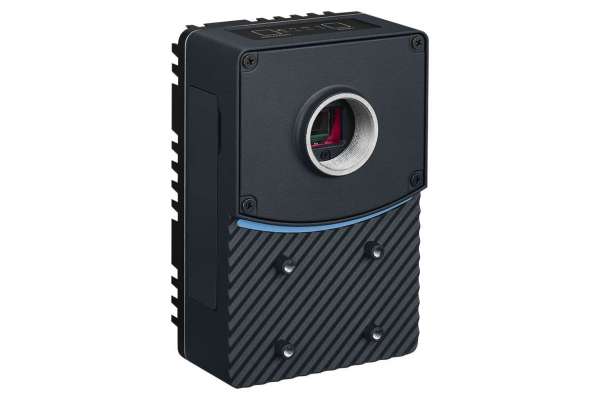

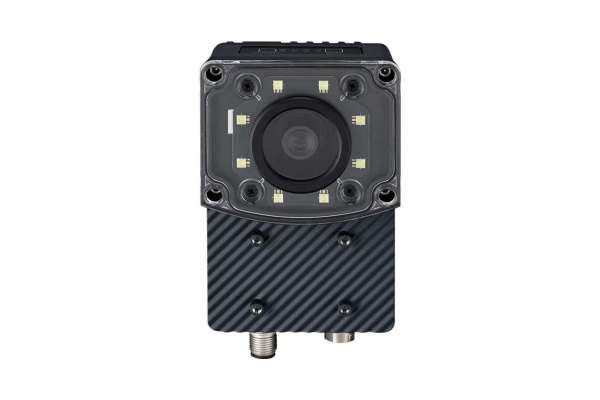

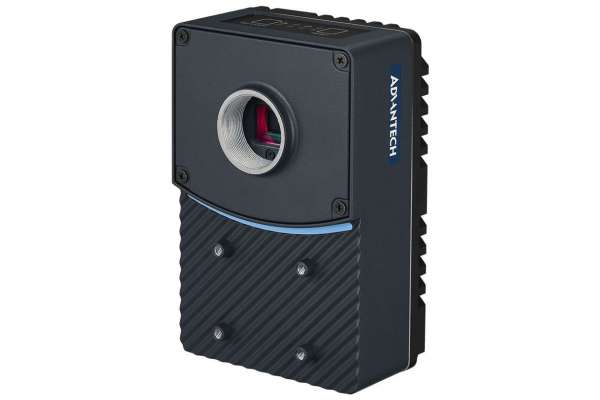

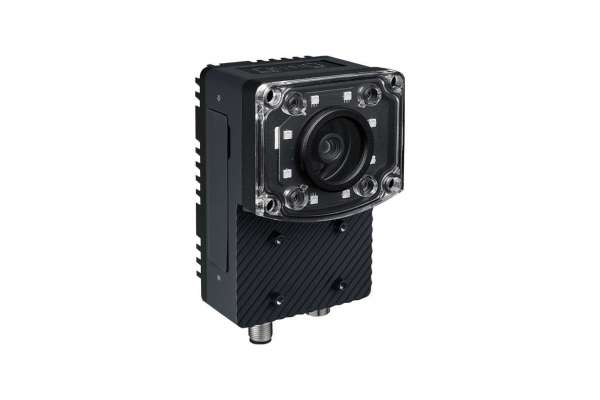

AI Camera NVIDIA Jetson Orin with SONY industrial grade image sensor Advantech ICAM-540
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICAM-540-3CN | 8MP кольорова камера Advantech з C-mount кріпленням та процесором Orin NX | 159 742,0 | |
| ICAM-540-30W | 8MP кольорова камера Advantech з S-mount, процесором Orin NX та 12mm об'єктивом | 161 032,0 | |
| ICAM-540-31W | 8MP кольорова камера Advantech з S-mount, процесором Orin NX та 4.4mm об'єктивом | 161 032,0 |
Advantech ICAM-540 series is a highly integrated Industrial AI Camera equipped with SONY industrial grade image sensor, multiple core ARM processors and NVIDIA® Jetson Orin™ system-on-module. Featuring CAMNavi SDK, HTML5 web based utility andNVIDIA Deepstream SDK, ICAM-540 series accelerates the development and deployment of cloud-toedge vision AI applications. The CAMNavi SDK uses Python language by default and is better adapted to image acquisition and AI algorithm integration. Meanwhile the HTML 5 web based utility can be used to setup the cameras and network configuration to lower the installation effort. The preloaded, optimized Jetpack board support package V4L2 and RTSP interface seamlessly connect to AI cloud services. Advantech ICAM-540 series is a compact and rugged industrial AI camera, and is ideal for a variety of Edge AI vision applications.
- 8MP 30 fps SONY industrial grade sensor
- Support variable and fixed focus lens
- Advanced LEDs illumination
- NVIDIA® Jetson Orin™ system-on-module
- Supports software, including NVIDIA DeepStream, QV4L2, and VLC utility
Additional information
|
|
ICAM-540-3CN / ICAM-540-30W / ICAM-540-31W |
| Image Sensor | |
| Sensor | SONY IMX334, 8MP@30fps |
| Size, Shutter | 1/1.8”, Rolling Shutter, Color |
Processor system |
|
| CPU/GPU | NVIDIA Orin NX CPU: 6-core Cortex A78AE ARM® v8.2 (64-bit) | 2x clusters (4x 256KB L2 +2MB L3) + 4MB LLC | L3 Cache: 4 MB | Max. 2 GHz GPU: 1024 cores | 32 Tensor |
| Memory/ Storage | 8 GB 128-bit LPDDR5 / 256GB NVMe |
Optical |
|
| Lens |
|
| LED illumination |
|
Synchronization |
Hardware trigger / software trigger / free-run |
| HW ISP | Color debayering, sharpness, white balance, dark noise correction and brightness |
I/O |
|
| Peripheral | 1 x USB 3.0 Type C, 1 x USB 3.0 Type A |
| Digital I/O | 1x trigger in, 2 x Inputs, 1 x Outputs |
| Display | 1 x HDMI 2.0 |
LAN |
1 x 10/100/1000 Base-T |
| Power Requirements | 19~24VDC Max: 18W, typical 15W (Power mode 2) |
| Dimensions |
78mm (W) x 121mm (H) x 49.31 mm(D) (for ICAM-540-3CN) 79.5mm (W) x 121mm (H) x 62.9 mm(D) (for ICAM-540-30W / ICAM-540-31W) |
| Environment | 0-45° C, 5Grms |
| Certification |
CE/FCC IP 40 (for ICAM-540-3CN) CE/FCC IP 54 (for ICAM-540-30W / ICAM-540-31W) |
| Software support | |
| OS | Ubuntu 20.04, JetPack 5.1.1 or above |
| Software | NVIDIA Deepstream SDK |
| SDK/Utiltiy | CAMNavi SDK, Web based camera utility, IP configure tool, NVIDIA DeepStream SDK & example, QV4L2 and VLC utility. |
