Intel® Wireless 6E AX210 (Vpro) M.2 2230 A-E Key module with cables and antennas Advantech AIW-166K4

Price and avalability

Partnumber Description Price VAT incl Avalability
AIW-166K4 6E AX210 (Vpro) -40~85 degree wireless kit  6 149,2
AIW-166K3 6E AX210 (no.vpro), -40~85degree wireless kit  5 406,2
AIW-166K2 AX210 6E 802.11ax+BT5.2 vpo module+antenna+cable  3 894,3
AIW-166K1 AX210 6E 802.11ax+BT5.2 module+antenna+cable  3 155,7

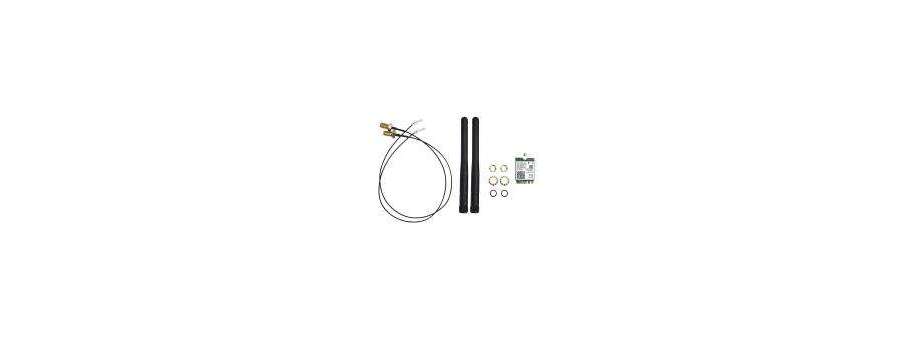

Advantech's AIW-166K4 wireless kit comprises a module, 2 cables, and 2 antennas. It facilitates easy assembly and integration

  • IEEE 802.11 ax/ac/a/b/g/n (2.4GHz/5GHz/6GHz) + Bluetooth 5.2
  • 2Tx/2Rx
  • WPA2*, WPA3*
  • 802.1x EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')
  • Supports wide operating temperatures (-40 ~ 85 °C/-40 ~ 185 °F)
  • Supports Windows 10*, Linux*, and Chrome OS*
  • Wi-Fi 6 technology with 1024QAM and 160Mhz channels

Additional information

Main Chipset Intel 6E AX210 (Vpro)
Tx/Rx 2Tx/ 2Rx
IEEE WLAN Standard IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax
Bluetooth® Bluetooth® 5.2
Form Factor M.2 2230, A-E Key card
Interface Wi-Fi: PCI-E, Bluetooth: USB
Operation Voltage 3.3V
Security

WPA2*; WPA3*

Authentication Protocols 802.1x EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')

Encryption 128-bit AES-CCMP, 56-bit AES-GCMP

O.S Supported Windows 10*, Linux*, Chrome OS*
Operating temperature -40 ~ 85 °C/-40 ~ 185 °F
Dimensions (H x W x D) 22 x 30 x 2.4mm / 0.86 x 1.18 x .09 in
